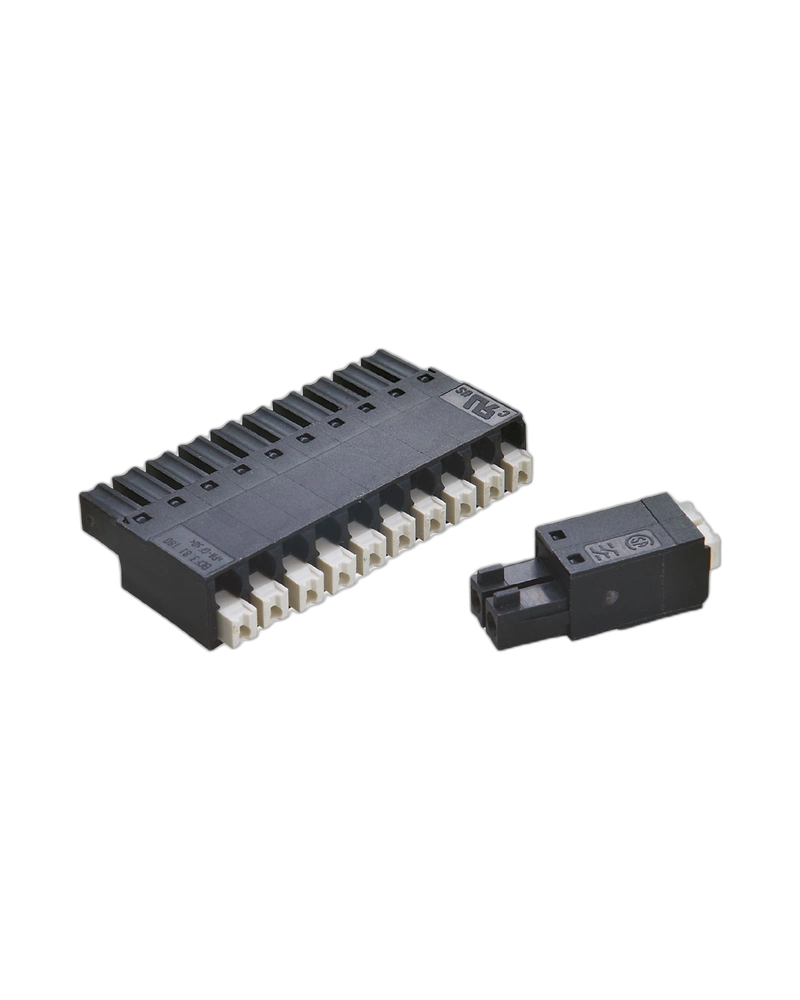

The IFM E70431 is a five-piece cage clamp accessory designed for AC2752 and AC2753 PCB modules. It provides a secure and practical connection method for compatible circuit-board modules. The clamp uses a durable PA66 GF30 housing with tin-plated copper-alloy current-carrying parts. Its compact construction supports reliable wiring in industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E70431 is specifically designed for use with IFM AC2752 and AC2753 PCB modules. It provides the required cage-clamp connection arrangement for compatible module installations. The accessory helps create a secure electrical connection without complicated wiring procedures. It is suitable for industrial control and AS-i-related applications.
The cage clamp design provides reliable wire retention inside the compatible PCB module. It supports practical installation and helps maintain a stable electrical connection during operation. The connection mechanism is suitable for repeated wiring and maintenance activities. This makes it useful for modular industrial control systems.
The housing is made from PA66 GF30 material, providing good mechanical strength for industrial use. The current-carrying parts are manufactured from tin-plated copper alloy for dependable electrical conductivity. The combination provides a robust solution for PCB-based connection requirements. Its compact construction allows efficient use of installation space.
The E70431 supports cable cross-sections from 0.14 to 1.5 mm², corresponding approximately to AWG 26...16. This allows the clamp to accommodate a useful range of industrial wiring sizes. The five-piece pack provides sufficient components for the specified compatible module connection arrangement. It is a practical accessory for replacement or new installations.
Cage clamp design
Designed for AC2752 / AC2753 PCB modules
5-piece pack
10-pole and 2-pole cage-clamp arrangement
PA66 GF30 housing
Tin-plated copper-alloy current-carrying parts
Supports 0.14...1.5 mm² cable
Suitable for AWG 26...16
Compact construction
Reliable wire retention
Easy installation
Suitable for industrial automation
PCB module wiring
AS-Interface systems
Industrial automation
Control cabinet installations
Modular control systems
Machine automation
Electrical connection assemblies
PCB-based automation equipment
| Specification | Details |
|---|---|
| Product Code | E70431 |
| Product Type | Cage Clamp |
| Application | AC2752 / AC2753 PCB modules |
| Pack Quantity | 5 pieces |
| Clamp Arrangement | 1 × 10-pole, 1 × 2-pole |
| Housing Material | PA66 GF30 |
| Current-Carrying Material | Copper alloy, tin-plated |
| Cable Cross Section | 0.14...1.5 mm² |
| AWG Range | AWG 26...16 |
| Weight | Approx. 42 g |
| Installation | PCB module connection |
| Application Area | Industrial automation |
