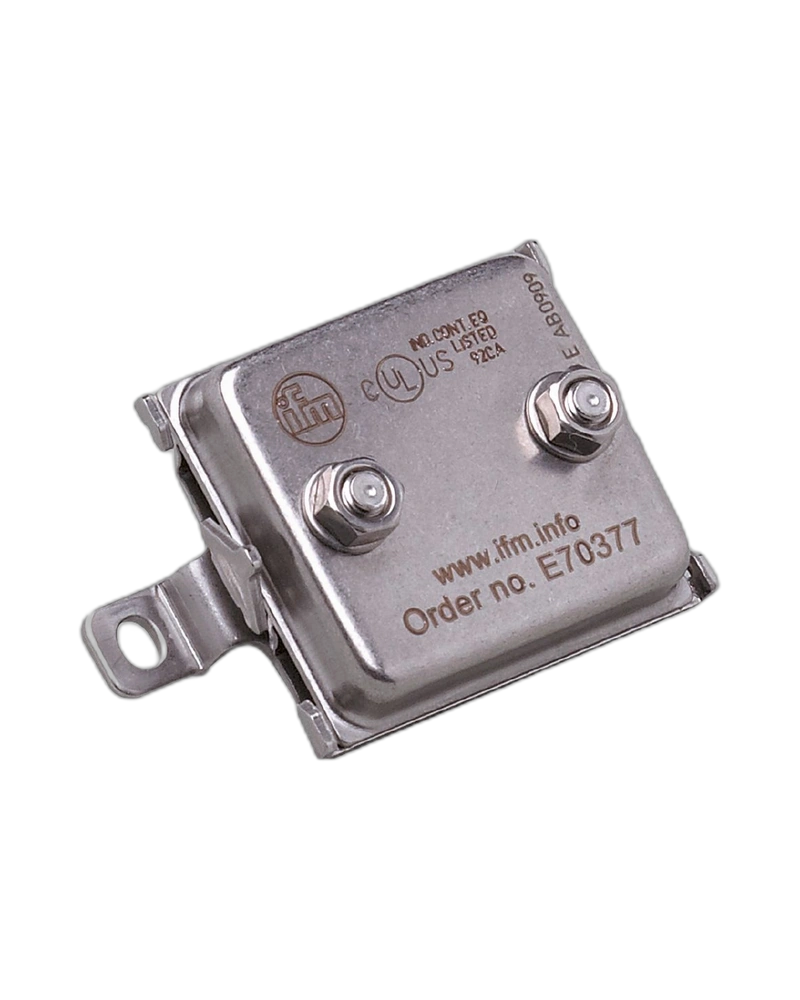

The IFM E70377 is an AS-Interface flat cable splitter designed for ProcessLine applications. It provides reliable branching of the yellow AS-i flat cable and supports high current distribution. The stainless-steel construction and IP67, IP68 and IP69K protection make it suitable for demanding environments. It is especially useful for hygienic and wet industrial installations
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E70377 is a robust FCE splitter designed for distributing AS-i connections in ProcessLine installations. Its design provides convenient field-level branching from the AS-i flat cable.
The splitter uses an AS-i electrical design and supports a maximum total current load of 8 A. The two cable paths are designed for reliable electrical distribution in suitable installations.
The housing uses stainless steel 316L / 1.4404, with FPM sealing at contact pins and an EPDM O-ring. The high protection rating supports hygienic and wet-area applications.
The E70377 is suitable for food-industry equipment, wet industrial areas, ProcessLine automation and AS-Interface distribution applications.
FCE Splitter ye/ye ProcessLine
AS-Interface flat cable splitter
8 A maximum current load
Stainless-steel 316L housing
FPM contact-pin gasket
EPDM O-ring
IP67 protection
IP68 protection
IP69K protection
Suitable for hygienic and wet areas
Food and beverage automation
Hygienic machinery
ProcessLine installations
AS-Interface networks
Industrial automation
Wet-area equipment
Field distribution systems
| Specification | Details |
|---|---|
| Product code | E70377 |
| Product type | AS-Interface flat cable splitter |
| Design | FCE Splitter ye/ye ProcessLine |
| Electrical design | AS-i |
| Maximum current load | 8 A |
| Ambient temperature | -30 °C to +80 °C |
| Protection rating | IP67 / IP68 / IP69K |
| Housing material | Stainless steel 316L / 1.4404 |
| Contact gasket | FPM |
| O-ring | EPDM |
| Pack quantity | 1 piece |
| Weight | Approx. 101.5 g |
