The IFM E70350 is a jumper cable designed for reliable valve connections in industrial automation systems. It combines an M12 connection with a valve plug for convenient field installation. The cable supports 24 V AC/DC operation and includes LED indication and overvoltage protection. Its robust construction is suitable for demanding industrial environments
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E70350 provides a practical connection solution between M12-based automation wiring and valves using a Type A valve plug. Its compact cable assembly supports dependable electrical connection in industrial equipment.

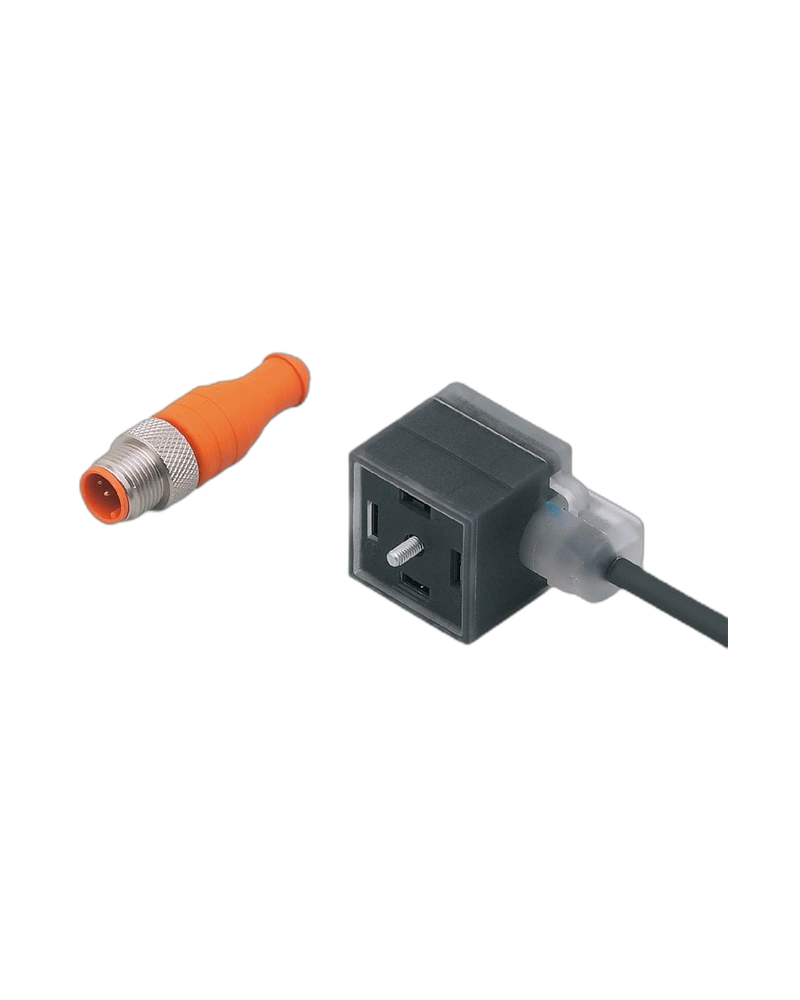

The cable features an M12 plug and a Type A valve plug according to DIN EN 175301-803. The 2 m PUR/PVC cable uses gold-plated M12 contacts and nickel-plated valve-plug contacts for reliable connectivity.
The cable is designed for industrial environments with an IP67 protection rating and an operating temperature range of -25 °C to +90 °C. Its silicone-free and halogen-free construction supports reliable installation in automation applications.
The E70350 is suitable for connecting valves, actuators and automation components where a reliable 24 V AC/DC connection and clear LED indication are required.
M12 plug with valve plug connection
2 m cable length
24 V AC/DC operating voltage
Type A valve plug
Integrated green power LED
Freewheeling diode for overvoltage protection
IP67 protection rating
PUR/PVC cable construction
Gold-plated M12 contacts
Silicone-free and halogen-free design
Industrial automation
Valve control systems
Pneumatic equipment
Actuator connections
Machine control panels
Factory automation
Industrial field installations
| Specification | Details |
|---|---|
| Product code | E70350 |
| Product type | Jumper cable with valve plug |
| Model | VSTGH050MSS0002B03VDAA041--S |
| Operating voltage | 24 V AC/DC |
| Cable length | 2 m |
| Cable cross-section | 3 × 0.5 mm² |
| Protection rating | IP67 |
| Temperature range | -25 °C to +90 °C |
| Electrical design | AC/DC |
| Overvoltage protection | Freewheeling diode |
| LED | Green power LED |
| Cable material | PUR/PVC |
| M12 contacts | Gold-plated |
| Valve plug contacts | Nickel-plated brass |
