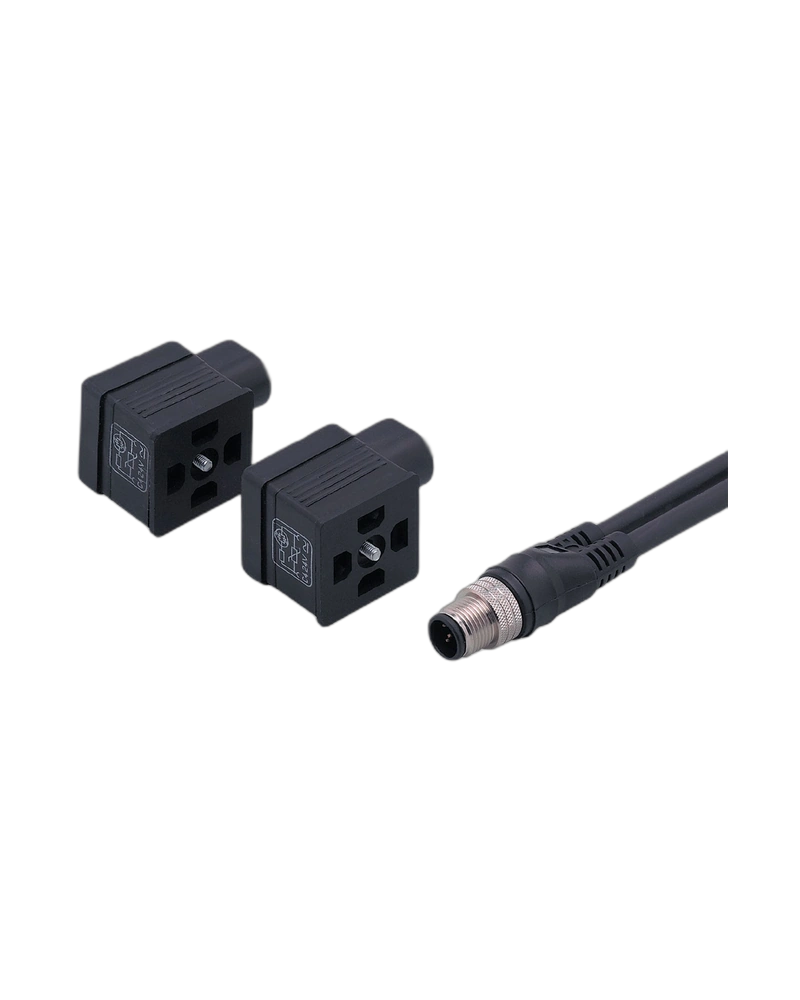

The IFM E70203 is a Y-jumper with valve plugs designed for reliable connection of valves in industrial automation systems. It combines one straight A-coded M12 plug with two angled Type A DIN valve connections. The 1 m halogen-free PUR cable, robust TPU construction and IP65 protection make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E70203 is a Y-jumper connection cable designed to simplify the connection of two compatible valve devices to an automation system. Its integrated Y-configuration provides a practical and organized connection solution for industrial field installations.
The cable features one straight 5-contact A-coded M12 plug and two angled Type A DIN valve connectors. The connector bodies are made from TPU, while the locking components are made from nickel-plated brass for secure industrial connections.
The E70203 uses a 1 m black PUR cable with a 3 × 0.5 mm² conductor configuration. The cable is halogen-free and has a diameter of approximately 4.8 mm. The IP65 protection rating supports reliable operation in demanding industrial environments.
Designed for 10–30 V DC operation, the E70203 is suitable for factory automation, machine tools and industrial valve applications. Its -25 °C to +90 °C operating temperature range and robust construction support reliable performance across a wide range of industrial conditions.
Y-jumper with valve plug
One straight A-coded M12 plug
Two angled Type A DIN valve connectors
5-contact M12 connection
1 m PUR cable
3 × 0.5 mm² cable construction
Halogen-free cable
TPU moulded connector bodies
Nickel-plated brass locking components
10–30 V DC operating voltage
IP65 protection rating
Two yellow switching-status LEDs
Wide operating temperature range
Overvoltage protection with VDR
Industrial automation systems
Factory automation
Machine tools
Industrial valve connections
Control systems
Field wiring
Sensor and actuator connections
Automation machinery
Industrial equipment
Applications in demanding industrial environments
| Specification | Details |
|---|---|
| Product Code | E70203 |
| Model | YVDAA042--S0001H03STGH050MSS |
| Product Type | Y-jumper with valve plug |
| Connector | 1 × M12, straight |
| Coding | A-coded |
| Valve Connector | 2 × Type A DIN, angled |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Construction | 3 × 0.5 mm² |
| Cable Diameter | 4.8 mm |
| Cable Colour | Black |
| Cable Type | Halogen-free |
| Electrical Design | DC |
| Operating Voltage | 10–30 V DC |
| Overvoltage Protection | Yes, VDR |
| Current Consumption | < 47 mA |
| Protection Rating | IP65 |
| Ambient Temperature | -25 °C to +90 °C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Status Indication | 2 × yellow LED |
| Design | Straight / angled |
| Weight | 183.5 g |
| Pack Quantity | 1 piece |
| Items Supplied | 2 screws, 2 labelling panels |
| Application | Industrial applications / factory automation |
:::
