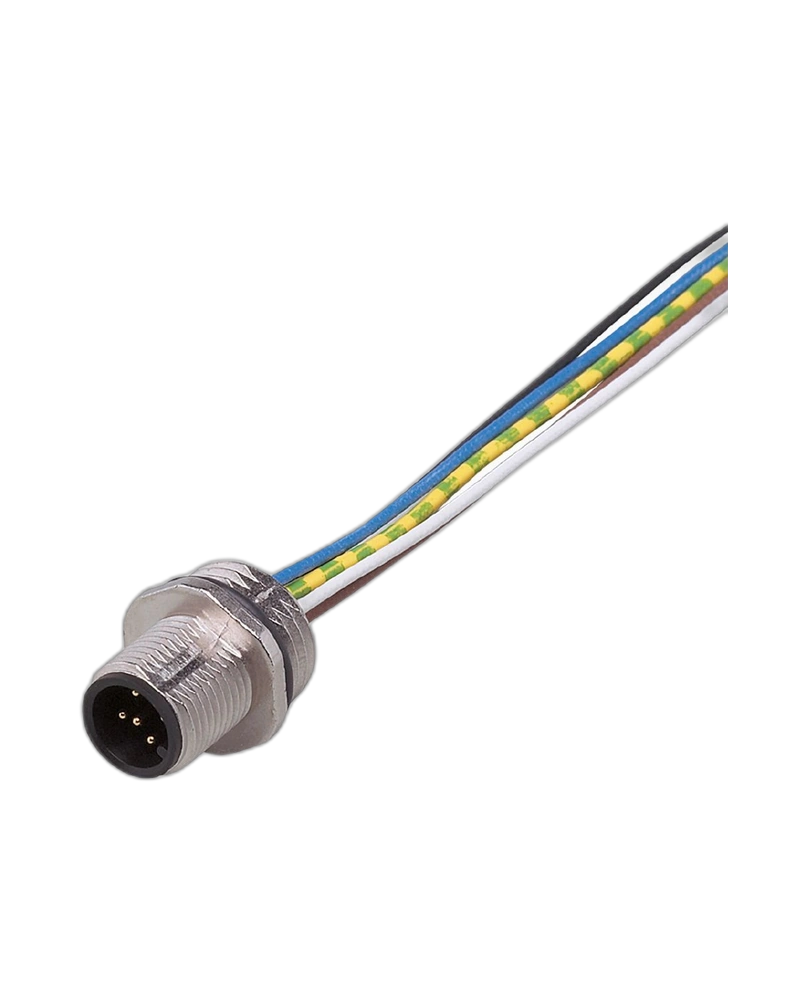

The IFM E70190 is a robust adapter plug designed for reliable M12 connections through equipment and enclosure walls. It combines a straight A-coded M12 connector with a 0.5 m PVC cable and durable diecast zinc construction. With IP68 protection, it is suitable for demanding industrial automation and electrical installation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E70190 is an adapter plug designed to provide a practical M12 connection through compatible equipment housings and enclosure walls. Its compact design supports easy installation where reliable panel or bulkhead connectivity is required.
The adapter features a straight A-coded M12 connector with five contacts and a 0.5 m PVC cable. The cable contains 4 × 0.25 mm² conductors plus 1 × 0.5 mm² conductor, providing a practical connection arrangement for compatible industrial devices.
The E70190 features a robust diecast zinc housing designed for demanding industrial environments. Its IP68 protection rating helps protect the connection against dust and water ingress, while the -20 °C to +85 °C ambient temperature range supports reliable operation across varied conditions.
The E70190 is suitable for industrial automation equipment, control cabinets, machine installations and electrical enclosures where an M12 connection needs to be routed through a panel or housing wall. Its secure construction supports dependable field connectivity.
Adapter plug design
Straight M12 connector
A-coded connector
5 electrical contacts
0.5 m PVC cable
4 × 0.25 mm² + 1 × 0.5 mm² cable construction
Diecast zinc housing
PG9 mounting thread
IP68 protection rating
Operating temperature -20 °C to +85 °C
Operating voltage below 125 V AC/DC
Compact bulkhead connection design
Industrial automation systems
Control cabinets
Electrical enclosures
Machine installations
Industrial field devices
Sensor connections
Automation equipment
Panel-mounted connections
M12 connection systems
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | E70190 |
| Model | ESTGH050ZDS00,5E05 (PG9) |
| Product Type | Adapter plug / Bulkhead connector |
| Connector | 1 × M12, straight |
| Coding | A-coded |
| Number of Contacts | 5 |
| Cable Length | 0.5 m |
| Cable Material | PVC |
| Cable Construction | 4 × 0.25 mm² + 1 × 0.5 mm² |
| Mounting Thread | PG9 |
| Housing Material | Diecast zinc |
| Operating Voltage | < 125 V AC/DC |
| Protection Rating | IP68 |
| Ambient Temperature | -20 °C to +85 °C |
| Dimensions | 18 × 18 × 20 mm |
| Weight | 19.9 g |
| O-ring | Included |
| Pack Quantity | 1 piece |
| Connector Application | M12 bulkhead connection |
| Application | Industrial automation and enclosure connections |
