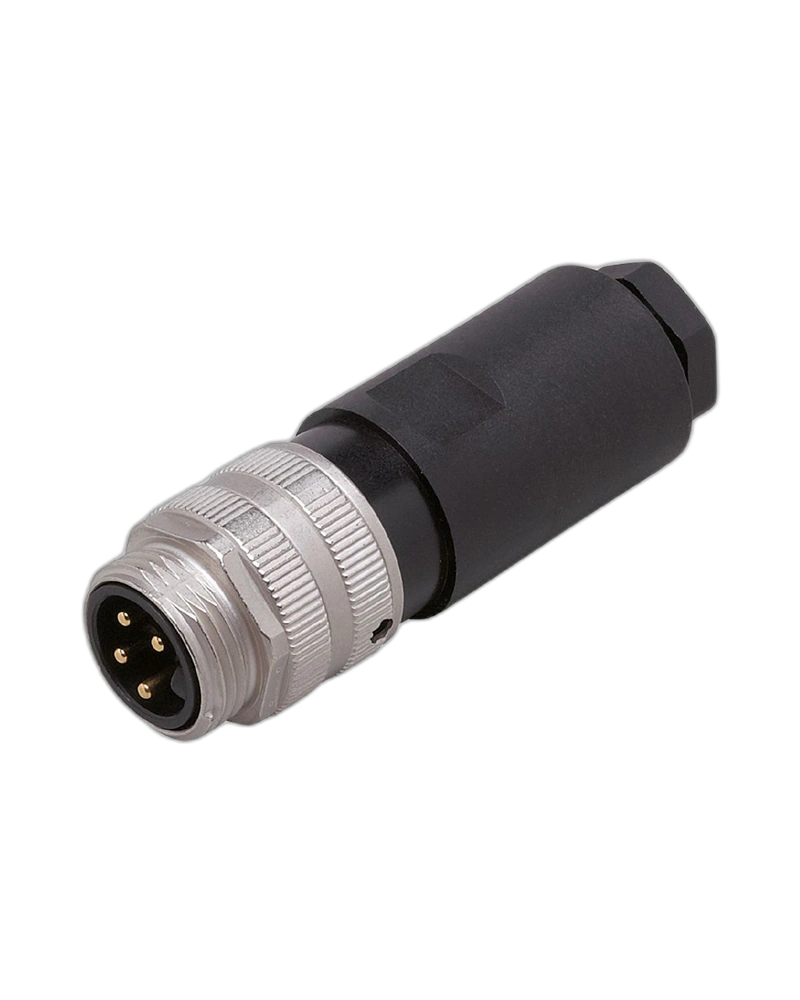

The IFM E70176 is a robust wirable plug designed for reliable electrical connections in industrial automation systems. It features a straight 1 x 7/8" connector with screw terminals and a durable PBT moulded body. With IP67 protection and a wide operating temperature range, it is suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E70176 is a male wirable plug designed for creating secure electrical connections in industrial automation and field applications. Its practical screw-terminal design allows compatible cables to be connected directly for dependable installation.
The plug features a straight 1 x 7/8" connector with a PBT moulded body and a diecast zinc locking nut. Screw terminals support conductors up to 1.5 mm², while the cable sheath diameter is suitable for 8 to 10 mm cables.
The E70176 is designed for reliable operation in demanding industrial environments. Its IP67 protection rating helps protect the connection against dust and temporary water exposure, while the -25 °C to +85 °C ambient temperature range supports dependable operation across a wide range of conditions.
The E70176 is suitable for industrial automation equipment, field devices, sensors, actuators and control installations requiring a robust 7/8" electrical connection. Its compact construction and secure locking arrangement support reliable installation in industrial machinery.
Wirable plug design
Straight 1 x 7/8" connector
Secure screw-terminal connection
PBT moulded body
Diecast zinc locking nut
Supports conductors up to 1.5 mm²
Cable sheath diameter 8 to 10 mm
IP67 protection rating
Operating temperature -25 °C to +85 °C
Operating voltage below 300 V AC/DC
Maximum total current load 9 A
Pin 4 available as auxiliary connection
Compact industrial construction
Industrial automation systems
Factory automation equipment
Industrial field devices
Sensor connections
Actuator connections
Machine control systems
Control panels
Industrial electrical installations
Automation machinery
Field connection applications
| Specification | Details |
|---|---|
| Product Code | E70176 |
| Model | SSTGB040ZDSFKPG |
| Product Type | Wirable plug |
| Connector | 1 x 7/8", straight |
| Connection | Screw terminals |
| Maximum Conductor Size | 1.5 mm² |
| Cable Sheath Diameter | 8–10 mm |
| Operating Voltage | < 300 V AC/DC |
| Maximum Total Current Load | 9 A |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +85 °C |
| Moulded Body Material | PBT |
| Locking Nut Material | Diecast zinc |
| Dimensions | 27 × 27 × 86 mm |
| Weight | 49.3 g |
| Auxiliary Connection | Pin 4 |
| Pack Quantity | 1 piece |
| Application | Industrial automation and electrical connection applications |
