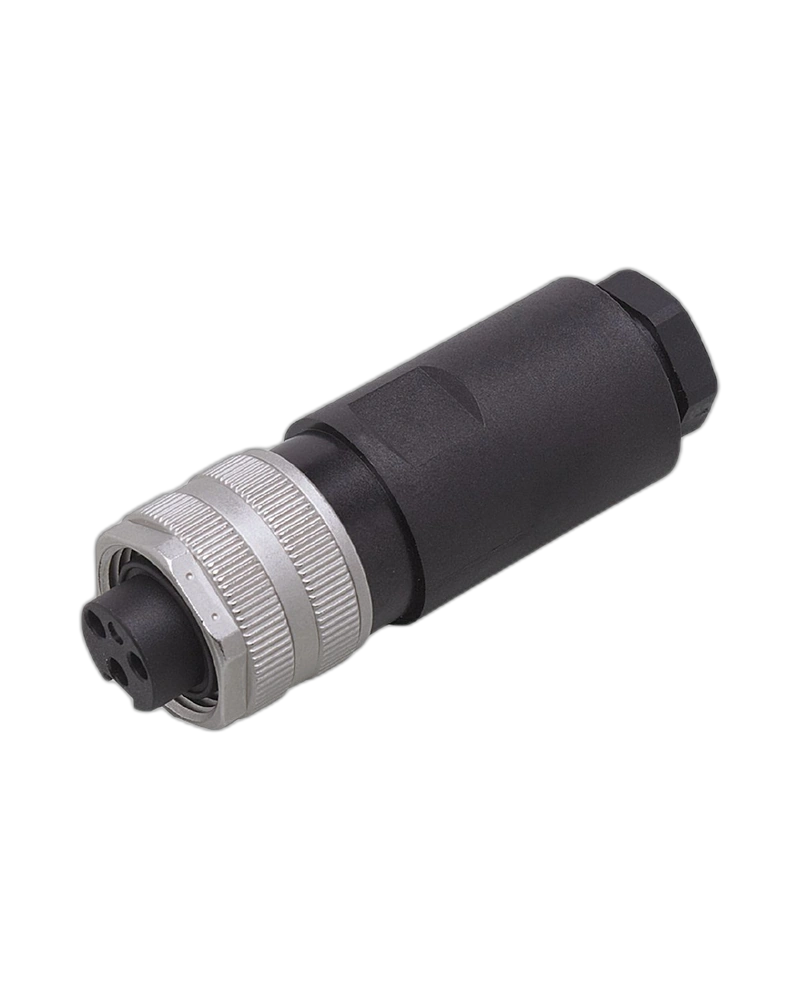

The IFM E70170 is a robust wirable socket designed for reliable electrical connections in industrial automation systems. It features a straight 7/8" connector with three contacts and gold-plated contacts for dependable signal transmission. Its IP67 protection and durable PBT construction make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The E70170 is a wirable socket designed for connecting compatible industrial automation components and field devices. Its practical screw-terminal connection supports secure cable installation and reliable electrical connectivity in industrial applications.
Connector and Electrical Design
The socket features a straight 1 x 7/8" connector with three contacts and gold-plated contacts for reliable electrical connections. Screw terminals support cable conductors up to 1.5 mm² and compatible cable sheath diameters from 8 to 10 mm.
Industrial Durability
The E70170 features a robust PBT moulded body with a diecast zinc locking nut. Its IP67 protection rating provides reliable protection against dust and temporary water exposure. The wide operating temperature range supports dependable performance in demanding industrial environments.
Application Performance
The E70170 is suitable for industrial automation and factory automation applications where dependable field connections are required. Its compact construction, secure locking mechanism and high protection rating make it suitable for connecting sensors, actuators and compatible automation equipment.
Key Features
Wirable socket design
Straight 1 x 7/8" connector
3 electrical contacts
Gold-plated contacts
Secure screw-terminal connection
Supports conductors up to 1.5 mm²
Cable sheath diameter 8 to 10 mm
PBT moulded body
Diecast zinc locking nut
IP67 protection rating
Operating temperature -25 °C to +85 °C
Maximum total current load 12 A
Operating voltage below 300 V AC/DC
Applications
Industrial automation systems
Factory automation equipment
Industrial field devices
Sensor connections
Actuator connections
Machine control equipment
Control panels
Industrial electrical installations
Automation machinery
Field connection applications
Additional Information / Specification
| Specification | Details |
|---|---|
| Product Code | E70170 |
| Model | SDOGB030ZDSFKPG |
| Product Type | Wirable socket |
| Connector | 1 x 7/8", straight |
| Number of Contacts | 3 |
| Contact Material | Gold-plated |
| Operating Voltage | < 300 V AC/DC |
| Maximum Total Current Load | 12 A |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +85 °C |
| Connection | Screw terminals |
| Maximum Conductor Size | 1.5 mm² |
| Cable Sheath Diameter | 8–10 mm |
| Moulded Body Material | PBT |
| Locking Nut Material | Diecast zinc |
| Dimensions | 27 × 27 × 83 mm |
| Weight | 54.2 g |
| Pack Quantity | 1 piece |
| Application | Industrial applications / factory automation |
