The E61446 spring arm is designed for use with encoders featuring a clamp flange. It provides a stable mechanical mounting arrangement for encoder applications. The spring-loaded design supports reliable mechanical positioning during operation. It is suitable for industrial automation and rotary measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview

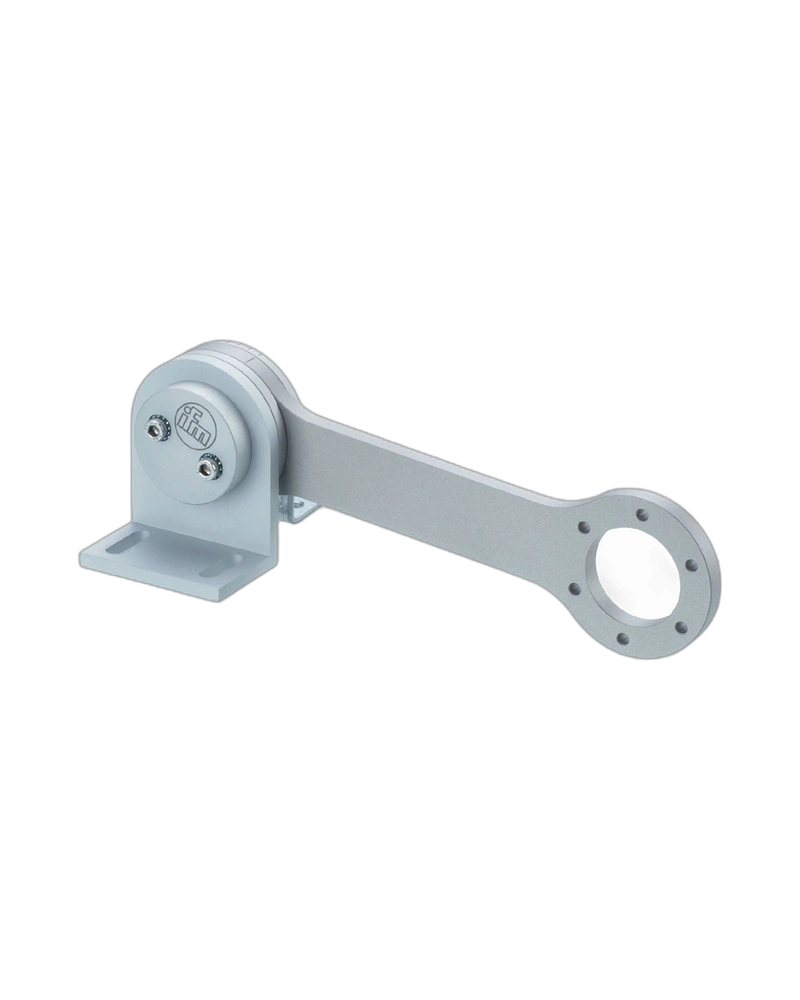

The E61446 is an encoder spring arm designed to provide mechanical support for compatible encoder installations. It is intended for encoder applications requiring a suitable spring-arm mounting arrangement.
Design and Functionality
The spring arm can be mounted from both sides and is designed to accommodate encoder mounting requirements. Its mechanical construction supports stable installation while allowing the encoder assembly to operate within the intended application arrangement.
Mechanical Construction
The spring arm has an external diameter of 230 mm and dimensions of approximately 230 × 65.9 × 75 mm. It uses aluminium with an anodised finish and stainless steel spring material. The specified ambient operating temperature is -30 to 60 °C.
Industrial Applications
The E61446 is suitable for encoder installations in industrial automation, rotary motion measurement, machine control, and equipment monitoring systems.
Key Features
Designed for encoders with clamp flange
Spring-arm mounting arrangement
Can be mounted from both sides
Aluminium anodised construction
Stainless steel spring
Ambient temperature range of -30 to 60 °C
External diameter of 230 mm
Suitable for industrial encoder installations
Applications
Industrial automation
Rotary motion measurement
Encoder mounting
Machine control systems
Position monitoring
Speed measurement systems
Industrial machinery
Automation equipment
| Specification | Details |
|---|---|
| Product Code | E61446 |
| Product Type | Spring Arm for Encoders |
| Model Description | ENCODER SPRING ARM 170 |
| Application | Encoder mounting |
| Suitable For | Encoders with clamp flange |
| Mounting | Both sides |
| Dimensions | 230 × 65.9 × 75 mm |
| External Diameter | 230 mm |
| Material | Anodised aluminium |
| Spring Material | Stainless steel |
| Ambient Temperature | -30 to 60 °C |
| Tightening Torque | 4.3 Nm |
| Weight | 695.6 g |
