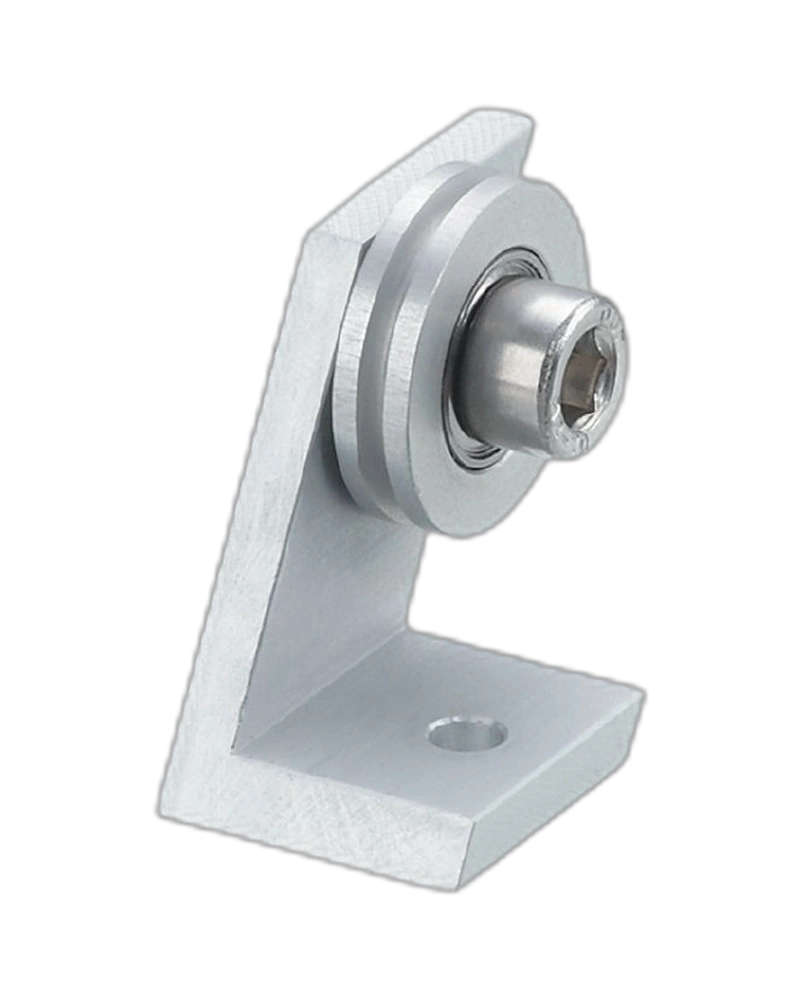

The IFM E61445 is a draw-wire pulley designed to redirect cables used with compatible draw-wire mechanisms. It supports wire diameters from approximately 0.8 to 1 mm and provides a compact solution for flexible cable routing. The anodised aluminium construction provides a lightweight and durable mechanical design. It is suitable for encoder-based linear measurement systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E61445 pulley is designed to redirect draw wires where the installation layout requires a change in cable direction. This provides greater flexibility when positioning draw-wire mechanisms on machinery. It helps route the wire efficiently while maintaining a suitable mechanical path. The pulley is intended for compatible draw-wire applications.
The pulley has a compact form factor suitable for industrial machine installations. Its dimensions allow it to be integrated into areas where installation space is limited. The design supports practical cable routing around machine structures. This makes it useful for customized draw-wire installations.
The E61445 is manufactured using anodised aluminium, providing a lightweight and durable mechanical construction. The material is suitable for industrial automation accessories where low weight and mechanical durability are important. The pulley is designed for reliable repeated cable movement.
The pulley can be used as an accessory with compatible draw-wire mechanisms. It allows the cable path to be adapted to the physical layout of the machine. This can simplify installation where a direct cable path is not possible. Proper wire diameter and compatibility should be confirmed before use.
Designed for draw-wire mechanisms
Supports wire diameters of approximately 0.8–1 mm
Compact pulley design
Anodised aluminium construction
Lightweight mechanical accessory
Supports flexible wire routing
Suitable for restricted installation spaces
Easy integration with compatible draw-wire systems
Draw-wire encoder systems
Linear position measurement
Machine positioning equipment
Material handling machinery
Industrial automation systems
Automated lifting equipment
Custom machine installations
| Specification | Details |
|---|---|
| Product Code | E61445 |
| Product Type | Draw-Wire Pulley |
| Application | Redirection of draw wires |
| Compatible Wire Diameter | 0.8–1 mm |
| External Diameter | 21 mm |
| Dimensions | 36 × 32.5 × 20 mm |
| Material | Anodised aluminium |
| Weight | Approx. 21.6 g |
| Brand | IFM |
| Category | Automation and Controls |
| Pack Quantity | 1 pc. |
| Primary Function | Draw-wire cable redirection |
