The IFM E61444 is a long-range draw-wire mechanism designed for precise linear displacement measurement in industrial encoder systems. It provides an extended maximum measuring length of 15000 mm for large machine and automation applications. The robust aluminium housing and coated stainless-steel wire support demanding operating conditions. It is suitable for high-range position measurement and motion-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E61444 provides a maximum measuring length of 15000 mm, making it suitable for applications involving very long linear travel. It converts draw-wire displacement into rotary movement for compatible encoder systems. This allows automated equipment to monitor the position of moving components. It is particularly suitable for large-scale machinery.
The mechanism provides an accuracy of ±0.01 % FSO for precise linear displacement measurement. This supports reliable position feedback in demanding industrial applications. The long measuring range provides additional flexibility for large equipment.

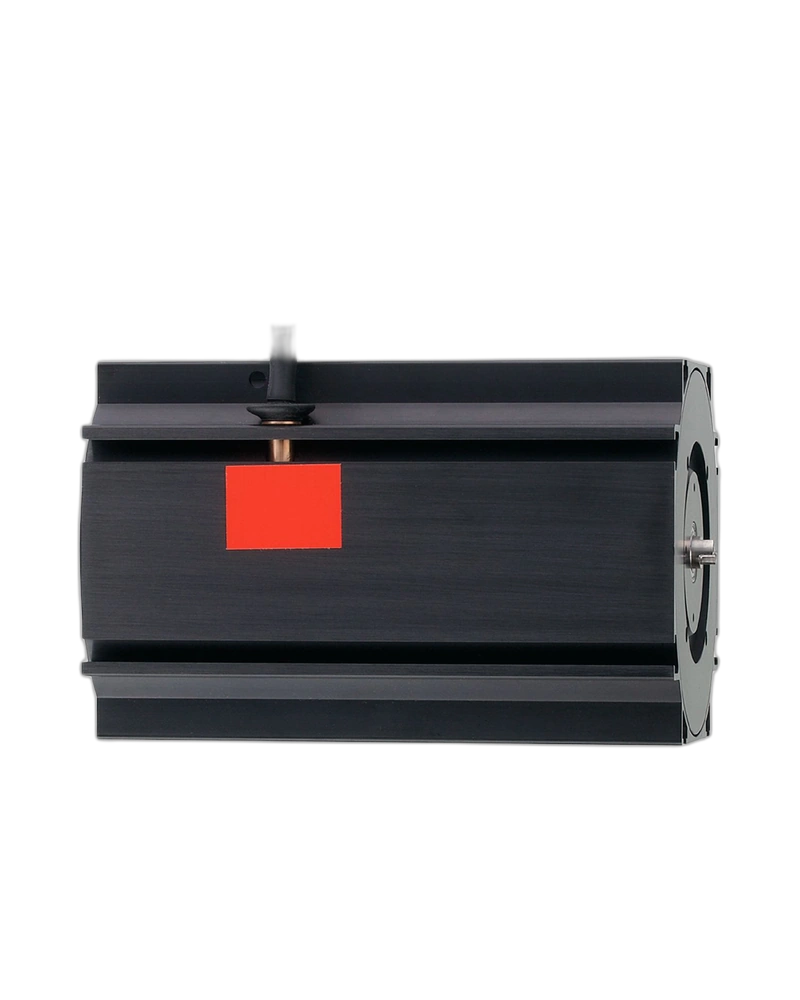

The E61444 uses an anodised aluminium housing and stainless-steel wire construction. The wire is polyamide coated for improved durability and reduced maintenance requirements. This makes the mechanism suitable for repeated industrial operation. The robust construction supports demanding machine applications.
The mechanism is designed for use with compatible encoders featuring a 58 mm synchro flange and 6 mm solid shaft. This provides a defined interface for integrating the draw-wire mechanism into encoder-based measurement systems. It supports accurate machine position monitoring.
Maximum measuring length of 15000 mm
Accuracy of ±0.01 % FSO
Designed for compatible encoder systems
58 mm synchro flange
6 mm solid shaft
Anodised aluminium housing
Stainless-steel polyamide-coated wire
Suitable for large-scale machinery
Long-distance linear measurement
Large industrial machinery
Material handling systems
Automated lifting equipment
Machine positioning systems
Industrial production equipment
Motion-control applications
| Specification | Details |
|---|---|
| Product Code | E61444 |
| Product Type | Draw-Wire Mechanism |
| Model | DRAW WIRE 15000 |
| Maximum Measuring Length | 15000 mm |
| Accuracy | ±0.01 % FSO |
| Encoder Compatibility | 58 mm synchro flange |
| Shaft Design | Solid shaft |
| Shaft Diameter | 6 mm |
| Wire Diameter | 1 mm |
| Wire Drum Circumference | 315 mm |
| Maximum Wire Speed | 2 m/s |
| Maximum Wire Acceleration | 3 g |
| Maximum Extension Force | 25 N |
| Minimum Retraction Force | 8 N |
| Housing Material | Anodised aluminium |
| Wire Material | Stainless steel, polyamide coated |
| Dimensions | Approx. 115 × 180.7 × 115 mm |
| Brand | IFM |
| Pack Quantity | 1 pc. |
