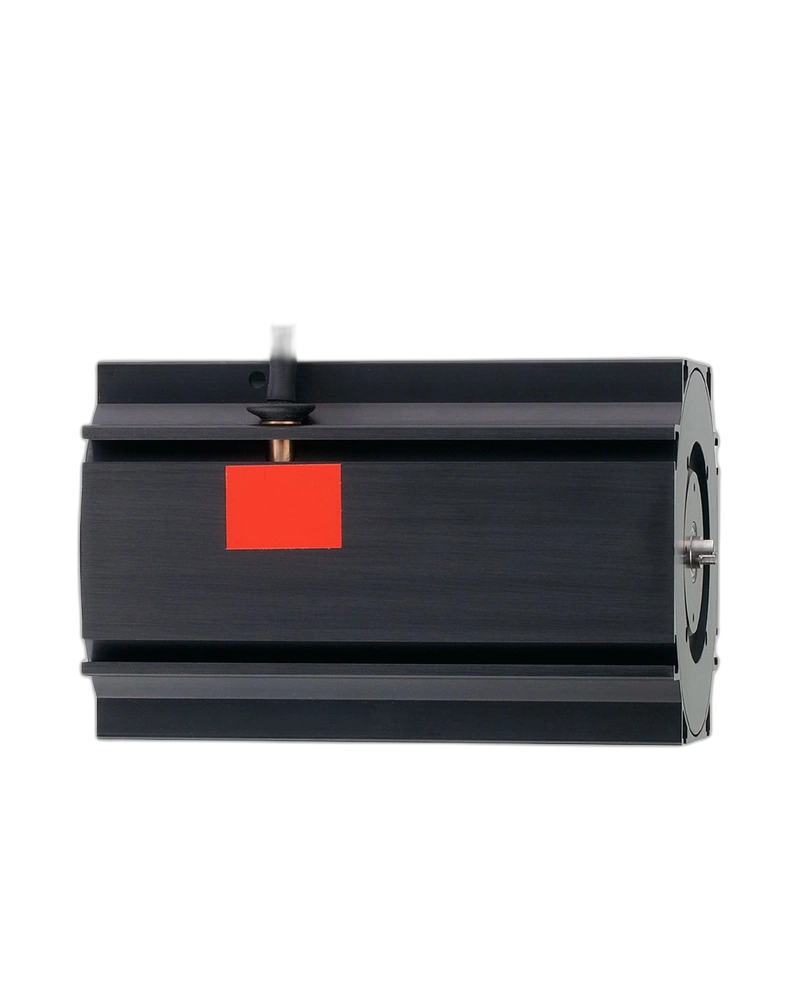

The IFM E61443 is a high-range draw-wire mechanism designed for precise linear displacement measurement. It provides a maximum measuring length of 10000 mm and is designed for compatible 58 mm synchro flange encoders with 6 mm solid shafts. Its anodised aluminium housing and coated stainless-steel wire support demanding industrial applications. It is suitable for long-distance position measurement and automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E61443 provides a maximum measuring length of 10000 mm, making it suitable for applications involving substantial linear movement. It converts wire displacement into rotary movement for a compatible encoder. This allows automated systems to monitor position over long travel distances. The mechanism is suitable for large machinery and material handling systems.
The mechanism provides an accuracy of ±0.01 % FSO and repeatability of ±0.001 % FSO. These characteristics support precise measurement in demanding position-monitoring applications. The system is suitable for applications where consistent movement feedback is important.
The housing is made from anodised aluminium and the wire uses stainless steel with a polyamide coating. This provides a robust mechanical structure for industrial use. The coated wire helps reduce maintenance requirements. The construction is suitable for repeated measurement cycles.
The E61443 is designed for encoders with a 58 mm synchro flange and 6 mm solid shaft. This provides a defined mechanical interface for compatible encoder systems. It can be used for automated position and travel monitoring. Proper compatibility should be verified before installation.
Maximum measuring length of 10000 mm
Accuracy of ±0.01 % FSO
Repeatability of ±0.001 % FSO
58 mm synchro flange compatibility
6 mm solid shaft
Anodised aluminium housing
Stainless-steel polyamide-coated wire
Suitable for long-distance measurement
Long-distance linear measurement
Material handling equipment
Industrial lifting systems
Automated positioning machinery
Large machine monitoring
Production equipment
Motion-control applications
| Specification | Details |
|---|---|
| Product Code | E61443 |
| Product Type | Draw-Wire Mechanism |
| Model | DRAW WIRE 10000 |
| Maximum Measuring Length | 10000 mm |
| Accuracy | ±0.01 % FSO |
| Repeatability | ±0.001 % FSO |
| Encoder Flange | 58 mm synchro flange |
| Shaft Design | Solid shaft |
| Shaft Diameter | 6 mm |
| Wire Diameter | 1 mm |
| Wire Drum Circumference | 315 mm |
| Maximum Wire Speed | 2 m/s |
| Maximum Wire Acceleration | 6 g |
| Maximum Extension Force | 21 N |
| Minimum Retraction Force | 8 N |
| Housing Material | Anodised aluminium |
| Wire Material | Stainless steel, polyamide coated |
| Brand | IFM |
| Pack Quantity | 1 pc. |
