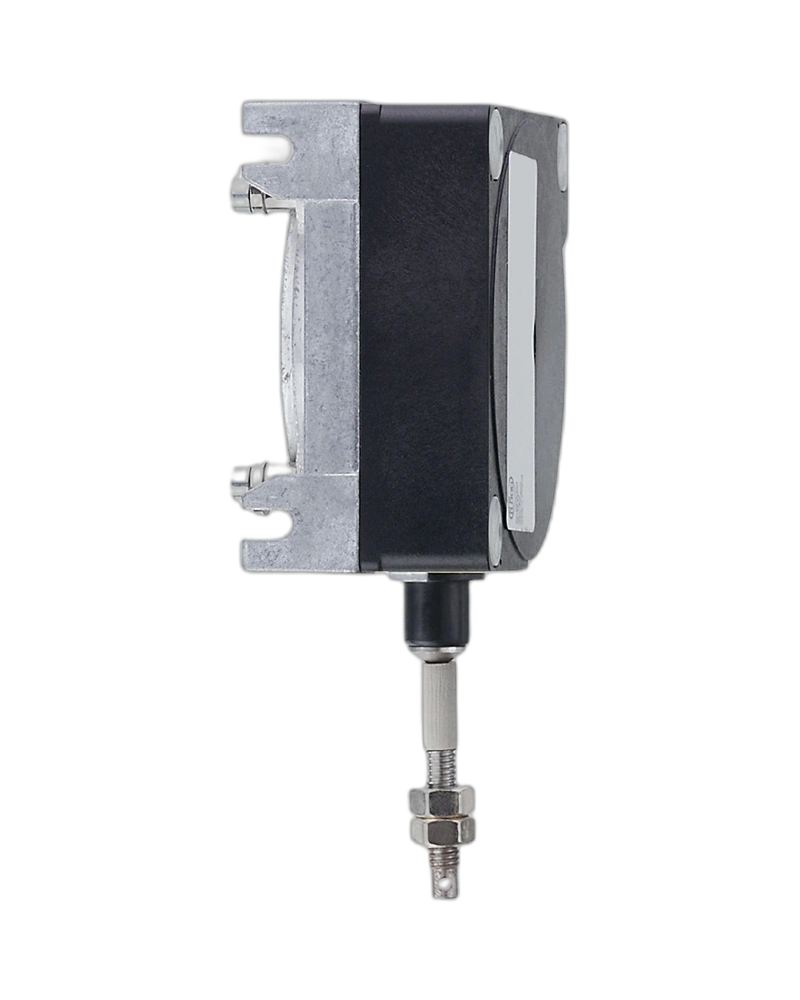

The IFM E61441 is a draw-wire mechanism designed for linear displacement measurement in industrial encoder systems. It provides a maximum measuring length of 3000 mm for medium-range position measurement applications. The mechanism is designed for compatible encoder installations and supports dependable movement tracking. It is suitable for automation, machinery and positioning applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E61441 provides a maximum measuring length of 3000 mm, making it suitable for applications requiring extended linear travel measurement. It converts cable displacement into rotary movement for a compatible encoder. This enables automated monitoring of moving machine components. The mechanism supports practical integration into industrial equipment.
The draw-wire mechanism is designed for use with compatible encoder assemblies. Its solid-shaft configuration provides a direct mechanical interface for suitable encoders. This allows machine movement to be translated into measurable rotary displacement. Proper compatibility should be verified before installation.
The mechanism uses a draw-wire arrangement designed for repeated extension and retraction. Its mechanical construction supports dependable operation in suitable automation environments. The wire system provides a practical solution for measuring linear travel. It is suitable for machines requiring continuous position feedback.
The E61441 can be used where automated machinery needs to monitor linear movement. It is suitable for material handling, positioning and machine-control applications. Its 3000 mm measuring range offers useful flexibility for medium-distance installations.
Maximum measuring length of 3000 mm
Solid-shaft encoder configuration
Supports linear displacement measurement
Suitable for automated position monitoring
Compact mechanical measurement solution
Reliable draw-wire mechanism
Designed for industrial encoder systems
Suitable for dynamic machinery
Linear position measurement
Machine positioning
Material handling systems
Automation machinery
Lifting equipment
Production machinery
Motion-control applications
| Specification | Details |
|---|---|
| Product Code | E61441 |
| Product Type | Draw-Wire Mechanism |
| Model | DRAW WIRE 3000 |
| Maximum Measuring Length | 3000 mm |
| Shaft Design | Solid shaft |
| Shaft Diameter | 6 mm |
| Wire Diameter | 0.87 mm |
| Wire Drum Circumference | 200 mm |
| Wire Connection | M6 |
| Maximum Wire Speed | 0.8 m/s |
| Maximum Wire Acceleration | 1 g |
| Maximum Extension Force | 3 N |
| Minimum Retraction Force | 2.5 N |
| Brand | IFM |
| Pack Quantity | 1 pc. |
