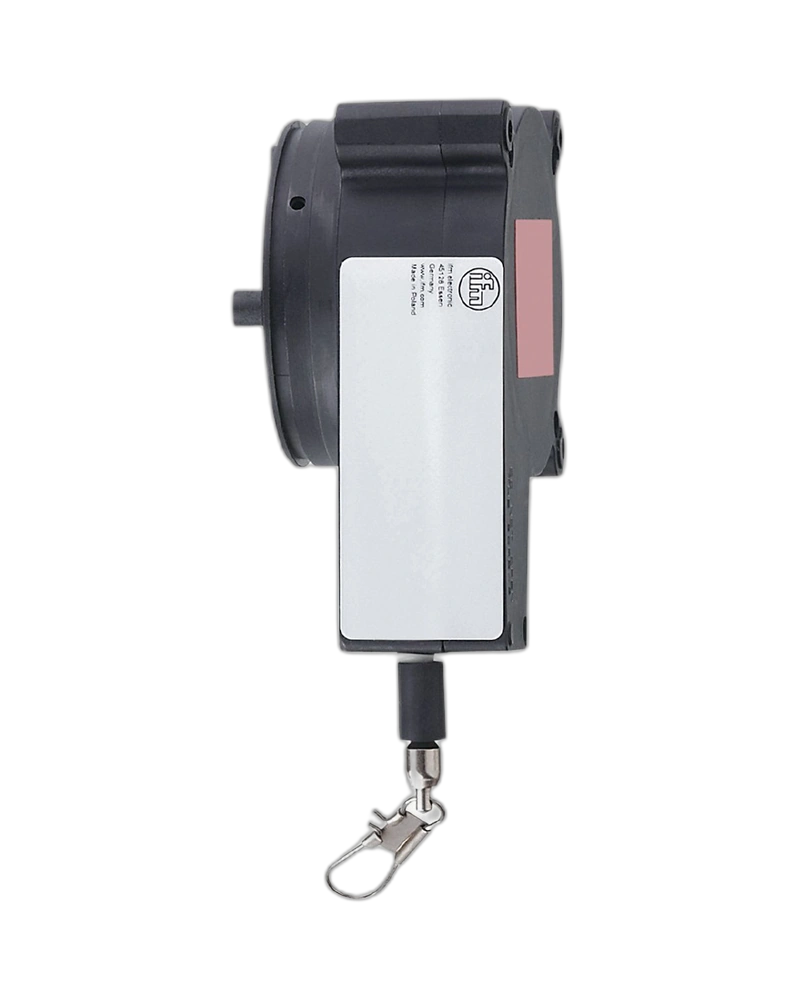

The IFM E61440 is a draw-wire mechanism designed for linear displacement measurement with compatible encoders. It provides a maximum measuring length of 2400 mm and is designed for encoders with a 58 mm synchro flange and 6 mm solid shaft. Its compact design supports installation in space-restricted machinery. The mechanism provides a reliable solution for automated position measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E61440 is designed to convert linear movement into rotary movement for compatible encoder systems. This allows machines to monitor the position or travel of moving components. Its 2400 mm measuring range provides flexibility for medium-distance measurement applications. It is suitable for automated positioning systems.
The mechanism is designed for encoders with a 58 mm synchro flange and 6 mm solid shaft. This configuration allows straightforward integration with compatible encoder systems. Proper encoder compatibility should be confirmed before installation. The arrangement supports reliable mechanical signal generation.
The compact form is useful for applications where installation space is restricted. Its construction supports practical mounting on industrial machinery. The mechanism is designed for reliable operation in automation environments. It provides a space-efficient alternative for linear displacement measurement.
The E61440 offers defined accuracy and repeatability characteristics for suitable measurement applications. Its design also supports resistance to mechanical shock and vibration. This makes it suitable for dynamic industrial equipment.
Maximum measuring length of 2400 mm
Designed for 58 mm synchro flange encoders
6 mm solid shaft compatibility
Compact installation design
Supports linear displacement measurement
Suitable for automated positioning
Shock and vibration resistant design
Reliable industrial measurement accessory
Linear position measurement
Automated positioning systems
Material handling equipment
Machine automation
Lifting machinery
Production equipment
Motion-control applications
| Specification | Details |
|---|---|
| Product Code | E61440 |
| Product Type | Draw-Wire Mechanism |
| Model | DRAW WIRE 2400 |
| Maximum Measuring Length | 2400 mm |
| Encoder Compatibility | 58 mm synchro flange |
| Shaft Design | Solid shaft |
| Shaft Diameter | 6 mm |
| Accuracy | ±0.1 % FSO |
| Repeatability | ±0.04 % FSO |
| Ambient Temperature | -20 to 80 °C |
| Top Flange Diameter | 58 mm |
| Shock Resistance | 50 g / 5 ms |
| Vibration Resistance | 20 g / 20–200 Hz |
| Brand | IFM |
| Category | Automation and Controls |
