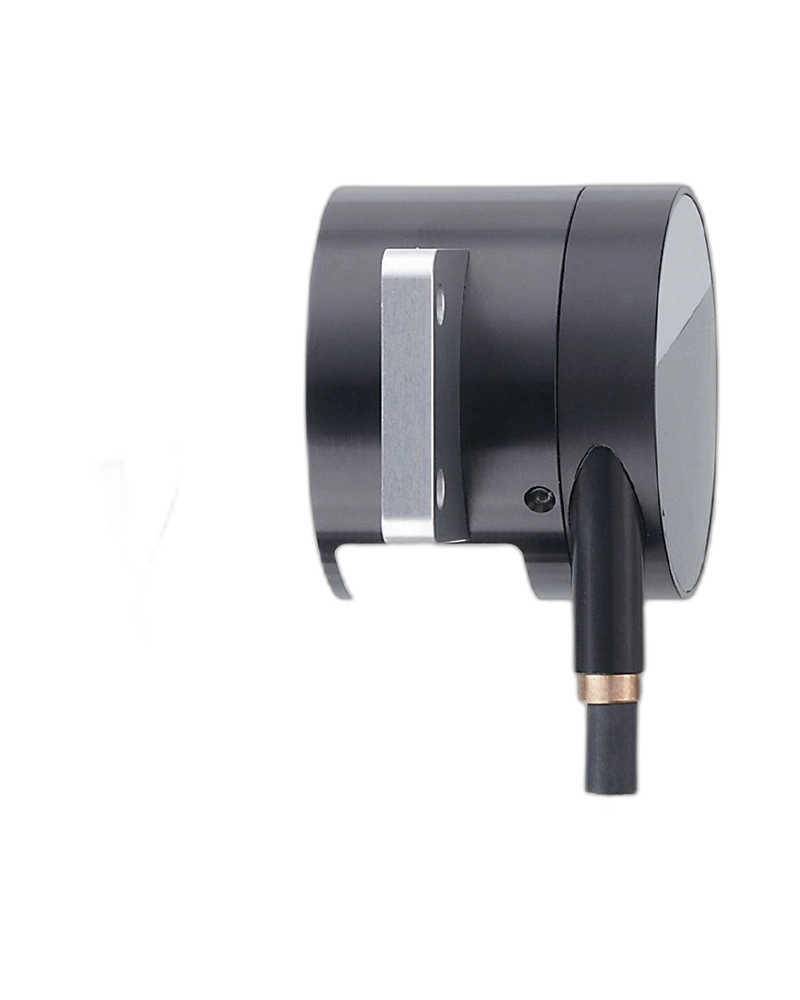

The IFM E61439 is a draw-wire mechanism designed for precise linear measurement with compatible encoders. It provides a maximum measuring length of 1900 mm in a compact construction. The aluminium housing and polyamide-coated stainless-steel wire support reliable industrial operation. It is suitable for position and distance measurement in automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E61439 converts linear movement into rotary encoder movement through its draw-wire mechanism. Its compact construction makes it suitable for installations where available space is limited. The 1900 mm measuring range supports a wide range of machine-positioning requirements. It provides a practical solution for linear displacement measurement.
The mechanism uses a stainless-steel wire with a polyamide coating. This construction supports durability while helping reduce maintenance requirements. The wire is designed for repeated extension and retraction during normal operation. It provides dependable performance for suitable industrial applications.
When combined with a compatible encoder, the draw-wire mechanism can provide feedback on linear movement and position. This makes it useful for machinery where direct linear sensing is required. The mechanism supports accurate and repeatable measurement when correctly installed. It can be integrated into automated positioning systems.
The compact design allows installation in areas where conventional linear measurement systems may be difficult to accommodate. Its aluminium housing provides a lightweight mechanical structure. The mechanism is suitable for industrial automation equipment requiring compact displacement measurement.
Maximum measuring length of 1900 mm
Compact design for restricted installation spaces
Stainless-steel wire with polyamide coating
Aluminium housing
Designed for compatible encoders
Supports linear position measurement
Long-life spring mechanism
Reduced maintenance requirements
Linear position measurement
Machine positioning systems
Industrial automation equipment
Material handling machinery
Lifting and handling equipment
Machine tool applications
Automated production systems
| Specification | Details |
|---|---|
| Product Code | E61439 |
| Product Type | Draw-Wire Mechanism |
| Model | DRAW WIRE 1900 |
| Maximum Measuring Length | 1900 mm |
| Top Flange Diameter | 58 mm |
| Shaft Diameter | 6 mm |
| Shaft Design | Solid shaft |
| Wire Diameter | 0.45 mm |
| Wire Drum Circumference | 150 mm |
| Maximum Wire Speed | 5.5 m/s |
| Maximum Wire Acceleration | 2 g |
| Maximum Extension Force | 12 N |
| Minimum Retraction Force | 3.5 N |
| Housing Material | Aluminium |
| Wire Material | Stainless steel, polyamide coated |
| Brand | IFM |
| Pack Quantity | 1 pc. |
