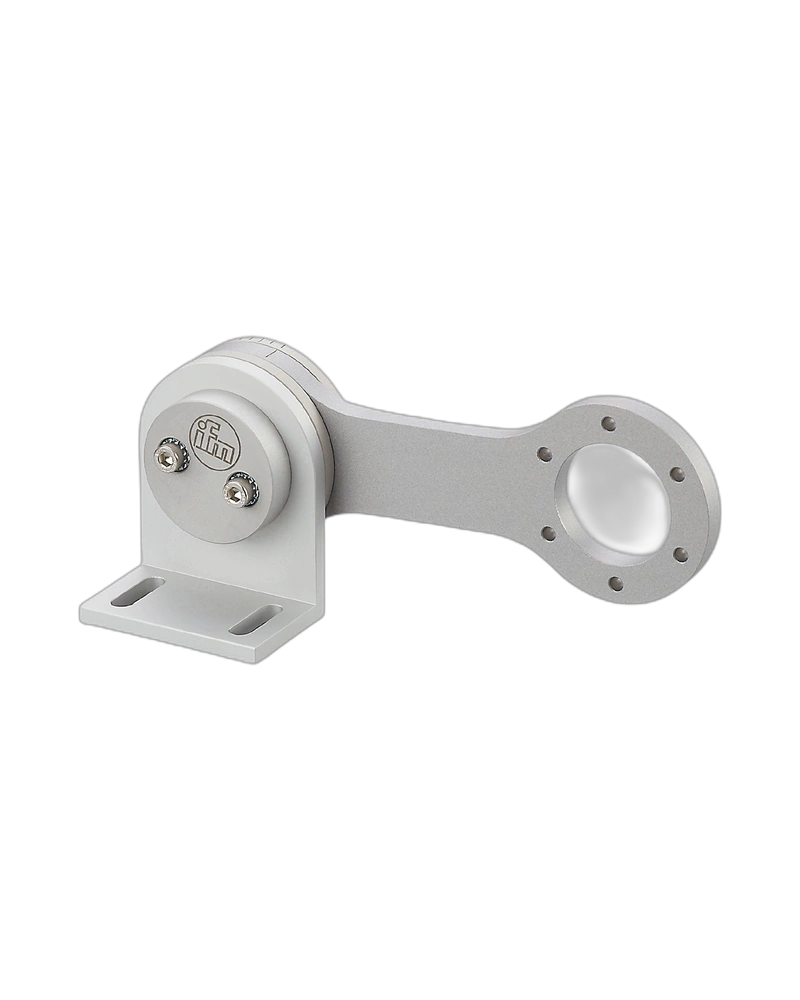

The IFM E61438 is an encoder spring arm designed for compatible encoder mounting applications. It provides a spring-loaded mechanical arrangement for encoder installations requiring controlled contact or positioning. The anodised aluminium and stainless-steel spring construction provides a robust industrial solution. It is suitable for encoder systems used in automation and measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E61438 provides a dedicated mounting solution for compatible encoders with clamp flange arrangements. Its spring-arm design allows controlled mechanical movement during installation and operation. This makes it useful for applications where consistent contact or positioning is required. The component supports practical encoder integration.
The spring arm uses anodised aluminium with a stainless-steel spring element. This combination provides a balance of strength, durability and low weight. The construction is suitable for industrial automation environments. It supports reliable operation when correctly installed.
The E61438 can be mounted from both sides, providing additional installation flexibility. This allows the component to be adapted to different machine layouts. Its compact dimensions help simplify integration into encoder assemblies. The design supports convenient installation and maintenance.
The spring mechanism helps maintain controlled contact between the encoder assembly and the associated machine component. This can support stable measurement arrangements in suitable applications. The spring arm is designed specifically for compatible encoder mounting configurations.
Designed for encoder applications with clamp flange
Spring-loaded mechanical design
Anodised aluminium construction
Stainless-steel spring element
Can be mounted from both sides
Compact industrial construction
Supports controlled encoder positioning
Suitable for automation and measurement systems
Encoder mounting systems
Rotary measurement equipment
Position monitoring systems
Industrial automation machinery
Motion-control equipment
Machine measurement applications
Factory automation systems
| Specification | Details |
|---|---|
| Product Code | E61438 |
| Product Type | Encoder Spring Arm |
| Application | Encoder mounting |
| Suitable For | Encoders with clamp flange |
| Dimensions | 180 × 65.9 × 75 mm |
| Material | Anodised aluminium |
| Spring Material | Stainless steel 301 / 1.4310 |
| Weight | Approx. 527.1 g |
| Ambient Temperature | -30 to 60 °C |
| Mounting | Can be mounted from both sides |
| Brand | IFM |
| Category | Automation and Controls |
