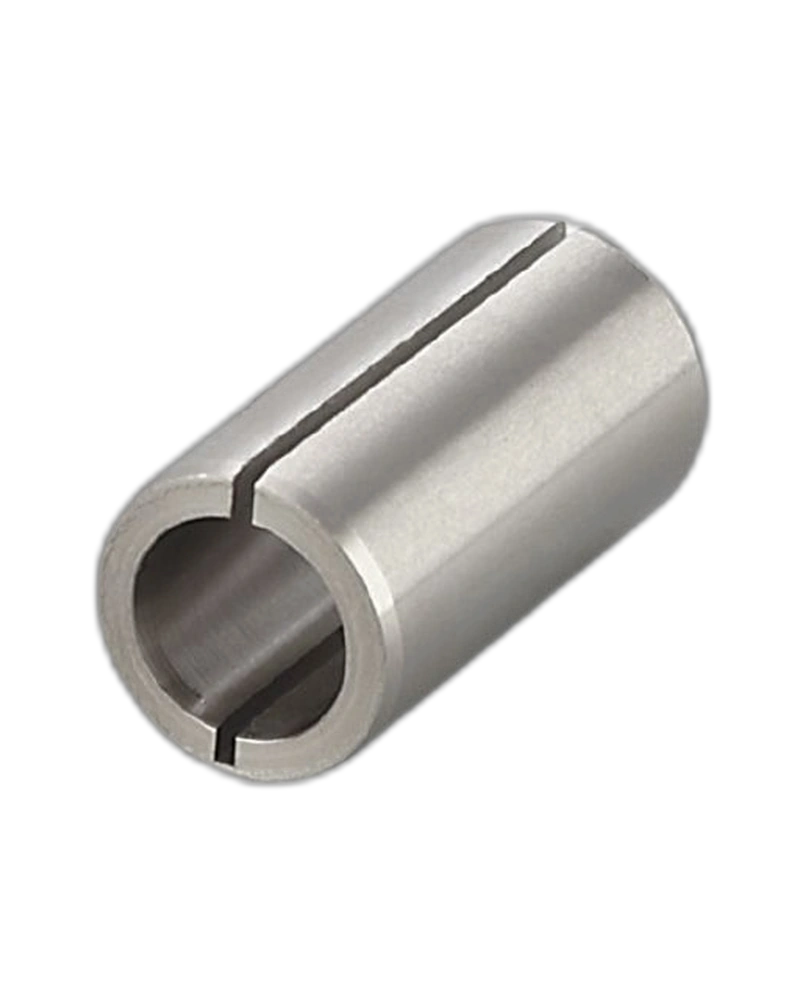

The IFM E60212 is a reducing sleeve designed for compatible RO3 and ROP hollow-shaft encoder installations. It adapts a 15 mm hollow-shaft interface to an 8 mm internal diameter for flexible shaft integration. The stainless-steel construction provides a durable mechanical interface for industrial applications. Its compact design enables quick installation and convenient adaptation of encoder shaft dimensions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60212 is designed to adapt compatible 15 mm hollow-shaft encoder arrangements to an 8 mm shaft diameter. This allows encoders to be integrated with machinery using smaller shaft dimensions.
The reducing sleeve provides a practical solution when the encoder's standard hollow shaft does not directly match the machine shaft.
The sleeve is manufactured from stainless steel 1.4305 / 303. This material provides a robust mechanical interface suitable for industrial encoder mounting.
Its compact construction supports reliable installation while maintaining the required shaft adaptation.
The E60212 provides a cost-efficient method for creating flexible hollow-shaft combinations. Its 27.5 mm length allows it to fit within compatible RO3 and ROP encoder arrangements.
The sleeve is designed to support quick and straightforward mechanical installation.
Product Type: Reducing sleeve
Model: E60212
Compatible Design: RO3 / ROP
Application: Hollow-shaft encoders
Internal Diameter: 8 mm
External Diameter: 15 mm
Length: 27.5 mm
Material: Stainless steel 1.4305 / 303
Weight: 28.4 g
Efficient shaft-size adaptation
Flexible encoder integration
Compact construction
Durable stainless-steel material
Hollow-shaft encoder mounting
RO3 encoder systems
ROP encoder systems
Rotary measurement equipment
Industrial automation
Machine-building applications
Position measurement
Encoder feedback systems
| Specification | Details |
|---|---|
| Product Code | E60212 |
| Product Type | Reducing Sleeve |
| Product Designation | REDUCING SLEEVE FOR RO3 ROP15-8MM |
| Compatible Design | RO3 / ROP |
| Application | Hollow-shaft encoders |
| Internal Diameter | 8 mm |
| External Diameter | 15 mm |
| Length | 27.5 mm |
| Material | Stainless steel 1.4305 / 303 |
| Weight | 28.4 g |
| Pack Quantity | 1 piece |
