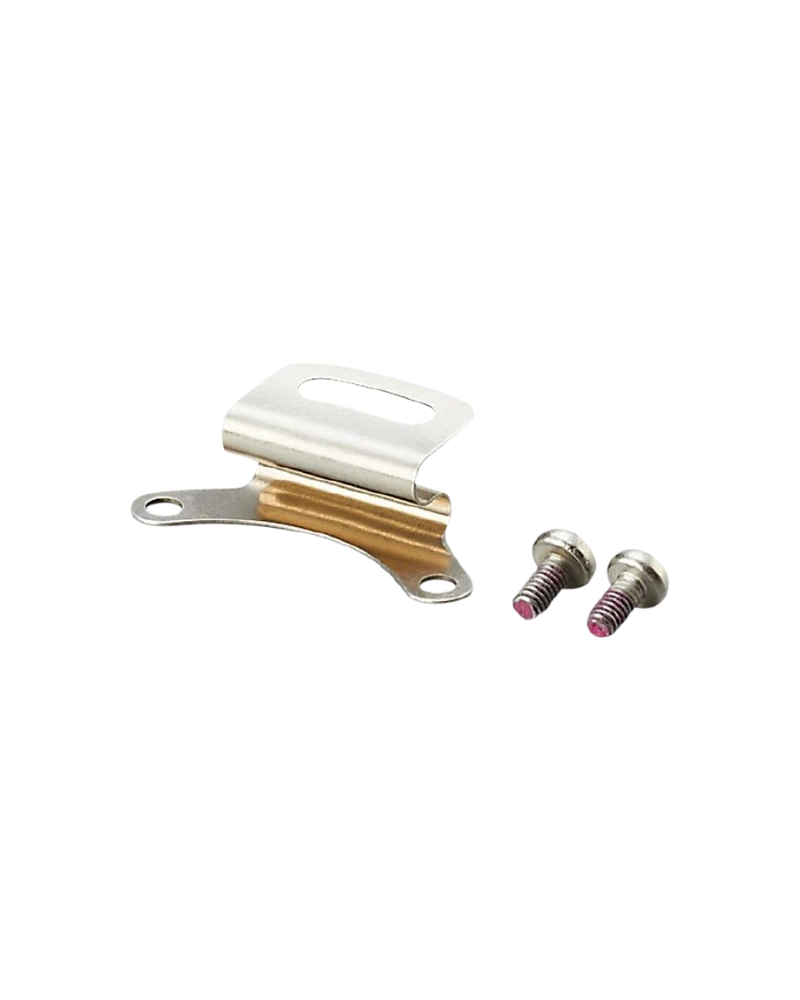

The IFM E60205 is a stator coupling designed for RO3 and ROP encoder configurations. It provides backlash-free transmission of rotary movement while compensating for alignment errors between the encoder and mechanical assembly. The stainless-steel construction provides durable mechanical performance for industrial installations. Its low torsional spring rigidity and small restoring forces support reliable encoder operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60205 provides a reliable stator mounting solution for compatible RO3 and ROP encoders. It supports the encoder mechanically while allowing controlled compensation for small installation deviations.
This makes it suitable for machine-building and automation applications where accurate and stable encoder mounting is required.
The coupling is designed for clearance-free transmission of rotary movements. This helps maintain consistent mechanical feedback between the rotating machine components and the encoder.
The design is particularly suitable for encoder systems where mechanical stability and repeatable movement transmission are important.
The E60205 provides effective vibration damping and compensation for alignment errors. These characteristics help reduce unwanted mechanical forces transferred to the encoder.
The low torsional spring rigidity and small restoring forces further support smooth and reliable operation.
Product Type: Stator coupling
Model: E60205
Designation: STATOR COUPLING RO3, ROP
Compatible Encoders: RO3 and ROP
Material: Stainless steel 1.4310 / 301
Weight: 7.5 g
Tightening Torque: 0.8 Nm
Included Screws: 2 × M3 × 5 mm
Backlash-free transmission
Effective vibration damping
Alignment error compensation
Low torsional rigidity
RO3 encoder installation
ROP encoder installation
Rotary measurement systems
Industrial automation
Machine-building equipment
Motion-control applications
Encoder feedback systems
Factory automation
| Specification | Details |
|---|---|
| Product Code | E60205 |
| Product Type | Stator Coupling |
| Product Designation | STATOR COUPLING RO3, ROP |
| Compatible Encoder Designs | RO3, ROP |
| Material | Stainless steel 1.4310 / 301 |
| Weight | 7.5 g |
| Tightening Torque | 0.8 Nm |
| Included Screws | 2 × M3 × 5 mm, TX 10 |
| Mechanical Function | Stator coupling |
| Pack Quantity | 1 piece |
