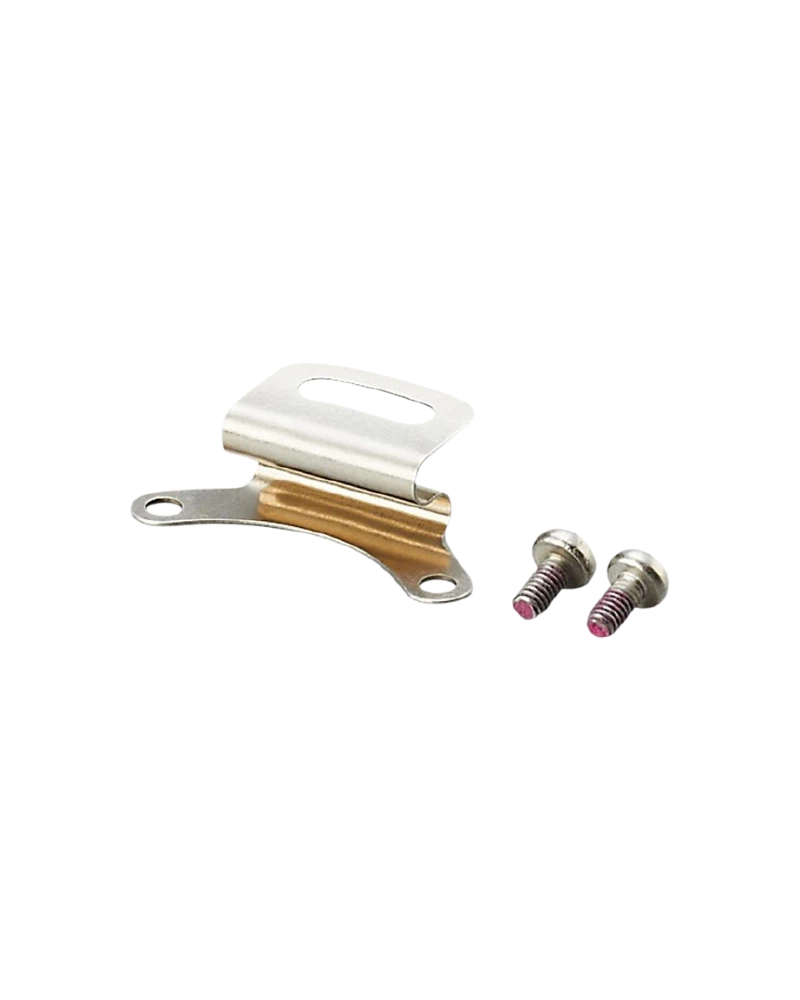

The IFM E60204 is a stator coupling designed for compatible RA3 rotary encoders. It provides backlash-free transmission of rotary movement while helping compensate for alignment errors between the encoder and machine shaft. The stainless-steel construction provides reliable mechanical performance in industrial applications. Its low torsional spring rigidity and small restoring forces support stable encoder operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60204 provides a mechanical mounting solution for RA3 encoder installations. It securely supports the encoder while allowing the connected system to accommodate small alignment variations during operation.
This helps maintain stable encoder positioning without unnecessarily transferring mechanical stress to the encoder body.
The stator coupling is designed to support backlash-free transmission of rotary movements. This is particularly useful in encoder applications where accurate rotational feedback is important.
Its mechanical design helps maintain dependable encoder operation while accommodating controlled shaft and mounting movement.
Small alignment deviations can occur during machine installation. The E60204 is designed to compensate for such errors, helping reduce mechanical loading on the encoder.
Its low torsional spring rigidity and reduced restoring forces support smooth mechanical operation and reliable encoder integration.
Product Type: Stator coupling
Model: E60204
Designation: STATOR COUPLING RA3
Compatible Design: RA3 encoders
Material: Stainless steel 1.4310 / 301
Weight: 5.2 g
Tightening Torque: 0.6 Nm
Included Screws: 2 × M2 × 5 mm
Backlash-free rotary transmission
Effective vibration damping
Alignment error compensation
Low restoring forces
RA3 rotary encoder mounting
Industrial automation
Rotary position measurement
Motion-control equipment
Machine-building systems
Encoder feedback applications
Factory automation
Rotary measurement systems
| Specification | Details |
|---|---|
| Product Code | E60204 |
| Product Type | Stator Coupling |
| Product Designation | STATOR COUPLING RA3 |
| Compatible Encoder | RA3 |
| Material | Stainless steel 1.4310 / 301 |
| Weight | 5.2 g |
| Tightening Torque | 0.6 Nm |
| Included Screws | 2 × M2 × 5 mm, TX 8 |
| Mechanical Function | Stator coupling |
| Pack Quantity | 1 piece |
