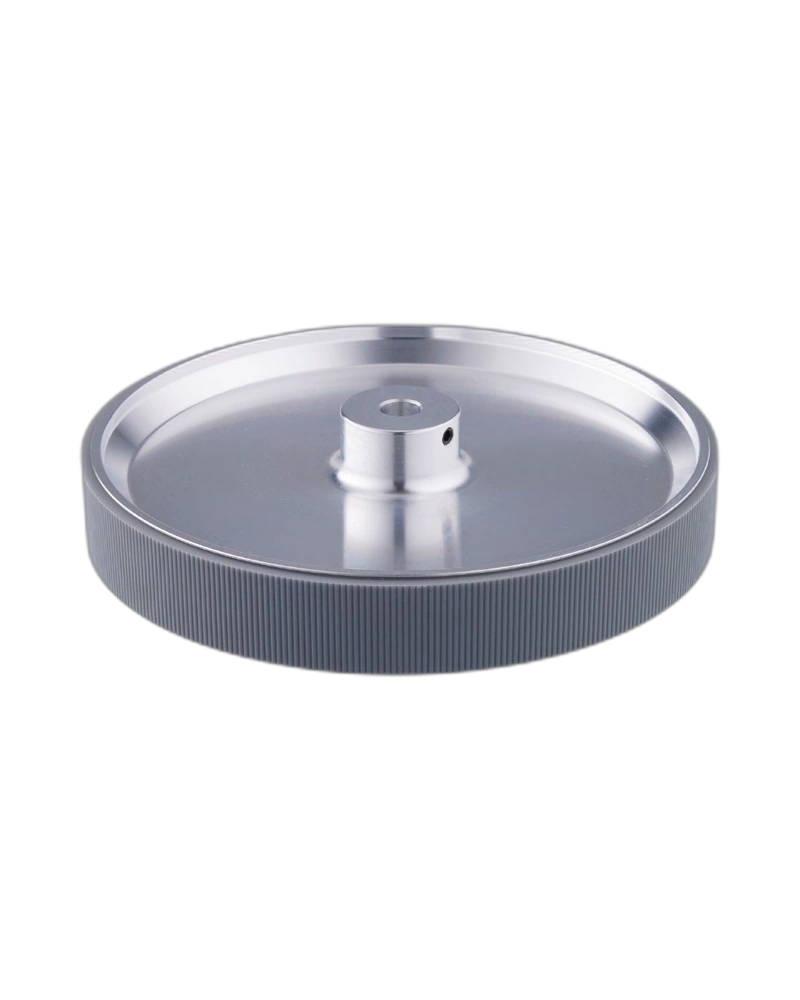

The IFM E60194 is a measuring wheel designed for accurate linear movement and distance measurement when used with compatible encoders. It features a 500 mm circumference and a 10 mm internal diameter for encoder shaft integration. The aluminium wheel incorporates a PU measuring surface with 90 Shore A hardness for durable contact with moving materials. Its robust construction makes it suitable for continuous measurement applications in industrial automation and material handling systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60194 converts linear movement into rotary movement for use with compatible encoder systems. Its defined 500 mm circumference provides a consistent measurement reference for monitoring material travel, machine movement and conveyor operation.
The measuring wheel is suitable for applications where continuous and repeatable measurement of moving materials is required. It can support reliable feedback for automated production and material handling processes.
The wheel is manufactured from aluminium and incorporates a PU surface with a hardness of 90 Shore A. This construction provides a durable contact surface for repeated operation against moving materials.
The grooved plastic design helps provide dependable contact during measurement. This makes the wheel suitable for continuous-duty industrial applications where reliable mechanical contact is important.
The E60194 has a 10 mm internal diameter and approximately 159.16 mm external diameter. This configuration allows the wheel to be integrated with compatible encoder arrangements for linear measurement.
Its compact mechanical construction allows installation in a variety of machine and automation systems while maintaining dependable measurement performance.
Product Type: Measuring wheel
Model: E60194
Circumference: 500 mm
Internal Diameter: 10 mm
External Diameter: 159.16 mm
Wheel Material: Aluminium
Surface Material: PU
Surface Hardness: 90 Shore A
Design: Grooved plastic
Operating Temperature: -30 to 80 °C
Accurate linear movement measurement
Durable PU contact surface
Reliable encoder integration
Suitable for continuous industrial measurement
Conveyor belt measurement
Linear distance measurement
Material handling systems
Packaging machinery
Printing equipment
Machine feed monitoring
Production line measurement
Industrial automation systems
| Specification | Details |
|---|---|
| Product Code | E60194 |
| Product Type | Measuring Wheel |
| Product Designation | MEASURING WHEEL U:500 N:10 |
| Design | Grooved plastic |
| Circumference | 500 mm |
| Internal Diameter | 10 mm |
| External Diameter | 159.16 mm |
| Wheel Material | Aluminium |
| Surface Material | PU |
| Surface Hardness | 90 Shore A |
| Tightening Torque | 3 Nm |
| Ambient Temperature | -30 to 80 °C |
| Weight | 531.5 g |
| Pack Quantity | 1 piece |
