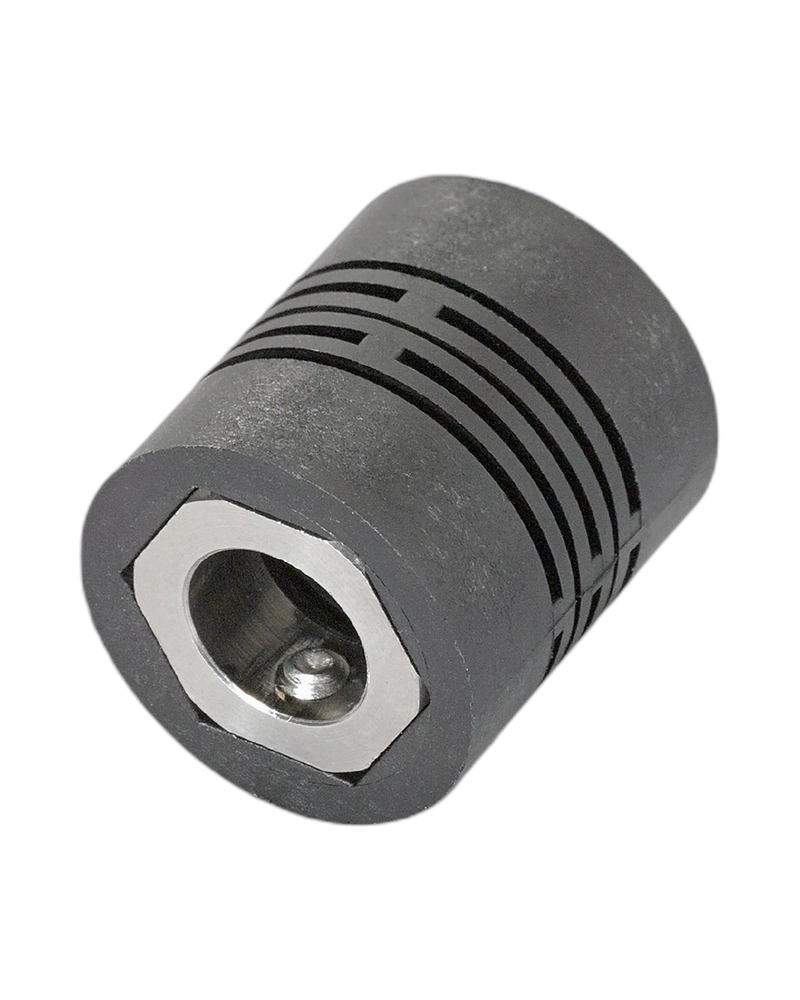

The IFM E60193 bar coupling is designed for reliable rotary connection between two shafts with 10 mm diameters. Its compact 25 mm external diameter and 24 mm length make it suitable for encoder and rotary measurement installations. The coupling uses PA 6.6 construction with stainless-steel clamping screws for durable mechanical performance. It supports speeds up to 10,000 rpm while compensating for defined shaft alignment variations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60193 provides a mechanical connection between compatible rotating shafts and enables dependable transfer of rotary movement. Its coupling design supports encoder and motion applications where accurate shaft movement needs to be transmitted with controlled flexibility.
The coupling allows limited axial, radial and angular shaft displacement. This helps accommodate small installation tolerances and reduces mechanical stress on connected components during operation.
The coupling has a 25 mm external diameter and 24 mm length, providing a compact solution for encoder installations. Its PA 6.6 body and stainless-steel clamping screws provide a durable mechanical assembly for industrial applications.
The E60193 supports mechanical speeds up to 10,000 rpm. This makes it suitable for high-speed encoder feedback, rotary measurement and automation equipment where stable shaft coupling is required.
Product Type: Bar coupling
Model: E60193
Designation: Coupling 25-10-10-24-SV
Shaft Bore: 10 mm / 10 mm
External Diameter: 22 mm
Length: 24 mm
Maximum Speed: 10,000 rpm
Axial Alignment: ±0.2 mm
Radial Deflection: ±0.3 mm
Angular Displacement: ±3°
Body Material: PA 6.6
Clamping Screws: Stainless steel
Compact encoder coupling
High-speed rotary operation
Alignment compensation
Reliable mechanical connection
Encoder shaft coupling
Rotary position measurement
Speed measurement
Motion-control systems
Servo applications
Industrial automation
Rotary feedback systems
Machine-building equipment
| Specification | Details |
|---|---|
| Product Code | E60193 |
| Product Type | Bar Coupling |
| Designation | Coupling 25-10-10-24-SV |
| Material | PA 6.6 |
| Clamping Screw Material | Stainless Steel 1.4404 / 316L |
| External Diameter | 22 mm |
| Inside Diameter 1 | 10 mm |
| Inside Diameter 2 | 10 mm |
| Clamping Hub Depth | 6.4 mm |
| Clamping Screw | M4 × 6 ISO 4029 |
| Length | 24 mm |
| Maximum Mechanical Speed | 10,000 rpm |
| Axial Shaft Misalignment | ±0.2 mm |
| Radial Shaft Deflection | ±0.3 mm |
| Angular Displacement | ±3° |
| Clamping Torque | 1.2 Nm |
| Weight | Approx. 18.6 g |
| Pack Quantity | 1 Piece |
