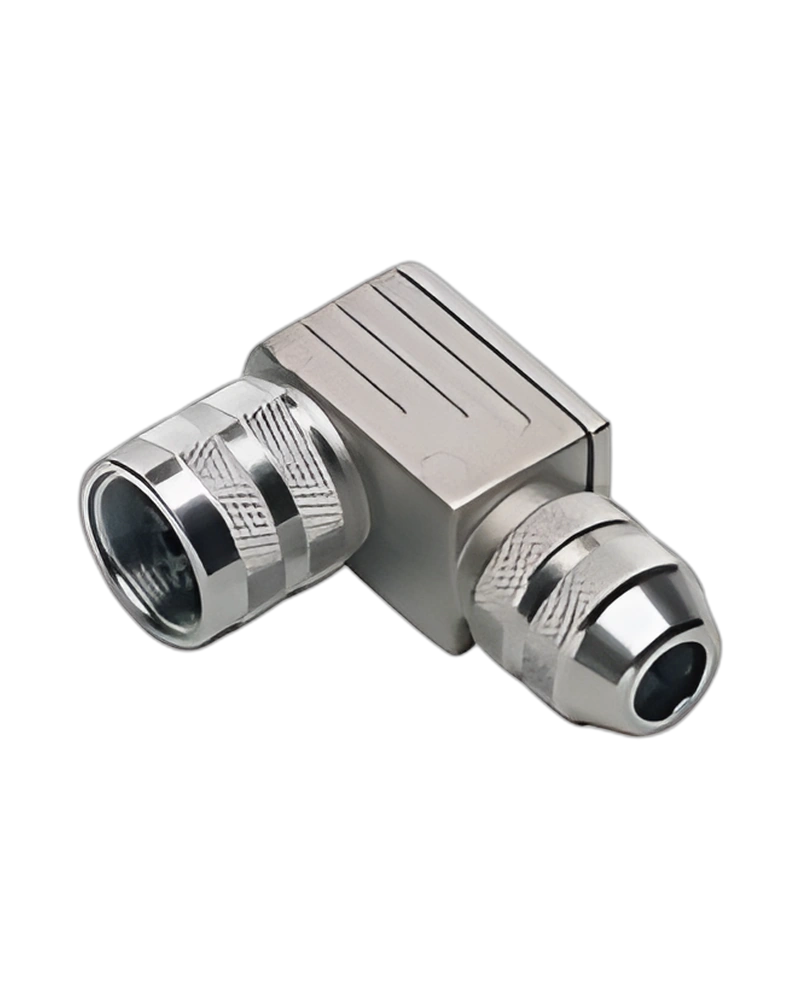

The IFM E60175 is an angled wirable socket designed for incremental encoders with a 12-pole M18 connection. Its angled configuration is particularly useful where installation space is limited or cable routing requires a controlled direction. The nickel-plated brass construction provides durable industrial performance. IP67 protection and a -40 to 85 °C operating range support reliable operation in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60175 features an angled M18 connector configuration that helps simplify cable routing in compact machine assemblies. This design is particularly useful where a straight connector would require additional installation space.
The socket is designed for incremental encoders with a 12-pole M18 connection. Its solder-type cable connection provides a stable interface for custom encoder wiring and machine integration.
The body and nut are manufactured from nickel-plated brass, providing a robust mechanical structure. The IP67 protection rating helps protect the connection against dust and water ingress during industrial operation.
Product Type: Wirable socket
Model: E60175
Connector: M18
Pole Configuration: 12-pole
Application: Incremental encoders
Design: Angled
Operating Voltage: 4.5–30 V DC
Protection Rating: IP67
Operating Temperature: -40 to 85 °C
Body Material: Nickel-plated brass
Electrical Connection: Soldering
Space-saving angled design
Reliable encoder connectivity
Durable metal construction
Suitable for demanding industrial environments
Incremental encoder systems
Compact machine assemblies
Industrial automation
Motion-control equipment
Rotary measurement
Position feedback
Factory automation
Encoder connection systems
| Specification | Details |
|---|---|
| Product Code | E60175 |
| Product Designation | SDOAJ120MSLFKPG |
| Product Type | Wirable Socket |
| Connector | M18 |
| Pole Configuration | 12-pole |
| Application | Incremental Encoders |
| Design | Angled |
| Operating Voltage | 4.5–30 V DC |
| Protection Rating | IP67 |
| Ambient Temperature | -40 to 85 °C |
| Dimensions | Approx. 37 × 20 × 53 mm |
| Body Material | Nickel-plated brass |
| Nut Material | Nickel-plated brass |
| Electrical Connection | Soldering |
| Cable Cross-Section | Up to 0.25 mm² |
| Cable Diameter | Ø 6–8 mm |
| Weight | Approx. 69.4 g |
| Pack Quantity | 1 Piece |
