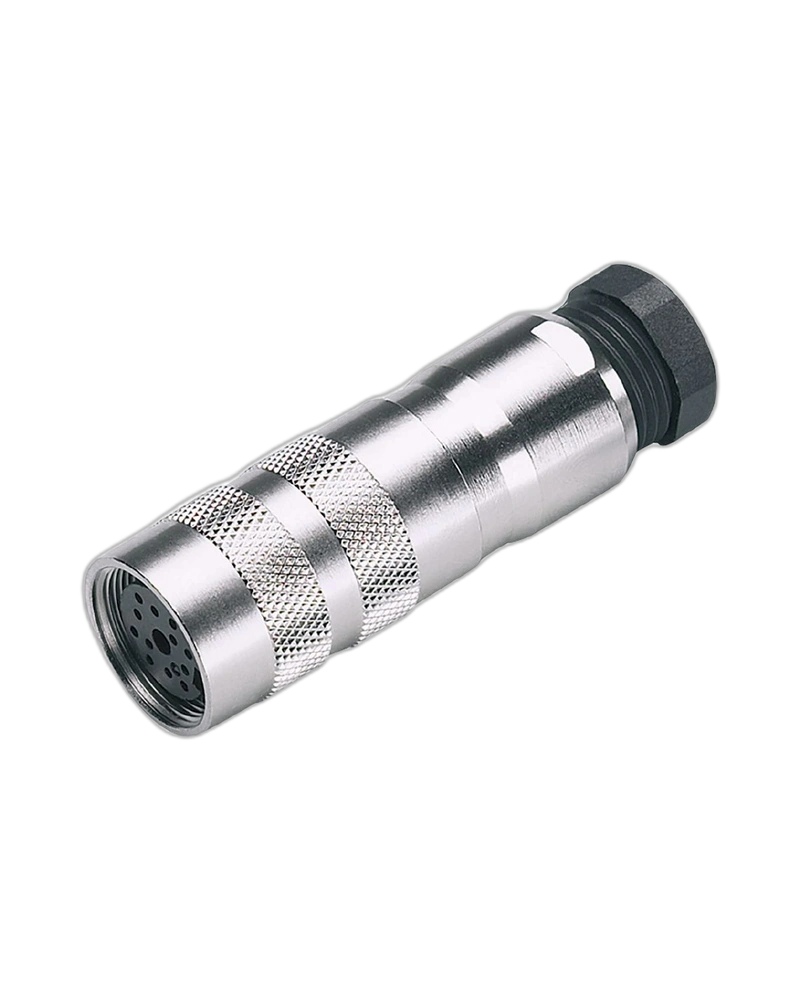

The IFM E60174 is a straight wirable socket designed for incremental encoders with a 12-pole M18 connection. It provides a solder-type cable connection for flexible encoder installation and custom wiring. The nickel-plated brass construction offers durability for industrial environments. IP67 protection and a -40 to 85 °C operating temperature range support reliable performance in demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60174 provides a dependable connection interface for incremental encoders using an M18 connector. Its solder connection allows custom cable assembly and supports stable electrical integration into automated machinery.
The straight M18 configuration provides direct cable routing from the encoder. This design is suitable for installations where space and cable direction need to be managed efficiently within machine assemblies.
The socket uses nickel-plated brass for the body and nut, providing a robust mechanical structure. Its IP67 protection helps safeguard the connection from dust and water exposure in industrial environments.
Product Type: Wirable socket
Model: E60174
Connector: M18
Pole Configuration: 12-pole
Application: Incremental encoders
Design: Straight
Operating Voltage: 4.5–30 V DC
Protection Rating: IP67
Operating Temperature: -40 to 85 °C
Body Material: Nickel-plated brass
Electrical Connection: Soldering
Reliable encoder connection
Durable metal construction
Suitable for harsh industrial environments
Wide operating temperature range
Incremental encoder connections
Industrial automation
Motion-control systems
Rotary measurement
Position feedback systems
Machine-building equipment
Speed monitoring
Factory automation
| Specification | Details |
|---|---|
| Product Code | E60174 |
| Product Designation | SDOGJ120MSLFKPG |
| Product Type | Wirable Socket |
| Connector | M18 |
| Pole Configuration | 12-pole |
| Application | Incremental Encoders |
| Design | Straight |
| Operating Voltage | 4.5–30 V DC |
| Protection Rating | IP67 |
| Ambient Temperature | -40 to 85 °C |
| Dimensions | Approx. 18 × 18 × 60 mm |
| Body Material | Nickel-plated brass |
| Nut Material | Nickel-plated brass |
| Electrical Connection | Soldering |
| Cable Cross-Section | Up to 0.25 mm² |
| Cable Diameter | Ø 6–8 mm |
| Weight | Approx. 55.3 g |
| Pack Quantity | 1 Piece |
