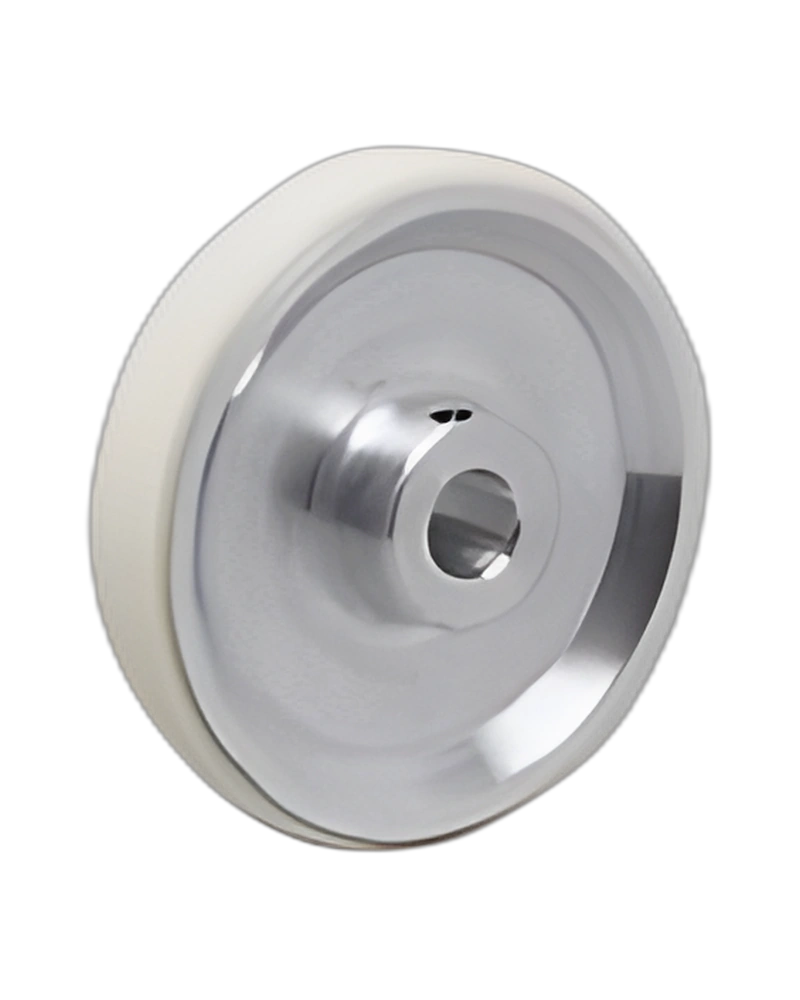

The IFM E60138 measuring wheel is designed for encoder-based linear measurement and belt-speed monitoring. It provides a 200 mm circumference and a 10 mm internal diameter for compatible encoder installations. The aluminium wheel uses a PU measuring surface with 90 Shore A hardness. Its compact construction provides reliable performance for industrial automation and continuous material movement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60138 works with compatible encoders to measure the movement of belts and other continuously moving materials. Its defined circumference provides a consistent measurement reference for monitoring linear travel and machine speed.
The measuring wheel uses an aluminium body with a PU surface designed for industrial contact applications. The 90 Shore A surface hardness provides durability while supporting consistent measurement during repeated machine operation.
The 200 mm circumference and 63.66 mm external diameter provide a compact measuring solution. The 10 mm internal diameter supports integration with suitable encoder shaft arrangements.
Product Type: Measuring wheel
Model: E60138
Circumference: 200 mm
Outside Diameter: 63.66 mm
Inside Diameter: 10 mm
Wheel Material: Aluminium
Surface Material: PU
Surface Hardness: 90 Shore A
Design: Grooved plastic
Operating Temperature: -30 to 80 °C
Accurate linear measurement
Reliable belt-speed monitoring
Durable measuring surface
Compact machine integration
Belt-speed measurement
Linear distance measurement
Material handling
Conveyor systems
Packaging machinery
Printing equipment
Transversal cutting applications
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E60138 |
| Product Type | Measuring Wheel |
| Designation | MEASURING WHEEL U:200 N:10 |
| Design | Grooved plastic |
| Circumference | 200 mm |
| Outside Diameter | 63.66 mm |
| Inside Diameter | 10 mm |
| Wheel Material | Aluminium |
| Surface Material | PU |
| Surface Hardness | 90 Shore A |
| Mounting Screw Torque | 1.5 Nm |
| Ambient Temperature | -30 to 80 °C |
| Weight | Approx. 61.3 g |
| Pack Quantity | 1 Piece |
