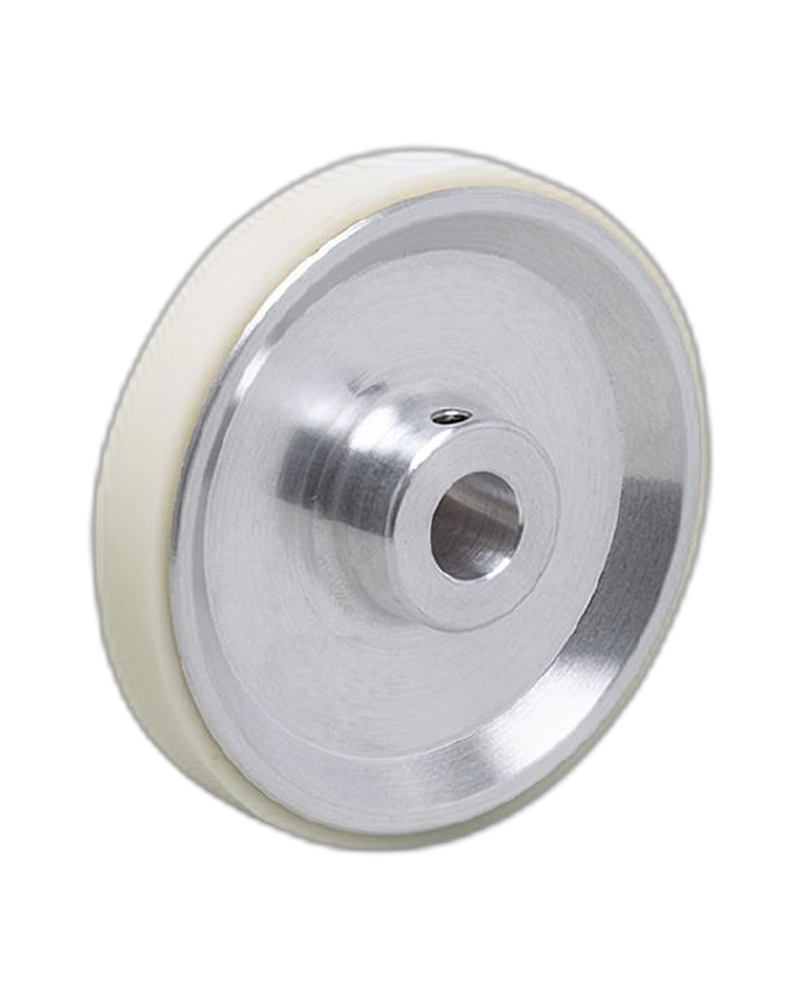

The IFM E60137 measuring wheel is designed for use with compatible encoders in accurate linear measurement applications. It provides a 200 mm circumference and a 6 mm internal diameter for encoder integration. The aluminium wheel features a grooved PU measuring surface with 90 Shore A hardness. Its compact and durable construction makes it suitable for belt-speed measurement and automated material handling.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60137 is designed to work with encoders to convert linear movement into rotary measurement. This enables accurate monitoring of material travel, belt movement and machine feed operations in automated production systems.
The measuring wheel features a grooved plastic design with a PU surface. The 90 Shore A surface hardness provides a durable contact surface for continuous industrial measurement applications.
With a 200 mm circumference and approximately 63.66 mm outside diameter, the E60137 provides a compact measurement solution. Its 6 mm internal diameter allows installation with compatible encoder shaft configurations.
Product Type: Measuring wheel
Model: E60137
Circumference: 200 mm
Outside Diameter: 63.66 mm
Inside Diameter: 6 mm
Wheel Material: Aluminium
Surface Material: PU
Surface Hardness: 90 Shore A
Design: Grooved plastic
Operating Temperature: -30 to 80 °C
Suitable for encoder measurement
Accurate linear movement monitoring
Durable measuring surface
Compact industrial construction
Belt-speed measurement
Linear distance measurement
Material feed monitoring
Transversal cutting systems
Conveyor systems
Packaging machinery
Printing machinery
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E60137 |
| Product Type | Measuring Wheel |
| Designation | MEASURING WHEEL U:200 N:06 |
| Design | Grooved plastic |
| Circumference | 200 mm |
| Outside Diameter | 63.66 mm |
| Inside Diameter | 6 mm |
| Wheel Material | Aluminium |
| Surface Material | PU |
| Surface Hardness | 90 Shore A |
| Ambient Temperature | -30 to 80 °C |
| Weight | Approx. 64.5 g |
| Pack Quantity | 1 Piece |
