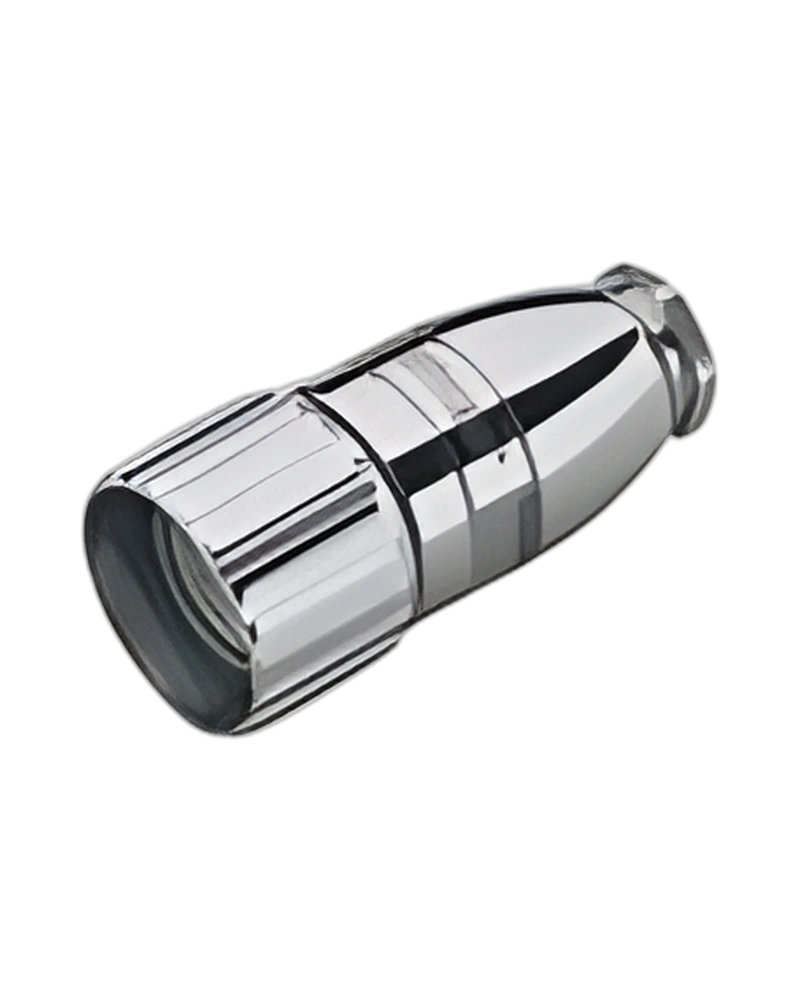

The IFM E60136 is a robust straight wirable socket designed for incremental encoders with M23 connectors. Its nickel-plated brass construction provides enhanced mechanical durability for industrial installations. The socket supports solder connections and operates across a wide temperature range from -40 to 125 °C. IP67 protection makes it suitable for reliable encoder connectivity in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60136 provides a reliable connection interface for incremental encoders using an M23 connector. Its solder-type connection allows custom cable assemblies and supports secure electrical integration in machine automation systems.
Unlike plastic-coated variants, the E60136 uses nickel-plated brass for the body and nut. This provides a strong mechanical construction suitable for industrial equipment where connector durability and long-term reliability are important.
The IP67 protection rating helps protect the connector against dust and water ingress. Its wide -40 to 125 °C operating temperature range makes the socket suitable for demanding industrial operating conditions.
Product Type: Wirable socket
Model: E60136
Connector: M23
Application: Incremental encoders
Design: Straight
Body Material: Nickel-plated brass
Operating Voltage: 4.5–30 V DC
Protection Rating: IP67
Operating Temperature: -40 to 125 °C
Electrical Connection: Soldering
Cable Capacity: Up to 1 mm²
Strong metal construction
Reliable encoder connectivity
Wide temperature range
Suitable for harsh industrial environments
Incremental encoder connection
Industrial automation
Machine-building equipment
Motion-control systems
Rotary position measurement
Encoder feedback
Factory automation
Speed monitoring systems
| Specification | Details |
|---|---|
| Product Code | E60136 |
| Product Designation | SDOGK120MKRFKSG |
| Product Type | Wirable Socket |
| Connector | M23 |
| Application | Incremental Encoders |
| Design | Straight |
| Operating Voltage | 4.5–30 V DC |
| Protection Rating | IP67 |
| Ambient Temperature | -40 to 125 °C |
| Housing Material | Nickel-plated brass |
| Nut Material | Nickel-plated brass |
| Electrical Connection | Soldering |
| Cable Cross-Section | Up to 1 mm² |
| Cable Diameter | Ø 4.5–6 mm |
| Weight | Approx. 80 g |
| Pack Quantity | 1 Piece |
