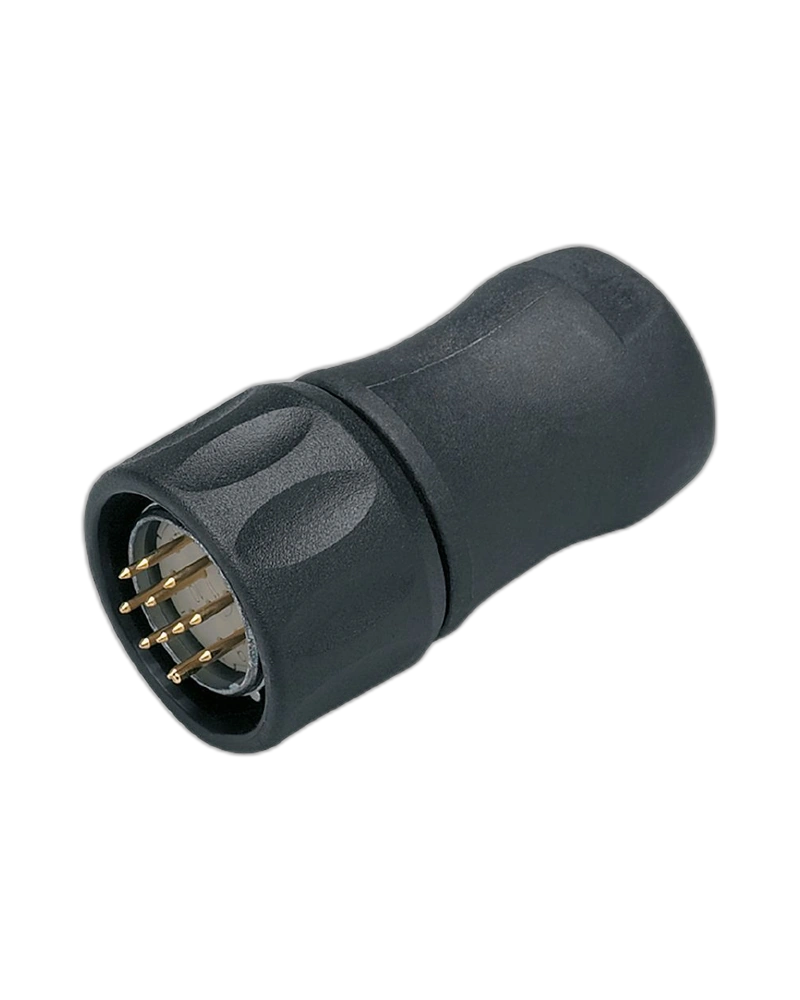

The IFM E60128 is a straight wirable plug for incremental encoders equipped with an M23 connector. It provides reliable solder-based cable termination for customized encoder connections. The robust brass and PA 6.6 construction is designed for industrial use. IP67 protection and a wide temperature range make it suitable for demanding automation and machine-building applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60128 provides a solder-based connection for custom cable assemblies. This arrangement supports dependable electrical contact and allows the connector to be configured according to specific encoder installation requirements.
Its straight M23 connector design provides direct and convenient integration with compatible encoder systems. The compact dimensions help simplify installation within machinery and automation panels.
The connector incorporates brass and PA 6.6 materials and provides IP67 protection. This helps protect the connection from dust and water exposure while supporting reliable operation across a broad industrial temperature range.
Product Type: Wirable plug
Model: E60128
Connector: M23
Application: Incremental encoders
Design: Straight
Operating Voltage: 4.5–30 V DC
Protection Rating: IP67
Operating Temperature: -40 to 125 °C
Electrical Connection: Soldering
Cable Cross-Section: Up to 1 mm²
Reliable custom cable connection
Robust connector construction
Suitable for harsh environments
Compact industrial design
Incremental encoder connections
Industrial automation
Machine-building systems
Motion-control applications
Rotary measurement
Position feedback
Factory automation
Speed monitoring equipment
| Specification | Details |
|---|---|
| Product Code | E60128 |
| Product Designation | SSTGK120MKRFKSG |
| Product Type | Wirable Plug |
| Connector | M23 |
| Application | Incremental Encoders |
| Design | Straight |
| Operating Voltage | 4.5–30 V DC |
| Protection Rating | IP67 |
| Ambient Temperature | -40 to 125 °C |
| Dimensions | Approx. 28 × 28 × 52 mm |
| Housing Material | Brass / PA 6.6 |
| Electrical Connection | Soldering |
| Cable Cross-Section | Up to 1 mm² |
| Weight | Approx. 45.2 g |
| Pack Quantity | 1 Piece |
