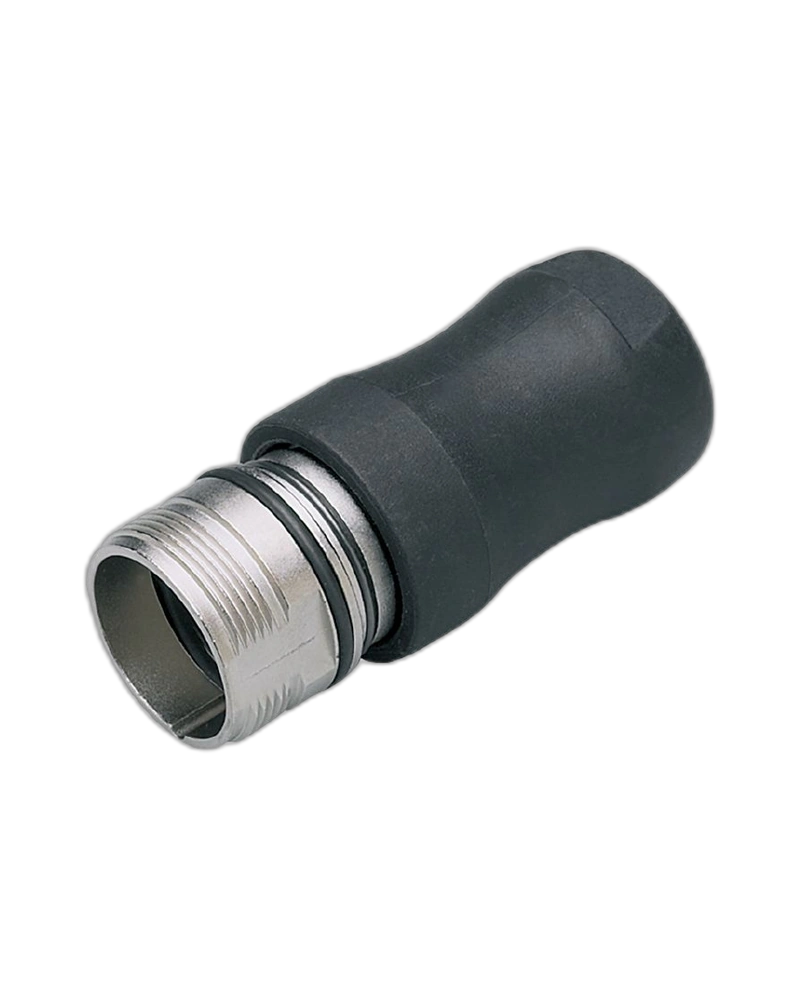

The IFM E60124 is a straight wirable socket designed for incremental encoders with M23 connectors. It provides a secure solder-type connection for flexible encoder cable assembly. The plastic-coated brass and PA 6.6 construction provides durability for industrial applications. IP67 protection and a -40 to 125 °C operating range support dependable performance in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60124 is designed to connect compatible incremental encoders with custom wiring. Its solder connection provides a dependable electrical interface and supports flexible cable installation in industrial automation equipment.
The straight configuration provides direct cable routing from the encoder connection. This makes the socket suitable for machine assemblies where a straightforward connector arrangement is preferred.
The socket combines brass and PA 6.6 materials with a protective plastic-coated construction. Its IP67 protection helps protect the connection against dust and temporary water exposure in industrial environments.
Product Type: Wirable socket
Model: E60124
Connector: M23
Application: Incremental encoders
Design: Straight
Operating Voltage: 4.5–30 V DC
Protection: IP67
Operating Temperature: -40 to 125 °C
Electrical Connection: Soldering
Cable Capacity: Up to 1 mm²
Reliable encoder connectivity
Robust construction
Wide operating temperature range
Suitable for industrial environments
Incremental encoder connections
Automation machinery
Motion-control equipment
Rotary position measurement
Industrial machine building
Factory automation
Speed monitoring systems
Encoder feedback applications
| Specification | Details |
|---|---|
| Product Code | E60124 |
| Product Designation | SDOGK120--LFKSG |
| Product Type | Wirable Socket |
| Connector | M23 |
| Application | Incremental Encoders |
| Design | Straight |
| Operating Voltage | 4.5–30 V DC |
| Protection Rating | IP67 |
| Ambient Temperature | -40 to 125 °C |
| Dimensions | Approx. 28 × 28 × 53 mm |
| Housing Material | Brass / PA 6.6 |
| Electrical Connection | Soldering |
| Cable Cross-Section | Up to 1 mm² |
| Weight | Approx. 45 g |
| Pack Quantity | 1 Piece |
