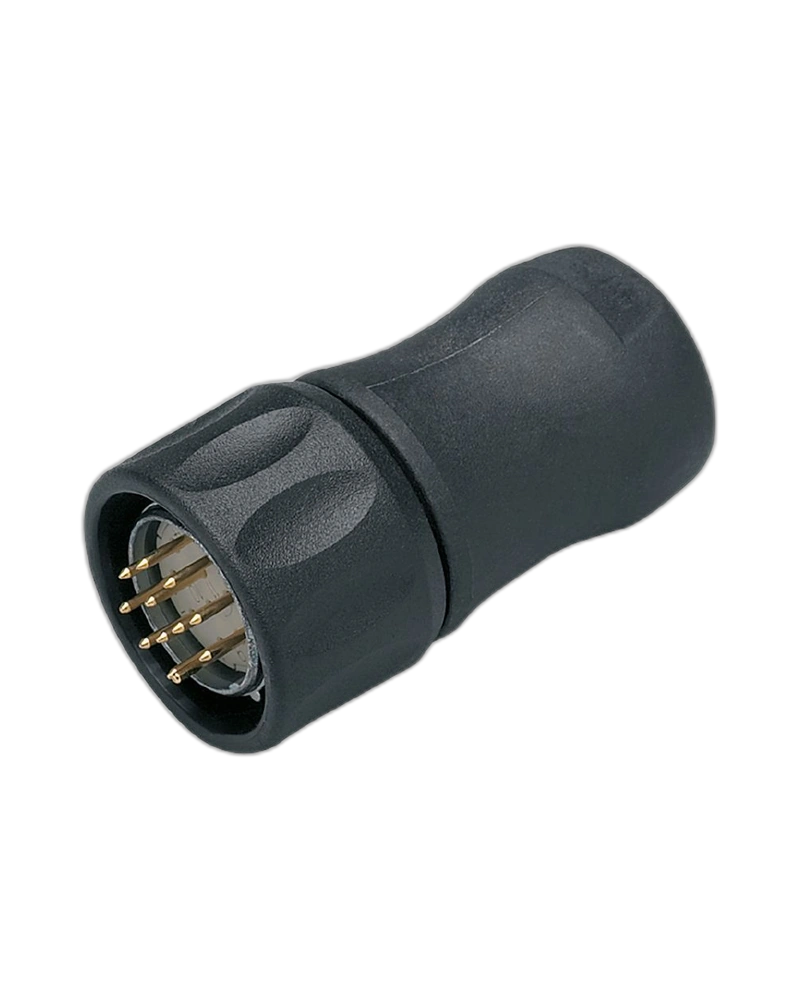

The IFM E60123 is a straight wirable plug designed for incremental encoders with an M23 connection. It provides a dependable solder connection for custom encoder cable assemblies. Its robust construction, IP67 protection and broad temperature range make it suitable for industrial automation environments. The compact plug design supports reliable integration into encoder and motion-control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60123 is designed to provide a secure connection between compatible encoder equipment and custom wiring. Its solder connection supports stable electrical contact and allows flexible cable preparation according to machine requirements.
The straight M23 configuration allows convenient installation in encoder systems where a direct cable connection is preferred. Its compact construction helps simplify integration within automation equipment and machine assemblies.
The plug uses brass and PA 6.6 construction with a protective plastic sheath. The IP67 rating helps protect the connection against dust and water ingress, while the -40 to 125 °C temperature range supports demanding industrial applications.
Product Type: Wirable plug
Model: E60123
Connector: M23
Application: Incremental encoders
Design: Straight
Electrical Connection: Soldering
Operating Voltage: 4.5–30 V DC
Protection Rating: IP67
Operating Temperature: -40 to 125 °C
Cable Cross-Section: Up to 1 mm²
Reliable solder connection
Compact encoder connection
Suitable for industrial environments
Incremental encoder systems
Industrial automation
Motion-control systems
Rotary measurement equipment
Machine-building applications
Encoder feedback systems
Factory machinery
Position and speed monitoring
| Specification | Details |
|---|---|
| Product Code | E60123 |
| Product Designation | SSTGK120MKRFKSG |
| Product Type | Wirable Plug |
| Connector | M23 |
| Application | Incremental Encoders |
| Design | Straight |
| Operating Voltage | 4.5–30 V DC |
| Protection Rating | IP67 |
| Ambient Temperature | -40 to 125 °C |
| Dimensions | Approx. 28 × 28 × 52 mm |
| Housing Material | Brass / PA 6.6 |
| Electrical Connection | Soldering |
| Cable Cross-Section | Up to 1 mm² |
| Weight | Approx. 44.8 g |
| Pack Quantity | 1 Piece |
