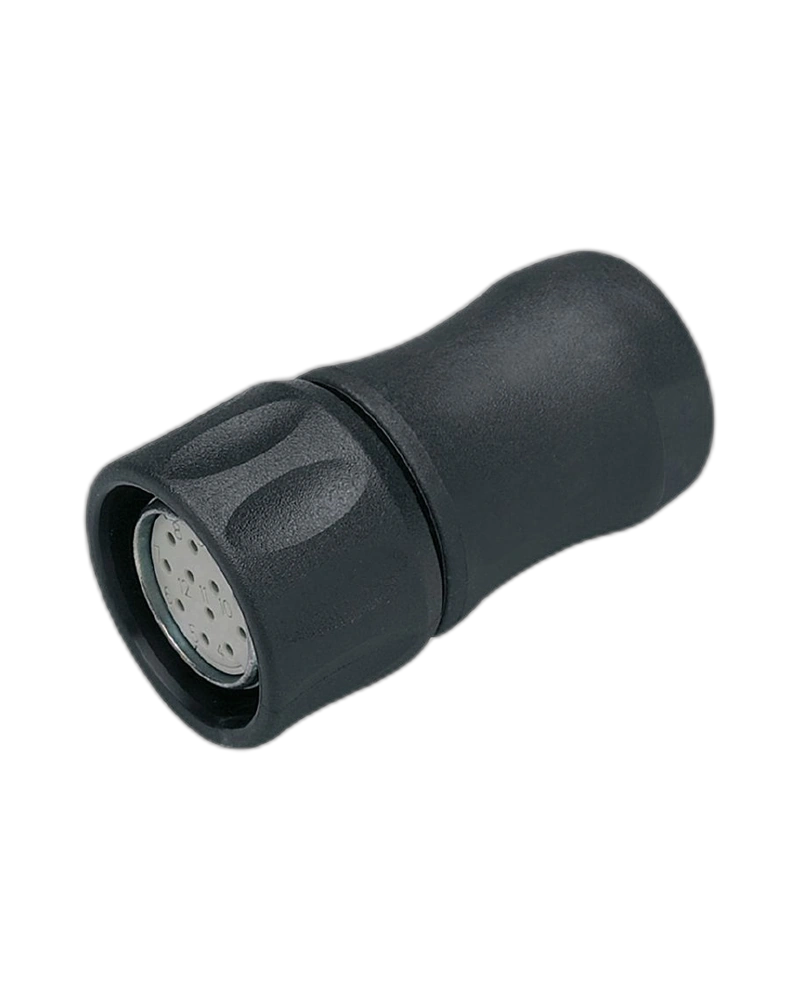

The IFM E60122 is a straight wirable socket designed for incremental encoders with an M23 connection. It provides a reliable solder connection for custom cable assembly and encoder integration. The robust construction and IP67 protection make it suitable for demanding industrial environments. Its wide operating temperature range supports reliable operation in automated machinery and motion-control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60122 provides a practical connection solution for incremental encoders using an M23 connector. Its solder-type cable connection enables secure and stable electrical integration with custom wiring arrangements. This makes it suitable for machine builders and automation engineers requiring flexible encoder connectivity.
The socket features a straight design with a robust body constructed from plastic-coated brass and black PA 6.6 components. This construction provides mechanical durability while maintaining a practical form for industrial installations. The compact design allows easy integration into encoder connection systems.
With an IP67 degree of protection, the E60122 is designed to withstand dust and temporary water exposure. Its operating temperature range of -40 to 125 °C allows reliable use across demanding industrial conditions. This makes it suitable for factory automation and machine-building applications.
Product Type: Wirable socket
Model: E60122
Connection Type: M23
Application: Incremental encoders
Design: Straight
Electrical Connection: Soldering
Operating Voltage: 4.5–30 V DC
Protection Rating: IP67
Operating Temperature: -40 to 125 °C
Cable Compatibility: Up to 1 mm², Ø 8 mm
Reliable custom cable connection
Robust industrial construction
Suitable for harsh environments
Incremental encoder connection
Industrial automation systems
Motion-control equipment
Machine-building applications
Position measurement systems
Rotary speed monitoring
Factory automation equipment
Encoder feedback systems
| Specification | Details |
|---|---|
| Product Code | E60122 |
| Product Designation | SDOGK120MKRFKSG |
| Product Type | Wirable Socket |
| Connector | M23 |
| Application | Incremental Encoders |
| Design | Straight |
| Operating Voltage | 4.5–30 V DC |
| Protection Rating | IP67 |
| Ambient Temperature | -40 to 125 °C |
| Housing Material | Brass, plastic-coated; PA 6.6 black |
| Electrical Connection | Soldering |
| Cable Cross-Section | Up to 1 mm² |
| Cable Diameter | Ø 8 mm |
| Weight | Approx. 43 g |
| Pack Quantity | 1 Piece |
