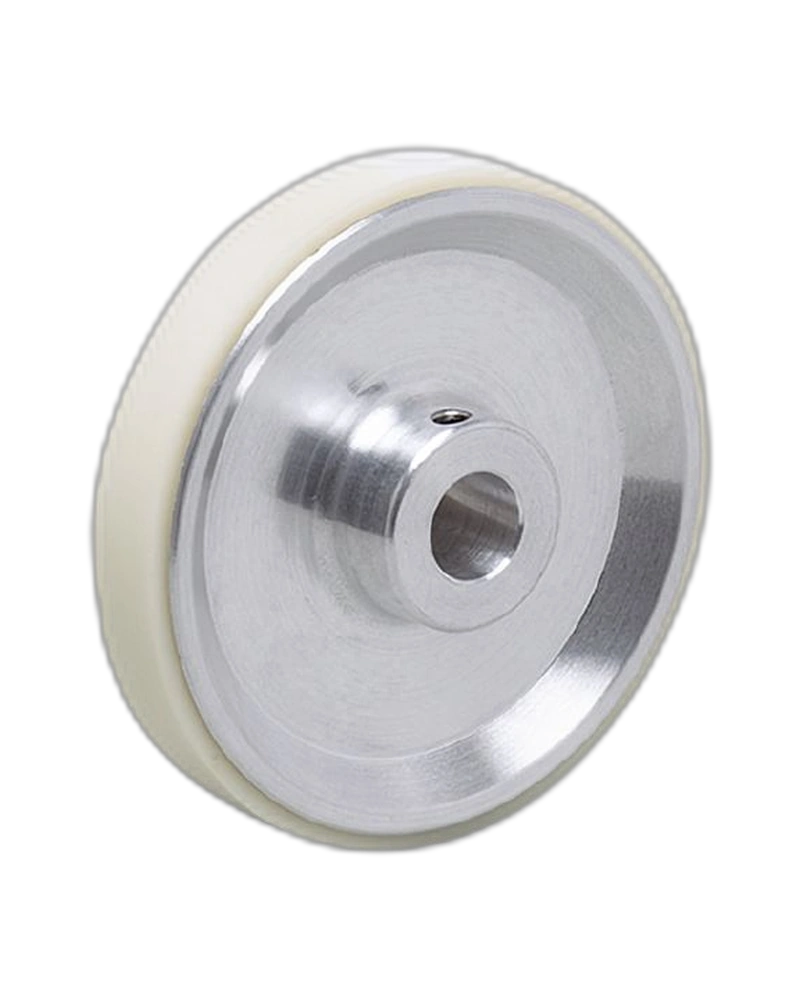

The IFM E60112 measuring wheel is designed for accurate linear measurement and belt-speed monitoring in industrial automation systems. It provides a 200 mm circumference with a 10 mm internal diameter for compatible encoder installations. The aluminium wheel incorporates a PU measuring surface with 90 Shore A hardness. Its compact construction supports reliable measurement in automated machinery and material-handling applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60112 converts linear movement into rotary measurement when combined with a suitable encoder. This allows machine builders to monitor material movement, feed distance and other linear processes with consistent measurement results.
The 200 mm circumference and approximately 63.66 mm outside diameter make the E60112 suitable for compact machine assemblies. Its 10 mm internal diameter allows integration with compatible encoder shafts.
The measuring wheel uses an aluminium body with a PU surface. The 90 Shore A surface hardness provides a durable contact surface for industrial measurement applications and repeated operation.
Product Type: Measuring wheel
Designation: MEASURING WHEEL U:200 N:10
Circumference: 200 mm
Outside Diameter: 63.66 mm
Inside Diameter: 10 mm
Wheel Material: Aluminium
Surface Material: PU 1.5
Surface Hardness: 90 Shore A
Mounting Screw Tightening Torque: 1.5 Nm
Ambient Temperature: -30 to 80 °C
Compact industrial design
Reliable encoder-based measurement
Linear movement measurement
Belt-speed monitoring
Material feed measurement
Conveyor systems
Packaging machinery
Printing equipment
Industrial automation
Material handling systems
| Specification | Details |
|---|---|
| Product Code | E60112 |
| Product Type | Measuring Wheel |
| Designation | MEASURING WHEEL U:200 N:10 |
| Design | Smooth plastic |
| Circumference | 200 mm |
| Outside Diameter | 63.66 mm |
| Inside Diameter | 10 mm |
| Wheel Material | Aluminium |
| Surface Material | PU 1.5 |
| Surface Hardness | 90 Shore A |
| Mounting Screw Tightening Torque | 1.5 Nm |
| Ambient Temperature | -30 to 80 °C |
| Weight | Approx. 61.5 g |
| Pack Quantity | 1 Piece |
