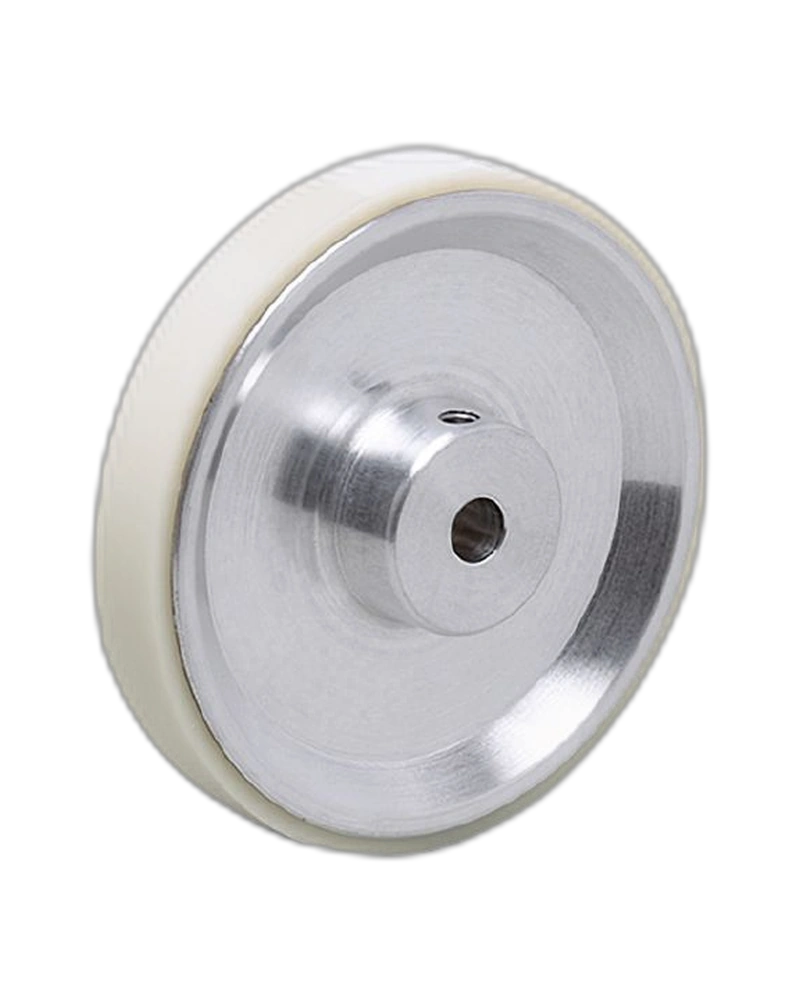

The IFM E60111 measuring wheel is designed for accurate linear measurement and belt-speed monitoring when used with compatible encoders. It provides a 200 mm circumference and a 6 mm internal diameter for suitable encoder shaft connections. The aluminium wheel incorporates a durable PU measuring surface. Its compact construction makes it suitable for automated machinery and industrial measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60111 works with compatible encoders to convert linear movement into rotary measurement. This enables reliable monitoring of material movement, feed distance and belt speed in automated production equipment.
With a circumference of 200 mm and an outside diameter of approximately 63.66 mm, the E60111 provides a compact measurement solution. The 6 mm internal diameter allows it to be used with compatible encoder shaft arrangements.
The aluminium wheel features a PU surface designed for consistent contact with moving materials. Its robust construction supports dependable performance in industrial environments.
Product Type: Measuring wheel
Designation: MEASURING WHEEL U:200 N:06
Circumference: 200 mm
Outside Diameter: 63.66 mm
Inside Diameter: 6 mm
Wheel Material: Aluminium
Surface Material: PU
Surface Hardness: 90 Shore A
Ambient Temperature: -30 to 80 °C
Compact construction
Suitable for encoder applications
Accurate linear measurement
Suitable for belt-speed monitoring
Linear distance measurement
Belt speed measurement
Material feed monitoring
Conveyor equipment
Packaging machinery
Printing machinery
Industrial automation
Encoder measurement systems
| Specification | Details |
|---|---|
| Product Code | E60111 |
| Product Type | Measuring Wheel |
| Designation | MEASURING WHEEL U:200 N:06 |
| Circumference | 200 mm |
| Outside Diameter | 63.66 mm |
| Inside Diameter | 6 mm |
| Wheel Material | Aluminium |
| Surface Material | PU |
| Surface Hardness | 90 Shore A |
| Ambient Temperature | -30 to 80 °C |
| Weight | Approx. 61.5 g |
| Pack Quantity | 1 Piece |
