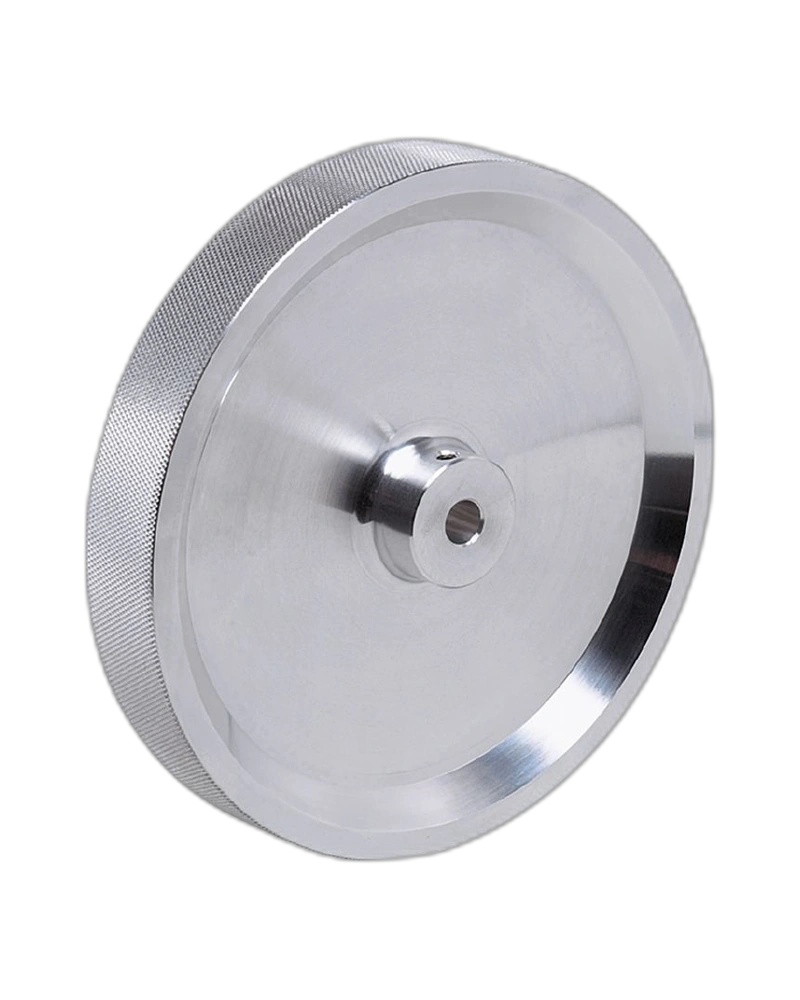

The IFM E60110 measuring wheel is designed for precise linear and belt-speed measurement when used with compatible encoders. It provides a 500 mm circumference and a 10 mm internal diameter for encoder integration. The aluminium wheel features a PU measuring surface with 90 Shore A hardness. Its robust construction makes it suitable for demanding industrial environments and continuous automated measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60110 is designed for use with encoders to provide accurate belt-speed measurement. The measuring wheel follows the movement of the belt or material and transfers the resulting rotary movement to the connected encoder.
The 500 mm circumference provides a consistent measuring reference for applications requiring accurate linear movement measurement. This makes the wheel suitable for processes where material travel, feed distance or cutting position needs to be monitored.
The aluminium wheel incorporates a PU surface with 90 Shore A hardness. This provides a durable contact surface for industrial applications while supporting reliable interaction with moving materials.
Product Type: Measuring wheel
Designation: MEASURING WHEEL U:500 N:10
Circumference: 500 mm
Outside Diameter: 159.15 mm
Inside Diameter: 10 mm
Wheel Material: Aluminium
Surface Material: PU
Surface Hardness: 90 Shore A
Design: Smooth plastic
Ambient Temperature: -30 to 80 °C
Suitable for exact belt-speed measurement
Suitable for linear measurement
Robust industrial construction
Belt speed measurement
Linear distance measurement
Transversal cutting processes
Conveyor systems
Material handling machinery
Packaging machinery
Printing equipment
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E60110 |
| Product Type | Measuring Wheel |
| Designation | MEASURING WHEEL U:500 N:10 |
| Design | Smooth plastic |
| Circumference | 500 mm |
| Outside Diameter | 159.15 mm |
| Inside Diameter | 10 mm |
| Wheel Material | Aluminium |
| Surface Material | PU |
| Surface Hardness | 90 Shore A |
| Mounting Screw Tightening Torque | 3 Nm |
| Ambient Temperature | -30 to 80 °C |
| Weight | Approx. 536 g |
| Pack Quantity | 1 Piece |
