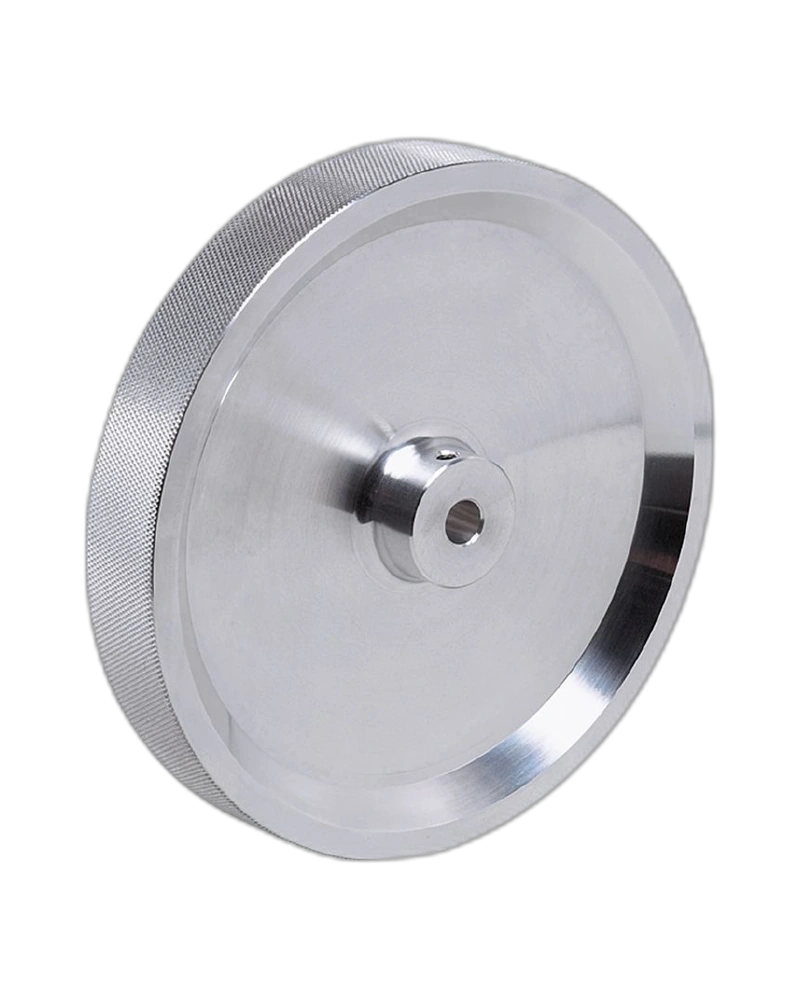

The IFM E60098 measuring wheel is designed for encoder-based measurement of linear movement, material travel and machine speed. It provides a 500 mm circumference and a 10 mm internal diameter for compatible encoder installations. The aluminium construction offers a robust solution for demanding industrial applications. Its cross-knurled surface supports reliable mechanical contact during measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60098 is designed to work with compatible encoders for measuring linear movement and material travel. The 500 mm circumference provides a consistent measurement reference as the wheel rotates against the moving surface.
The 500 mm circumference and approximately 159.15 mm outside diameter make this measuring wheel suitable for applications requiring continuous material movement monitoring. Its design can be integrated into conveyor, production and material-handling equipment.
The wheel is manufactured from aluminium and features a cross-knurled surface. This provides a durable mechanical solution for industrial environments where reliable contact between the measuring wheel and moving material is required.
Product Type: Measuring wheel
Designation: MEASURING WHEEL U:500 N:10
Circumference: 500 mm
Outside Diameter: 159.15 mm
Inside Diameter: 10 mm
Wheel Material: Aluminium
Surface Characteristics: Aluminium
Design: Cross-knurl
Ambient Temperature: -30 to 80 °C
Robust industrial construction
Suitable for encoder applications
Consistent linear measurement
Linear movement measurement
Material-length measurement
Belt speed measurement
Conveyor systems
Industrial automation
Production machinery
Material handling equipment
Encoder-based measurement systems
| Specification | Details |
|---|---|
| Product Code | E60098 |
| Product Type | Measuring Wheel |
| Designation | MEASURING WHEEL U:500 N:10 |
| Circumference | 500 mm |
| Outside Diameter | 159.15 mm |
| Inside Diameter | 10 mm |
| Wheel Material | Aluminium |
| Surface Characteristics | Aluminium |
| Surface Design | Cross-knurl |
| Ambient Temperature | -30 to 80 °C |
| Weight | Approx. 551.5 g |
| Pack Quantity | 1 Piece |
