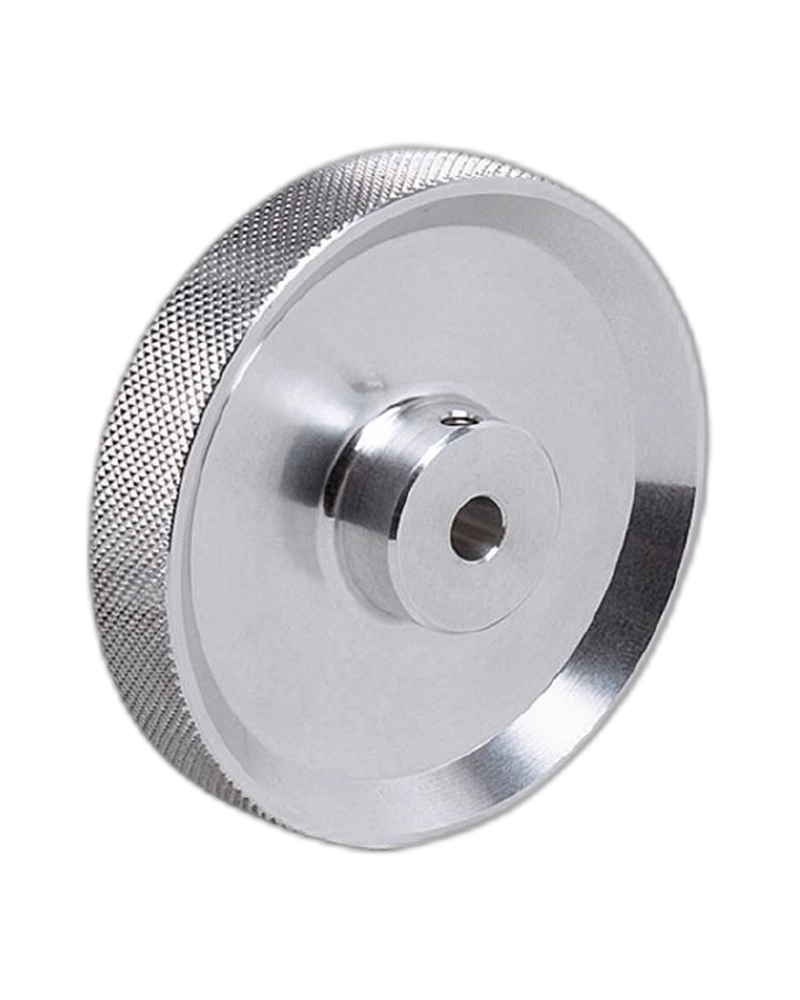

The IFM E60095 measuring wheel is designed for use with compatible encoders in industrial linear measurement applications. It provides a 200 mm circumference for converting linear movement into rotary measurement. The aluminium wheel offers a durable and lightweight construction for machine integration. Its compact design makes it suitable for accurate material movement and speed measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60095 works in combination with suitable encoders to measure linear movement and material travel. As the measuring wheel rotates against a moving surface, the connected encoder can convert the rotary movement into measurable position or distance information. This supports reliable monitoring in automated machinery.
With a 200 mm circumference and approximately 63.6 mm outside diameter, the wheel provides a practical solution for applications requiring compact measuring components. Its 10 mm internal diameter allows integration with compatible encoder shafts and mounting arrangements.
The measuring wheel is manufactured from aluminium, providing a robust mechanical structure while keeping the component relatively lightweight. The cross-knurled surface provides suitable mechanical contact for industrial measurement applications.
Product Type: Measuring wheel
Designation: MEASURING WHEEL U:200 N:10
Circumference: 200 mm
Outside Diameter: 63.6 mm
Inside Diameter: 10 mm
Wheel Material: Aluminium
Surface Characteristics: Aluminium
Design: Cross-knurl
Ambient Temperature: -30 to 80 °C
Compact construction
Suitable for encoder-based measurement
Reliable linear movement measurement
Linear distance measurement
Material movement monitoring
Belt speed measurement
Encoder measurement systems
Conveyor applications
Industrial automation
Machine-building equipment
Production-line monitoring
| Specification | Details |
|---|---|
| Product Code | E60095 |
| Product Type | Measuring Wheel |
| Designation | MEASURING WHEEL U:200 N:10 |
| Circumference | 200 mm |
| Outside Diameter | 63.6 mm |
| Inside Diameter | 10 mm |
| Wheel Material | Aluminium |
| Surface Characteristics | Aluminium |
| Surface Design | Cross-knurl |
| Ambient Temperature | -30 to 80 °C |
| Weight | Approx. 64 g |
| Pack Quantity | 1 Piece |
