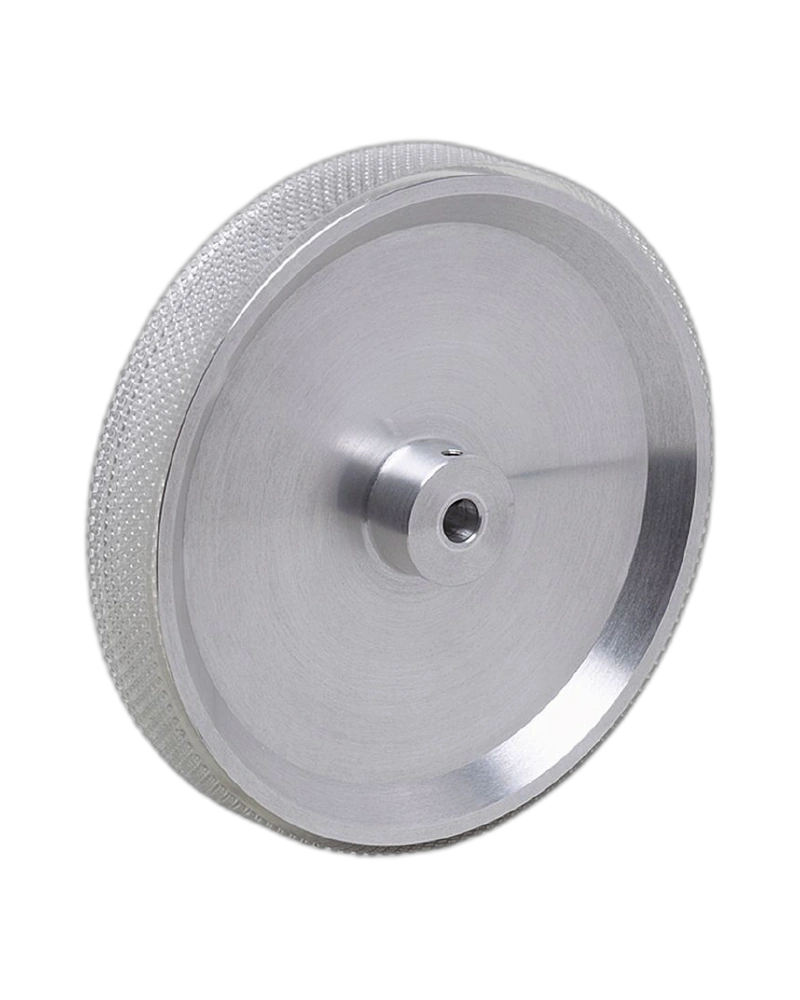

The IFM E60076 is a precision measuring wheel designed for encoder-based measurement of linear movement, material length and web speed. It features a 500 mm circumference and an aluminium wheel body with a PU measuring surface. The 60 Shore A surface hardness provides a suitable contact characteristic for industrial measurement applications. Its robust construction supports reliable operation across a wide industrial temperature range.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60076 converts linear movement into rotary movement when used with a compatible encoder. This enables reliable measurement of material length, feed distance and web speed in automated machinery.
The wheel features a PU 3 surface with a hardness of 60 Shore A. This provides a suitable contact surface for consistent interaction with moving materials and helps support repeatable measurement results.
The measuring wheel uses aluminium for its primary wheel construction, providing a strong yet lightweight mechanical design. Its 500 mm circumference and approximately 159.16 mm outside diameter make it suitable for accurate rotational measurement.
The E60076 can be integrated into different machine configurations where linear movement needs to be monitored electronically. It is suitable for material handling, packaging, printing, conveying and other automated production systems.
Product Type: Encoder measuring wheel
Circumference: 500 mm
Outside Diameter: Approximately 159.16 mm
Inside Diameter: 10 mm
Wheel Material: Aluminium
Surface Material: PU 3
Surface Hardness: 60 Shore A
Ambient Temperature: -30 to 80 °C
Suitable for linear distance measurement
Suitable for material-length measurement
Suitable for web-speed measurement
Reliable mechanical construction
Linear movement measurement
Material length measurement
Web-speed monitoring
Conveyor systems
Packaging machinery
Printing machinery
Material handling equipment
Textile machinery
Industrial automation
Encoder-based measurement systems
| Specification | Details |
|---|---|
| Product Code | E60076 |
| Product Type | Measuring Wheel |
| Designation | MEASURING WHEEL U:500 N:10 |
| Circumference | 500 mm |
| Outside Diameter | Approx. 159.16 mm |
| Inside Diameter | 10 mm |
| Wheel Material | Aluminium |
| Surface Material | PU 3 |
| Surface Hardness | 60 Shore A |
| Ambient Temperature | -30 to 80 °C |
| Application | Linear and rotary measurement |
| Weight | Approx. 519 g |
| Quantity | 1 Piece |
