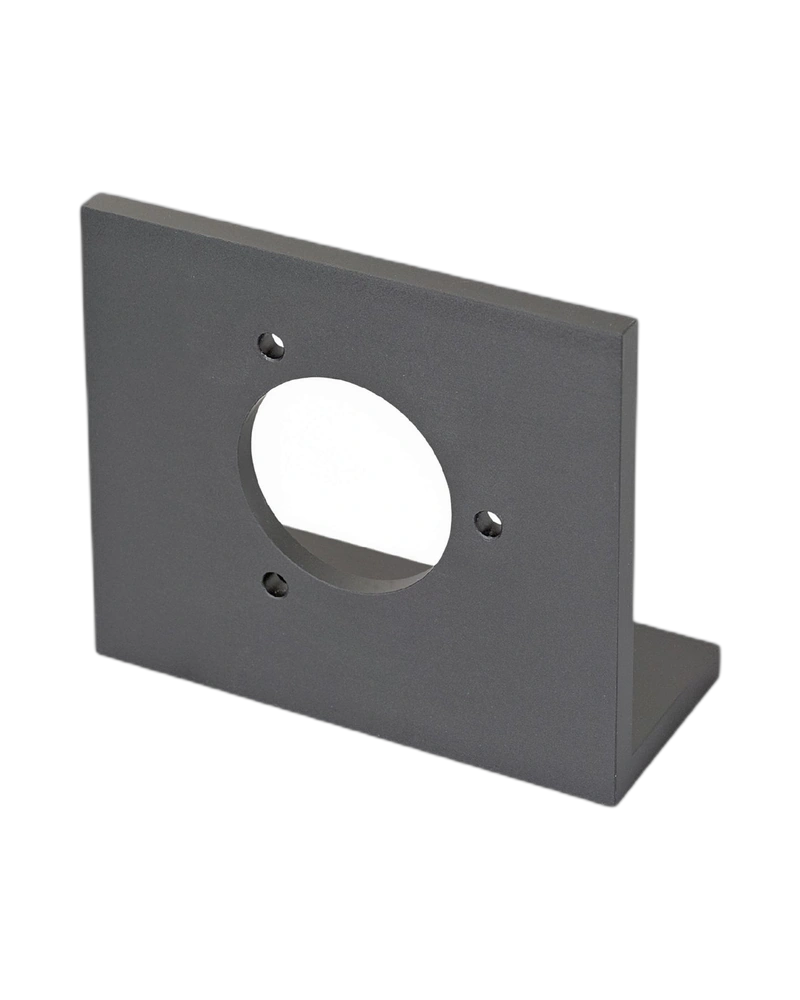

The IFM E60035 is an angle flange designed for secure mechanical installation of compatible RV and RMV encoders. It provides a stable mounting arrangement for integrating rotary encoders into industrial machinery and automation equipment. The flange is manufactured from aluminium and features a black anodised surface finish. Its compact design supports reliable encoder installation while maintaining efficient use of mounting space.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E60035 provides a dedicated mechanical mounting solution for compatible encoder assemblies. Its angle-bracket configuration helps position and secure the encoder correctly within the machine structure. This supports dependable mechanical alignment during rotary measurement and motion-control applications.
The angle flange is designed for compatible RV and RMV encoder configurations. Using a dedicated mounting accessory helps simplify encoder integration and provides a consistent mechanical installation method for industrial automation equipment.
The flange is manufactured from aluminium, providing a practical balance between mechanical strength and low weight. Its black anodised surface provides a professional finish and additional surface protection for industrial installation environments.
Product Type: Encoder angle flange
Compatible Encoder Series: RV and RMV
Material: Aluminium
Surface Finish: Black anodised
Dimensions: 80 × 90 × 40 mm
Stable mechanical encoder mounting
Compact mounting arrangement
Lightweight construction
Suitable for industrial automation equipment
Designed for reliable encoder integration
Rotary encoder mounting
Industrial automation machinery
Motion-control systems
Position measurement equipment
Rotary measurement applications
Machine-building applications
Factory automation systems
| Specification | Details |
|---|---|
| Product Code | E60035 |
| Product Type | Angle Flange |
| Application | Encoder Mounting |
| Compatible Design | RV / RMV |
| Material | Aluminium |
| Surface Finish | Black Anodised |
| Dimensions | 80 × 90 × 40 mm |
| Weight | Approx. 143.4 g |
| Quantity | 1 Piece |
