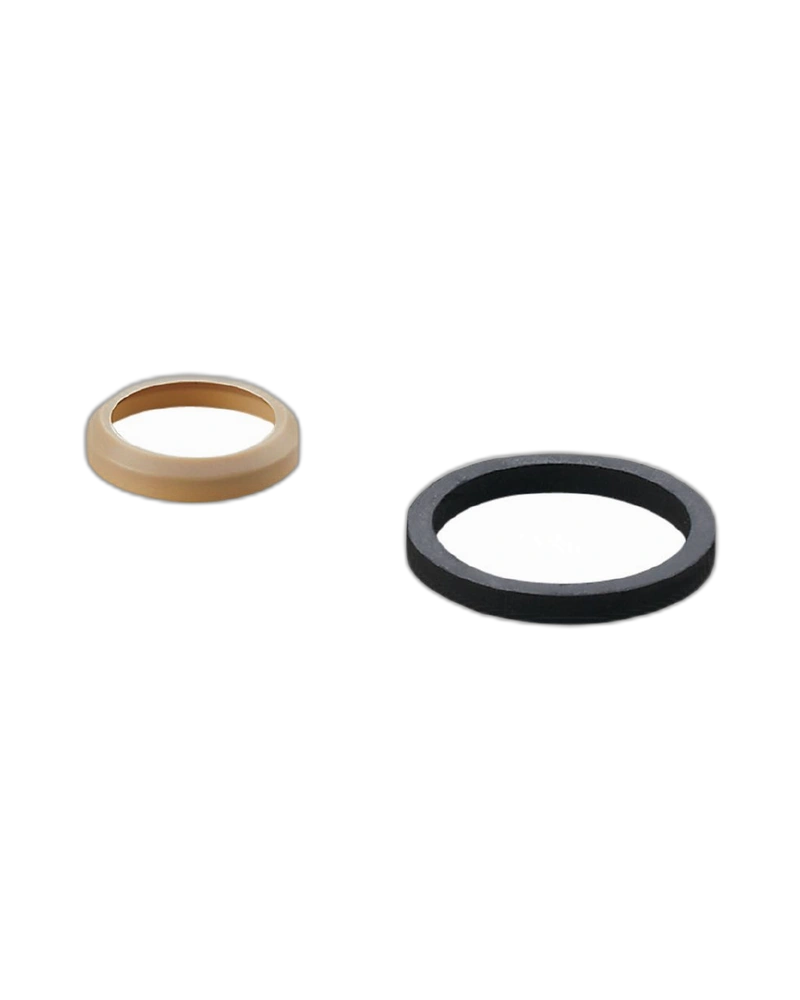

The IFM E43911 is a hygienic sealing ring designed for compatible process sensors and process connections. It uses PEEK on the process side and FKM on the sensor side to provide reliable sealing. The component is designed for applications requiring hygienic and secure sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43911 provides a dedicated sealing solution for compatible process sensor installations. It is designed to create a reliable seal between the sensor and process connection.
The sealing ring is designed for hygienic process installations and uses a PEEK material on the process side where it contacts the medium. This supports suitable hygienic applications.
The sensor-side sealing uses FKM, while the process-side sealing uses PEEK. This combination provides a practical sealing arrangement for compatible process connections.
The E43911 is designed for a G1/2 sealing cone and is used with compatible hygienic TA temperature transmitters and process fittings. IFM specifically recommends E43911 for TA25xx installations.
3A-compatible sealing ring
PEEK process-side material
FKM sensor-side sealing
Designed for G1/2 sealing cone
Hygienic application design
Compact sealing component
Reliable process sealing
Suitable for compatible TA sensors
Hygienic process systems
Temperature measurement
Food and beverage equipment
Process piping
TA temperature transmitters
Sanitary sensor installations
Industrial process automation
| Specification | Details |
|---|---|
| Product code | E43911 |
| Product type | Sealing ring |
| Design | 3A TA PEEK-RING |
| Sealing cone | G1/2 |
| Sensor-side material | FKM |
| Process-side material | PEEK |
| Weight | Approx. 4–4.5 g |
| Application | Hygienic process connection |
| Pack quantity | 1 pc. |
