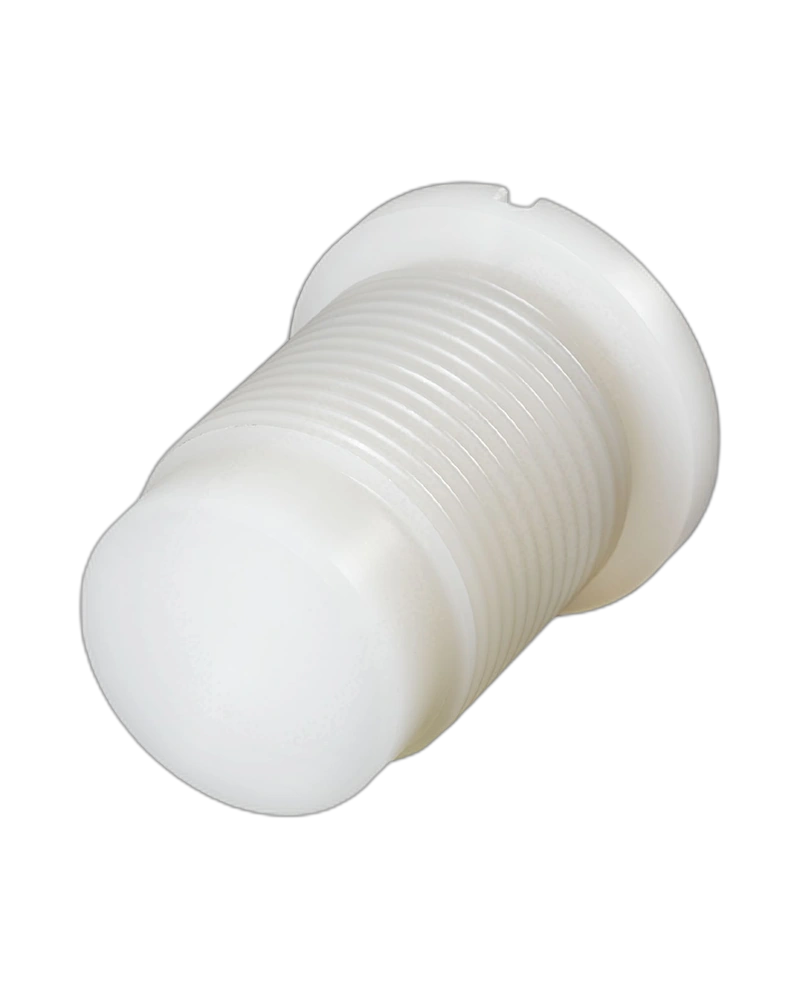

The IFM E43905 is a PVDF mounting adapter designed for installing compatible M18 × 1 capacitive sensors into process equipment. It provides a G1 process connection for secure mounting in tanks and vessels. The robust PVDF construction makes it suitable for demanding industrial level-detection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43905 provides a practical mounting interface between compatible M18 × 1 capacitive sensors and G1 process connections. It is designed to simplify sensor installation in suitable tanks, vessels and process equipment.
The adapter provides an internal M18 × 1 sensor connection and an external G1 process connection. This configuration supports stable positioning of compatible capacitive sensors during operation.
The mounting adapter is manufactured from PVDF, providing a lightweight and durable solution for suitable industrial installations. Its compact design supports convenient integration into process equipment.
The E43905 is suitable for capacitive level detection applications where reliable sensor mounting is required. The adapter supports a pressure rating of up to 8 bar and an ambient temperature range of -25 °C to +110 °C.
M18 × 1 sensor connection
G1 process connection
PVDF construction
8 bar pressure rating
Operating temperature up to +110 °C
Compact mounting design
Suitable for capacitive sensors
Reliable vessel installation
Designed for level detection
Capacitive level detection
Process tanks
Storage vessels
Industrial automation
Liquid level monitoring
Sensor mounting systems
Process control equipment
| Specification | Details |
|---|---|
| Product code | E43905 |
| Product type | Mounting adapter |
| Sensor connection | M18 × 1 |
| Process connection | G1 |
| Material | PVDF |
| Pressure rating | 8 bar |
| Ambient temperature | -25 to +110 °C |
| Tightening torque | 5 Nm |
| Application | Capacitive level detection |
| Pack quantity | 1 pc. |
