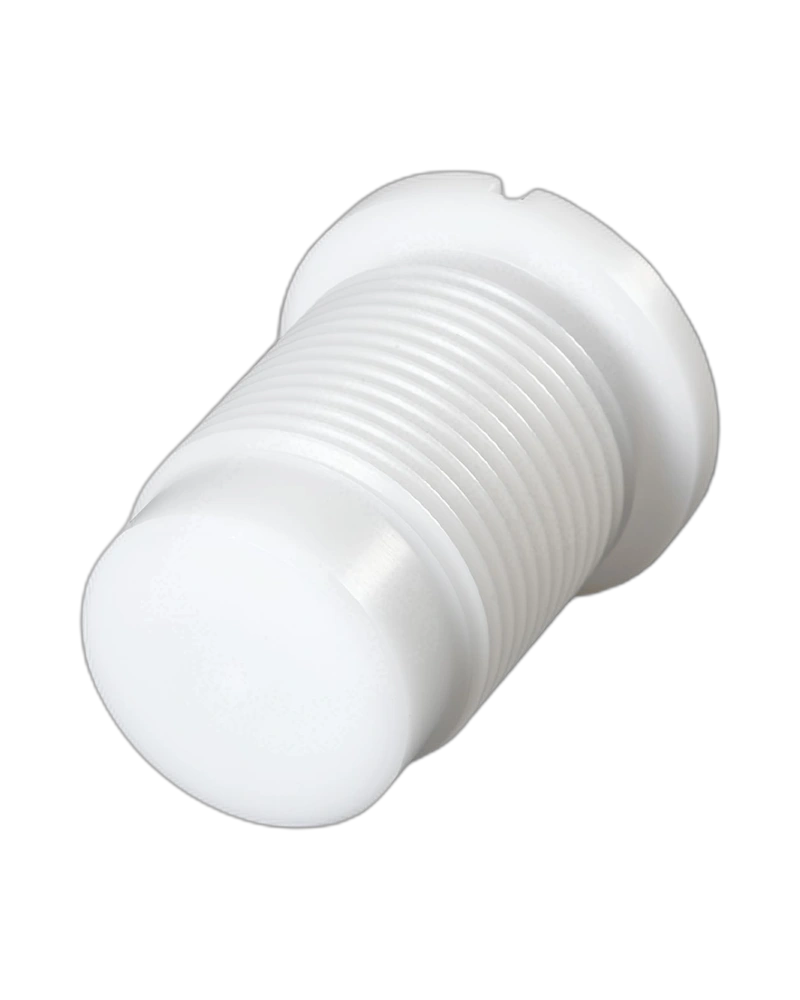

The IFM E43904 is a POM mounting adapter designed for installing compatible M18 × 1 capacitive sensors into process equipment. It provides a G1 process connection and supports reliable sensor positioning in tanks and vessels. Its compact construction is suitable for industrial level-detection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43904 provides a practical mounting interface between M18 × 1 capacitive sensors and G1 process connections. It is designed to simplify sensor installation in compatible vessel and tank applications.
The adapter incorporates an internal M18 × 1 connection for compatible sensors. Its G1 external process connection provides a secure interface with suitable process equipment.
The mounting adapter is manufactured from POM and provides a compact, lightweight installation solution. The material is suitable for compatible industrial mounting applications.
The E43904 is designed for capacitive sensor mounting in process equipment and supports pressure ratings up to 8 bar. Its operating temperature range is -25 °C to +80 °C.
G1 process connection
M18 × 1 sensor connection
POM construction
8 bar pressure rating
Compact mounting design
Secure sensor installation
Suitable for capacitive sensors
Designed for tanks and vessels
Level detection
Process tanks
Storage vessels
Industrial automation
Capacitive sensor installation
Liquid level monitoring
Process control equipment
| Specification | Details |
|---|---|
| Product code | E43904 |
| Product type | Mounting adapter |
| Sensor connection | M18 × 1 internal thread |
| Process connection | G1 external thread |
| Material | POM |
| Dimensions | G1 / L = 50 mm |
| Pressure rating | 8 bar / 0.8 MPa |
| Ambient temperature | -25 to +80 °C |
| Tightening torque | 5 Nm |
| Weight | 40 g |
| Pack quantity | 1 pc. |
