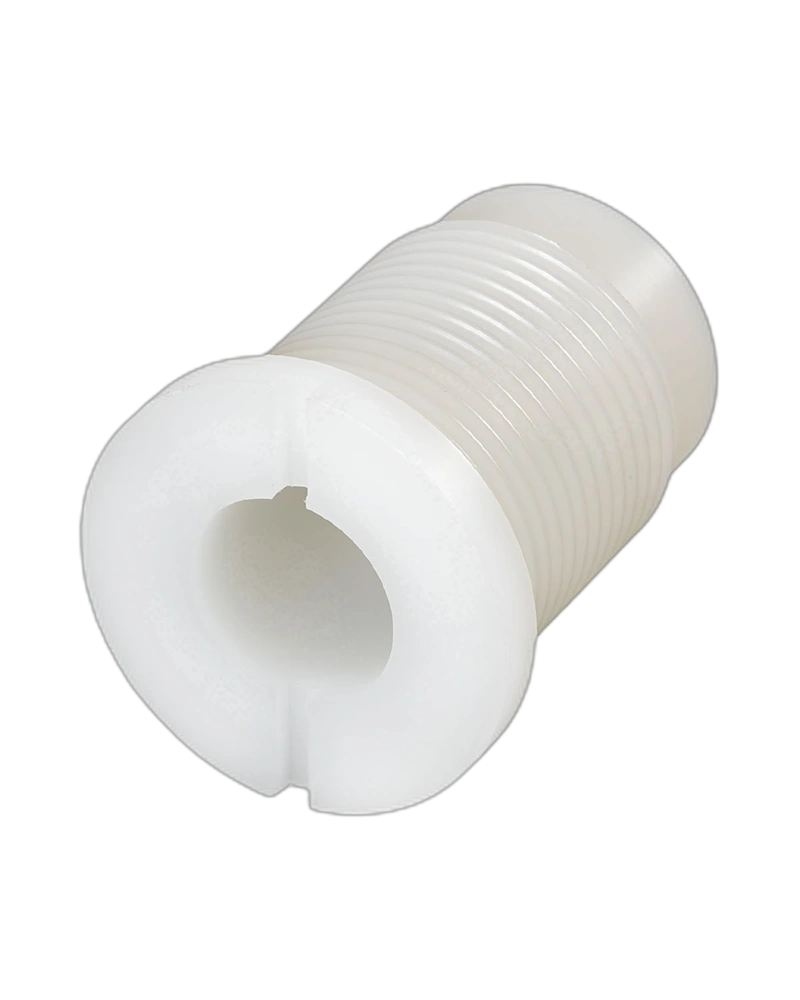

The IFM E43901 is a PVDF mounting adapter designed for compatible M18 × 1 capacitive sensors. It provides a G3/4 process connection for installation in vessels and tanks. Its PVDF construction and extended temperature capability make it suitable for demanding level-detection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43901 provides a reliable connection between compatible M18 × 1 capacitive sensors and G3/4 process connections. It is designed for practical sensor installation in industrial process equipment.
The adapter is manufactured from PVDF, providing a robust material solution for suitable process environments. Its compact construction supports secure and convenient sensor installation.
The adapter features an internal M18 × 1 sensor connection and external G3/4 process connection. This configuration allows compatible sensors to be installed into vessel walls.
The E43901 is suitable for level detection applications where a PVDF mounting adapter is preferred. It has an 8 bar pressure rating and an ambient temperature range of -25 °C to +110 °C.
G3/4 process connection
M18 × 1 sensor connection
PVDF construction
8 bar pressure rating
Operating temperature up to +110 °C
Compact mounting design
Suitable for capacitive sensors
Reliable vessel installation
Level detection
Process vessels
Storage tanks
Industrial automation
Capacitive sensing
Liquid level monitoring
Chemical-compatible installations
| Specification | Details |
|---|---|
| Product code | E43901 |
| Product type | Mounting adapter |
| Sensor connection | M18 × 1 internal thread |
| Process connection | G3/4 external thread |
| Material | PVDF |
| Dimensions | G3/4 / L = 50 mm |
| Pressure rating | 8 bar / 0.8 MPa |
| Ambient temperature | -25 to +110 °C |
| Tightening torque | 5 Nm |
| Weight | 27.6 g |
| Pack quantity | 1 pc. |
