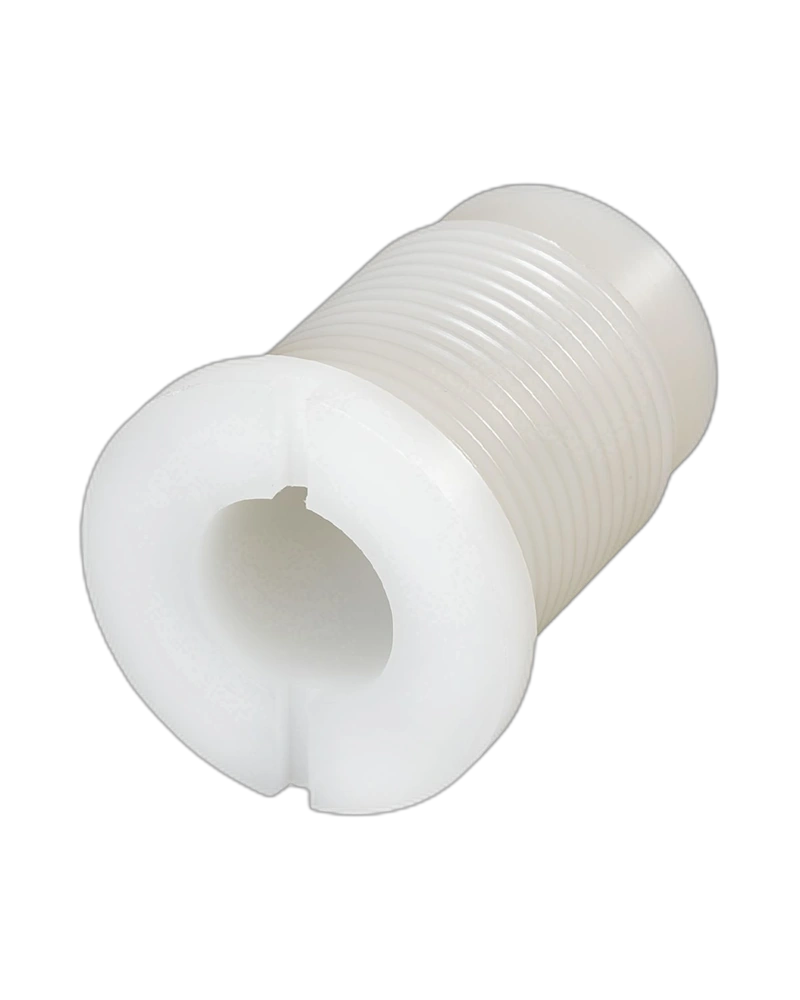

The IFM E43900 is a mounting adapter designed for installing compatible M18 × 1 capacitive sensors into vessels and tanks. It provides a G3/4 process connection and is manufactured from POM for reliable mechanical installation. The adapter supports secure sensor positioning and protection against environmental influences.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43900 provides a convenient mounting interface between an M18 × 1 sensor and a G3/4 process connection. It is designed for level detection applications using compatible capacitive sensors.
The adapter provides an internal M18 × 1 sensor connection and an external G3/4 process connection. This allows compatible sensors to be securely installed into vessel walls.
The adapter is manufactured from POM and is designed for industrial installation environments. Its material and compact construction provide a practical solution for sensor mounting.
The E43900 is suitable for level detection with capacitive sensors in tanks and vessels. It supports pressure-resistant installations and operating temperatures from -25 °C to +80 °C.
G3/4 process connection
M18 × 1 sensor connection
POM construction
8 bar pressure rating
Compact mounting adapter
Secure vessel-wall installation
Suitable for capacitive sensors
Designed for level detection
Level detection
Storage tanks
Process vessels
Industrial automation
Capacitive sensor installation
Liquid level monitoring
| Specification | Details |
|---|---|
| Product code | E43900 |
| Product type | Mounting adapter |
| Sensor connection | M18 × 1 internal thread |
| Process connection | G3/4 external thread |
| Material | POM |
| Dimensions | G3/4 / L = 50 mm |
| Pressure rating | 8 bar / 0.8 MPa |
| Ambient temperature | -25 to +80 °C |
| Tightening torque | 5 Nm |
| Weight | 22 g |
| Pack quantity | 1 pc. |
