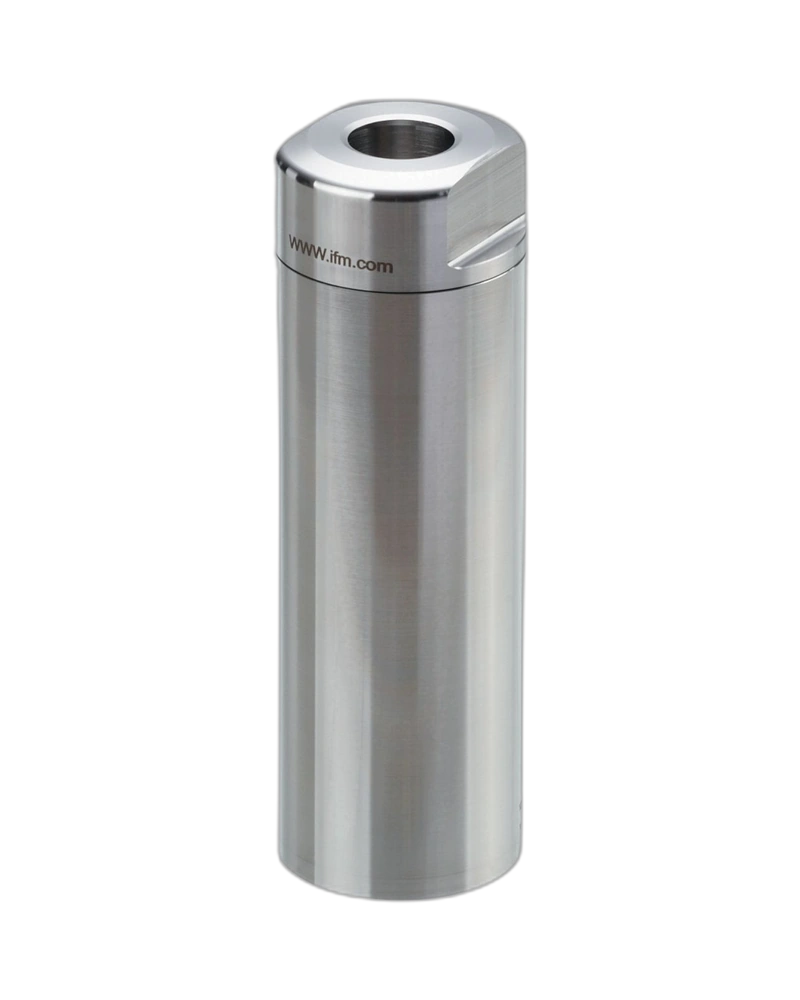

The IFM E43414 is a rear mount adapter designed for installing compatible process sensors from the rear side of tanks or process equipment. Its stainless-steel construction provides reliable mechanical strength for demanding applications. The adapter supports secure sensor installation and high-pressure process connections
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43414 provides a practical solution for rear installation of compatible process sensors. It is designed to simplify sensor mounting where access from the rear side of a vessel or process installation is required.
The adapter incorporates a G1/2-to-G1 adapter arrangement with a Ø38 mm sealing cone. This configuration supports stable and secure sensor installation in compatible process equipment.
The adapter uses stainless steel 316L/1.4435, while the weld-on pipe is made from stainless steel 316Ti. An FKM seal supports reliable sealing at the process connection.
The E43414 is designed for process sensor installation in tanks and similar equipment. Its pressure rating is 50 bar, making it suitable for demanding process applications.
Rear sensor mounting design
G1/2 to G1 adapter
Ø38 mm sealing cone
Stainless steel 316L construction
Stainless steel weld-on pipe
FKM sealing
50 bar pressure rating
Suitable for process equipment
Secure rear installation
Process tanks
Industrial vessels
Hygienic process equipment
Food and beverage systems
Process automation
Sensor mounting
Industrial process control
| Specification | Details |
|---|---|
| Product code | E43414 |
| Product type | Rear mount adapter |
| Design | REAR MOUNT ADAPTER |
| Sensor connection | G1/2 |
| Adapter connection | G1 to G1/2 |
| Sealing cone | Ø38 mm |
| Adapter material | Stainless steel 316L/1.4435 |
| Weld-on pipe | Stainless steel 316Ti |
| Seal | FKM |
| Pressure rating | 50 bar |
| Weight | 534.5 g |
