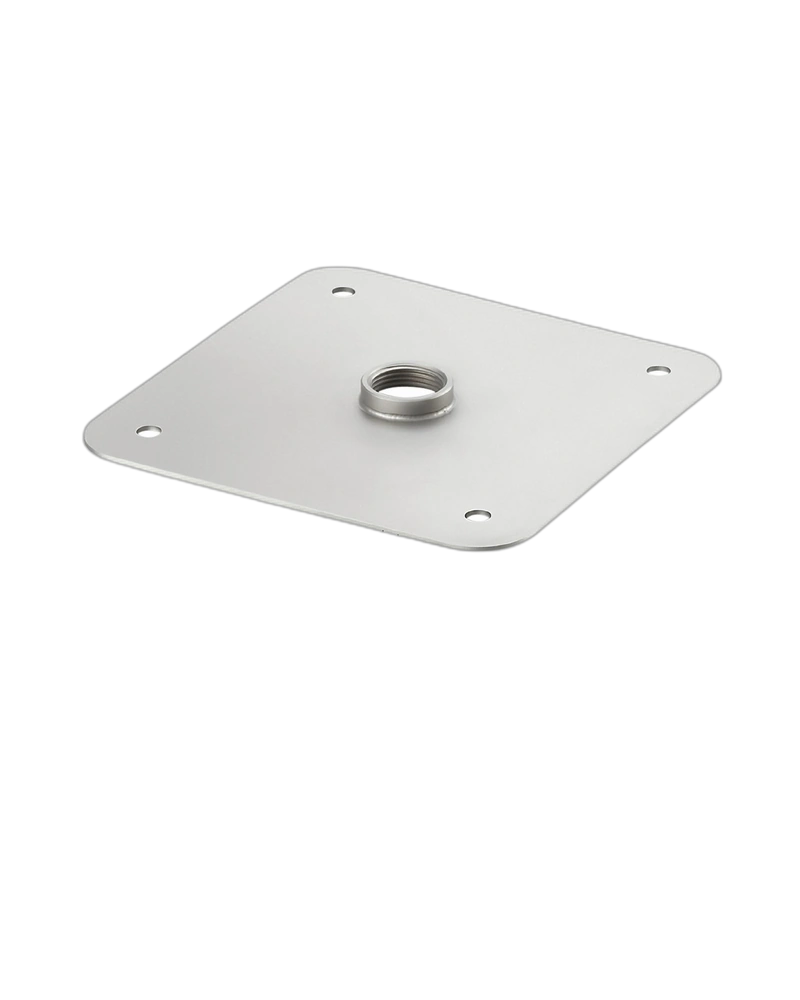

The IFM E43380 is a coupling plate designed for LR level sensors and suitable for tank installations requiring a robust sensor mounting interface. It features a G 3/4 threaded connection and stainless-steel construction. The large flange design provides a stable mounting solution for compatible level-measurement applications
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43380 is a launching plate for IFM LR level sensors. It provides a stable mechanical interface between the sensor and suitable tank or process equipment.
The coupling plate uses a G 3/4 internal threaded connection and a flange with an approximately 180 mm diameter. Its stainless-steel construction supports reliable mechanical mounting.
The plate is manufactured from stainless steel 1.4571/316Ti. It is designed for suitable tank applications with pressure conditions from -1 to 16 bar.
The E43380 is suitable for industrial level measurement where secure installation of LR level sensors is required. Its flange-based construction supports practical integration into compatible vessels and process systems.
Designed for LR level sensors
G 3/4 internal threaded connection
Stainless-steel construction
Material 1.4571 / 316Ti
Approx. 180 mm flange diameter
Suitable for tank installations
Pressure range -1 to 16 bar
Stable sensor mounting interface
Robust industrial construction
Pack quantity of 1 piece
Tank level measurement
Industrial process vessels
Liquid level monitoring
Process automation
Level sensor installation
Industrial instrumentation
| Specification | Details |
|---|---|
| Product code | E43380 |
| Product type | Coupling / launching plate |
| Model | LAUNCHING PLATE G3/4 |
| Sensor type | LR level sensors |
| Thread connection | G 3/4 internal |
| Flange diameter | 180 mm |
| Material | Stainless steel 1.4571 / 316Ti |
| Pressure range | -1 to 16 bar |
| Pack quantity | 1 piece |
