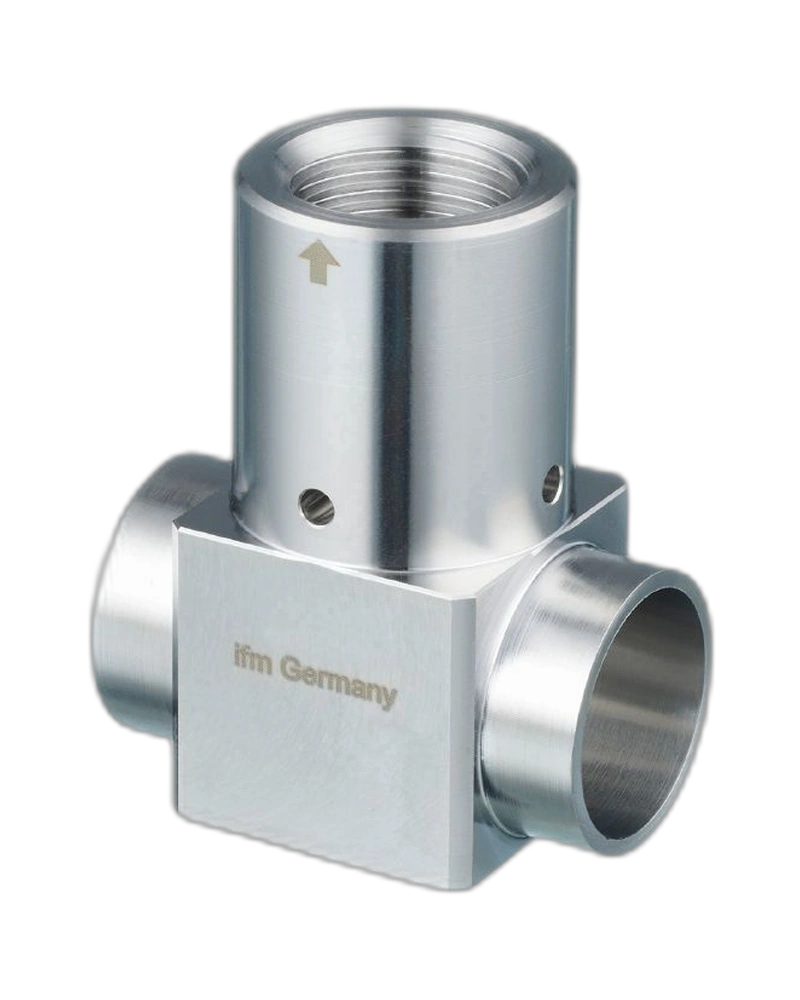

The IFM E43367 T-ADAPT G1/2 G1 (ASME) is a stainless-steel T-piece designed for secure installation of process sensors in industrial and hygienic piping systems. It combines a G 1/2 sensor connection with a 1-inch ASME-compatible process connection. The robust 316L construction provides durability and reliable performance in demanding process environments. Its smooth wetted surfaces support hygienic applications where clean process connections are essential.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43367 provides a reliable connection point for mounting process sensors within compatible piping systems. The G 1/2 sealing-cone connection supports secure sensor installation.
The 1-inch process connection is designed according to ASME-BPE-compatible hygienic process requirements. This makes the adapter suitable for compatible sanitary piping systems.
The wetted parts use stainless steel 1.4435 / 316L. The material provides a durable construction for industrial and hygienic environments.
The product provides a pressure rating of up to 25 bar for the sensor-to-adapter connection, supporting a range of industrial process applications.
G 1/2 sensor connection
1-inch ASME process connection
316L stainless-steel construction
ASME-BPE compatible process connection
Smooth wetted surface
Pressure rating up to 25 bar
Suitable for hygienic applications
Hygienic process systems
Process sensor installation
Food and beverage processing
Industrial piping
Fluid handling equipment
Process automation systems
| Specification | Details |
|---|---|
| Product Code | E43367 |
| Product Type | T-piece |
| Sensor Connection | G 1/2 sealing cone |
| Process Connection | 1 inch |
| Process Dimension | 25.4 × 1.65 mm |
| Standard | DIN 11866 Series C / ASME-BPE |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristic | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 25 bar |
| Weight | 258.4 g |
| Pack Quantity | 1 piece |
