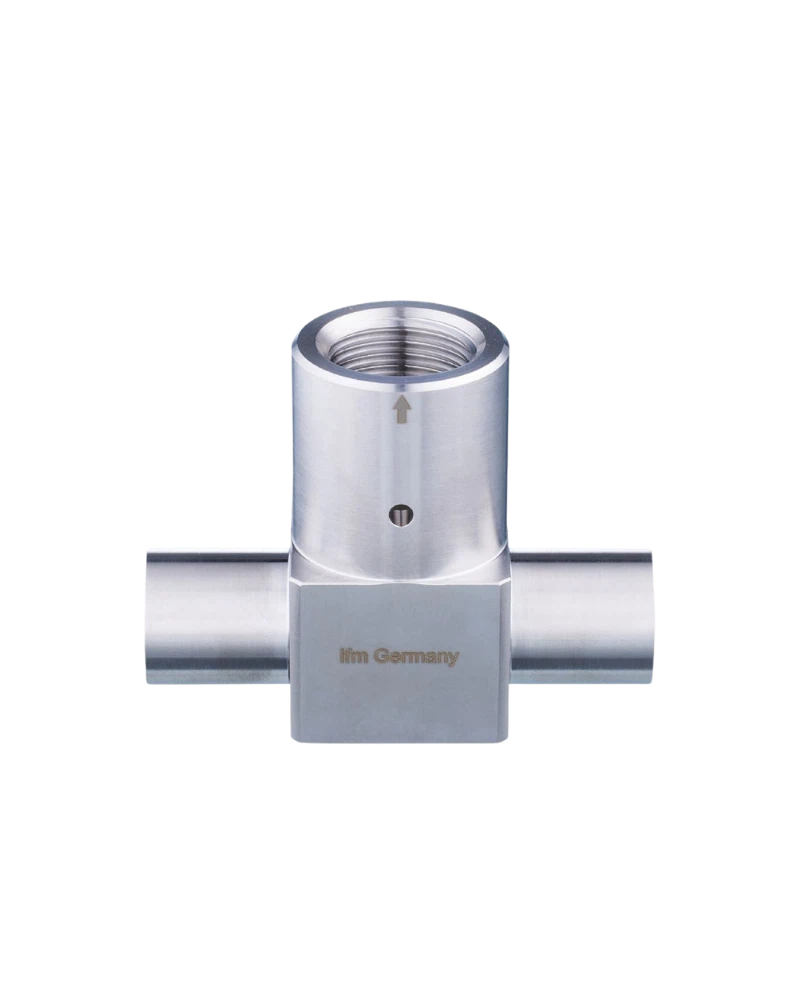

The IFM E43366 T-ADAPT G1/2 DN20 (DIN) is a robust T-piece designed for installing process sensors in compatible DIN piping systems. It features a G 1/2 sealing-cone sensor connection and DN20 process connection according to DIN 11866 Series A. The 316L stainless-steel construction provides durability and reliable process integration. Its leakage-port design makes it suitable for demanding industrial and hygienic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43366 provides a dedicated mounting point for compatible process sensors. Its G 1/2 sealing-cone connection supports secure sensor installation.
The DN20 process connection is designed according to DIN 11866 Series A. This enables integration with suitable hygienic piping arrangements.
The T-piece is manufactured from stainless steel 1.4435 / 316L. The smooth wetted surface characteristics support hygienic process applications.
The integrated leakage port provides an additional means of identifying possible leakage at the connection area, supporting inspection and maintenance.
G 1/2 sealing-cone sensor connection
DN20 DIN process connection
316L stainless-steel construction
DIN 11866 Series A compatibility
Integrated leakage port
Smooth wetted surfaces
Pressure rating up to 25 bar
Process sensor mounting
Hygienic processing equipment
Food and beverage systems
Industrial process monitoring
Fluid handling systems
Process automation equipment
| Specification | Details |
|---|---|
| Product Code | E43366 |
| Product Type | T-piece |
| Sensor Connection | G 1/2 sealing cone |
| Process Connection | DN20 |
| Pipe Dimension | 23 × 1.5 mm |
| Standard | DIN 11866 Series A |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristic | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 25 bar |
| Weight | 282.9 g |
| Leakage Port | Yes |
| Pack Quantity | 1 piece |
