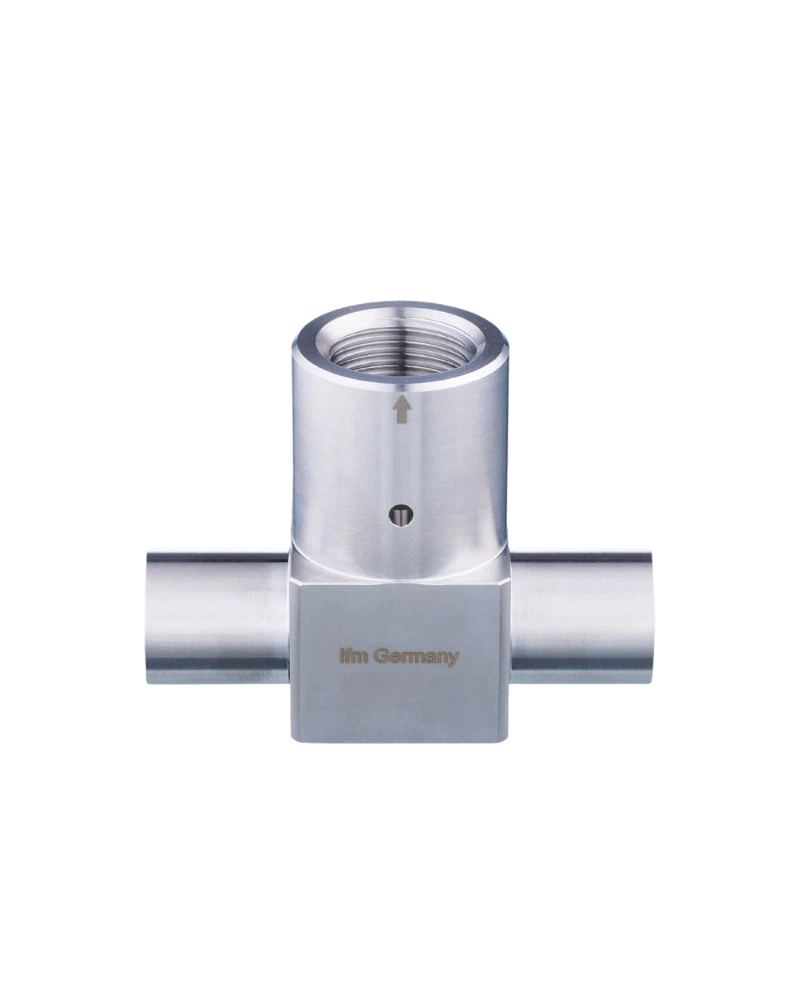

The IFM E43365 T-ADAPT G1/2 DN15 (DIN) is a stainless-steel T-piece designed for secure process sensor installation in compatible DIN piping systems. It features a G 1/2 sealing-cone sensor connection and DN15 process connection according to DIN 11866 Series A. The robust 316L construction provides reliable performance for industrial and hygienic applications. Its integrated leakage port supports convenient monitoring of the connection area.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43365 combines a G 1/2 sensor connection with a DN15 process connection designed according to DIN 11866 Series A.
This configuration provides a standardized connection option for compatible hygienic process piping.
The T-piece is manufactured from 1.4435 / 316L stainless steel with smooth surface characteristics. The construction is suitable for demanding process environments.
The adapter incorporates a leakage port that can help identify leakage around the connection area.
This provides an additional practical feature for inspection and maintenance.
The E43365 has a pressure rating of up to 25 bar / 5 MPa as specified for the sensor-to-adapter connection. Higher pressure ranges may be available depending on the application.
G 1/2 sealing-cone sensor connection
DN15 DIN process connection
316L stainless-steel construction
DIN 11866 Series A compatible
Integrated leakage port
Smooth wetted surface
Designed for hygienic applications
Process sensor installation
Hygienic piping systems
Food and beverage machinery
Process monitoring
Industrial automation
Fluid handling equipment
| Specification | Details |
|---|---|
| Product Code | E43365 |
| Product Type | T-piece |
| Sensor Connection | G 1/2 sealing cone |
| Process Connection | DN15 |
| Pipe Dimension | 19 × 1.5 mm |
| Standard | DIN 11866 Series A |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristic | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 25 bar |
| Weight | 282.3 g |
| Leakage Port | Yes |
| Pack Quantity | 1 piece |
