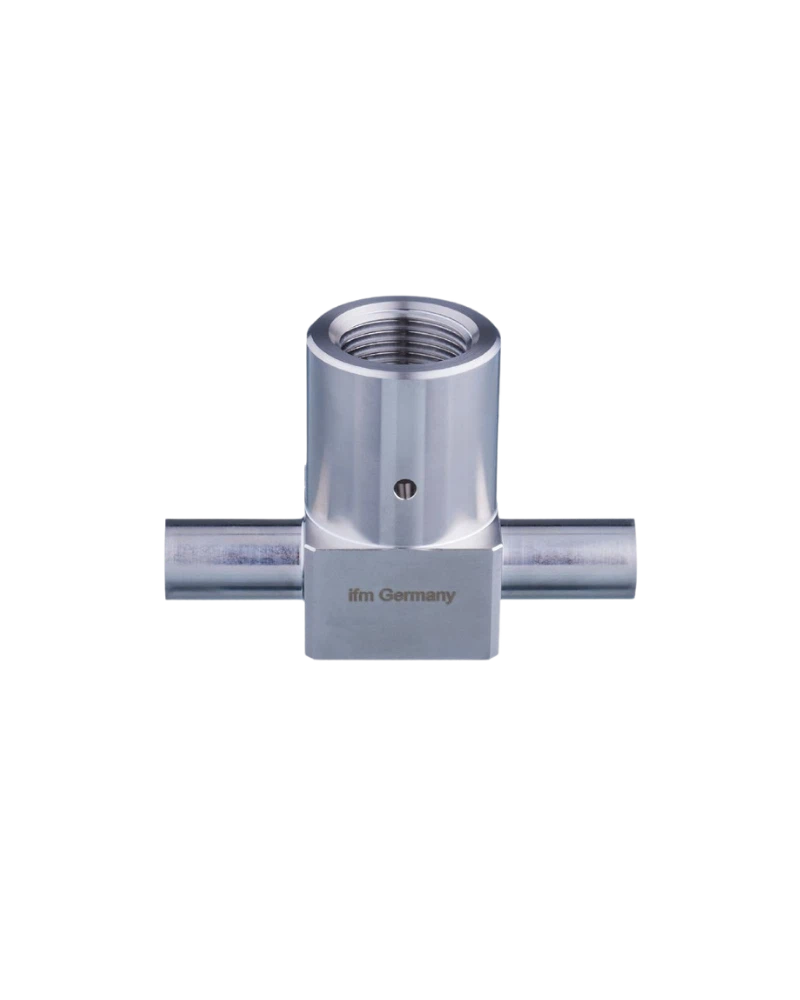

The IFM E43362 T-ADAPT G1/2 DN10 (DIN) is a compact stainless-steel T-piece designed for mounting process sensors in compatible industrial and hygienic piping systems. It combines a G 1/2 sensor connection with a DN10 process connection according to DIN standards. The adapter features a robust 316L stainless-steel construction and a leakage port for additional installation monitoring. It is suitable for reliable process sensor integration where compact and hygienic connections are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43362 provides a compact T-piece arrangement for installing process sensors into suitable piping systems. Its DN10 process connection is designed according to DIN 11866 Series A requirements.
The G 1/2 sealing-cone sensor connection provides a secure interface between the process sensor and adapter.
The product uses 1.4435 / 316L stainless steel for the T-piece construction and wetted areas. This material is well suited to industrial and hygienic process environments.
The smooth surface characteristics help support applications where cleanliness and reliable process connections are important.
The adapter is designed with a leakage port, providing an additional feature for identifying potential leakage conditions around the connection area.
This can support easier inspection and maintenance in suitable process installations.
The E43362 provides a pressure rating of up to 50 bar / 5 MPa for the sensor-to-adapter connection. Application suitability should be confirmed according to the process medium and operating conditions.
316L stainless-steel construction
G 1/2 sealing-cone sensor connection
DN10 DIN process connection
DIN 11866 Series A compatibility
Integrated leakage port
Pressure rating up to 50 bar / 5 MPa
Smooth stainless-steel wetted surface
Process sensor mounting
Hygienic process equipment
Food and beverage machinery
Industrial piping systems
Fluid process monitoring
Process automation installations
| Specification | Details |
|---|---|
| Product Code | E43362 |
| Product Type | T-piece |
| Sensor Connection | G 1/2 sealing cone |
| Process Connection | DN10 |
| Pipe Dimension | 13 × 1.5 mm |
| Standard | DIN 11866 Series A |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristic | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | 262.7 g |
| Leakage Port | Yes |
| Pack Quantity | 1 piece |
