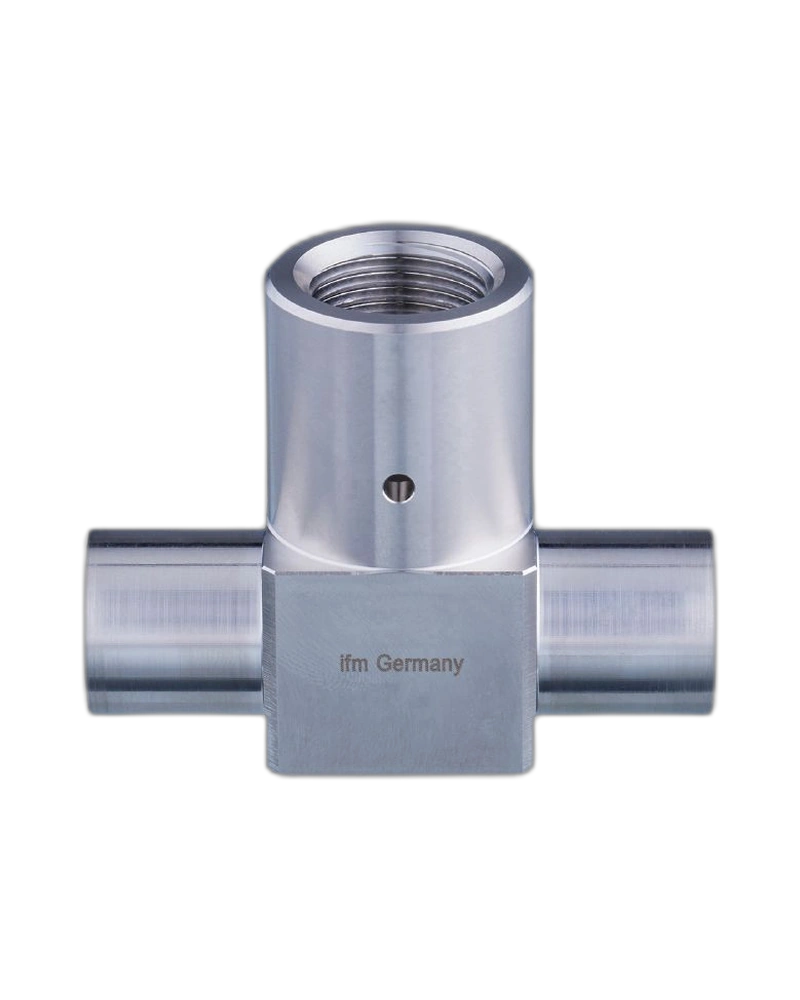

The IFM E43361 T-ADAPT G1/2 DN21.3 (ISO) is a stainless-steel T-piece designed for secure installation of process sensors in hygienic and industrial piping systems. It provides a reliable connection between the sensor and process line while maintaining a robust, pressure-resistant construction. The adapter is manufactured from 316L stainless steel with smooth wetted surfaces for demanding process applications. Its ISO-compatible DN21.3 process connection supports reliable integration into suitable piping installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43361 provides a practical connection arrangement for mounting process sensors directly into compatible pipework. Its G 1/2 sealing-cone sensor connection supports a secure and reliable sensor interface.
The T-piece design allows the sensor to be integrated into the process line without requiring complex additional components. This makes it suitable for professional industrial and hygienic installations.
The adapter is manufactured from stainless steel 1.4435 / 316L for durability and process compatibility. The robust construction is designed for demanding industrial environments where mechanical strength and reliable connections are important.
The wetted surfaces have a surface characteristic of Ra < 0.8 µm / Rz = 4 µm, supporting hygienic process requirements.
The E43361 supports a pressure rating of up to 50 bar / 5 MPa for the sensor-to-adapter connection. This makes it suitable for applications where process pressure resistance is an important consideration.
The actual suitability of the product must always be evaluated against the application medium, operating conditions and installation requirements.
The ISO DN21.3 process connection is suitable for compatible hygienic piping systems. Its stainless-steel construction and smooth wetted surfaces support applications where clean and reliable process connections are required.
Robust 316L stainless-steel construction
G 1/2 sealing-cone sensor connection
DN21.3 process connection
DIN 11866 Series B ISO compatible
Pressure rating up to 50 bar / 5 MPa
Smooth wetted surface with Ra < 0.8 µm
Suitable for industrial and hygienic applications
Process sensor installation
Hygienic piping systems
Food and beverage processing
Industrial process monitoring
Liquid and fluid handling systems
Process automation equipment
| Specification | Details |
|---|---|
| Product Code | E43361 |
| Product Type | T-piece / Process Sensor Adapter |
| Sensor Connection | G 1/2 sealing cone |
| Process Connection | DN21.3 |
| Pipe Dimension | 21.3 × 1.6 mm |
| Standard | DIN 11866, Series B ISO |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristic | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | 275.5 g |
| Pack Quantity | 1 piece |
