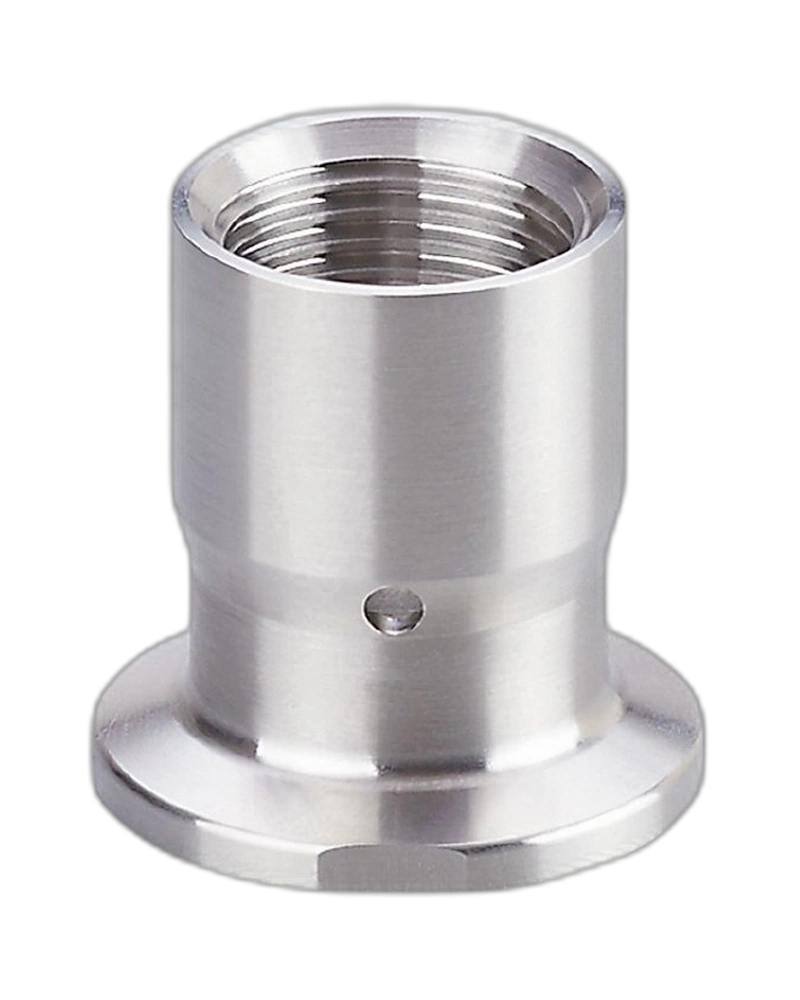

The IFM E43360 Process Adapter Tri-Clamp is designed for hygienic integration of compatible process sensors into process equipment. It features a G1/2 sensor connection and a DN20 Tri-Clamp process connection according to DIN 32676. The adapter is manufactured from stainless steel 316L with a smooth wetted surface finish. Its leakage-port design and high pressure rating make it suitable for demanding hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43360 provides a practical Tri-Clamp interface for installing compatible process sensors into hygienic systems. Its DN20 process connection follows DIN 32676 / ISO 2852 requirements. The adapter incorporates a leakage port to support hygienic installation and monitoring arrangements. This makes it suitable for process equipment where clean and reliable sensor integration is required.
The adapter is manufactured from stainless steel 1.4435 / 316L for demanding process applications. The wetted surfaces feature a smooth finish of Ra < 0.4 µm and Rz 4 µm. This finish is suitable for hygienic process installations where surface quality is important. The adapter is designed to withstand pressures up to 25 bar.
The E43360 is designed for applications requiring hygienic sensor mounting in process tanks and pipelines. Its G1/2 sealing-cone sensor connection provides secure sensor integration. The DN20 Tri-Clamp arrangement enables convenient installation and maintenance within compatible hygienic systems. Its compact stainless steel construction supports dependable long-term process operation.
Tri-Clamp process adapter
G1/2 sensor connection
DN20 process connection
DIN 32676 / ISO 2852 compatible
Stainless steel 316L construction
Integrated leakage port
Smooth wetted surface
Ra < 0.4 µm surface finish
Pressure rating up to 25 bar
Suitable for hygienic applications
Food processing equipment
Beverage processing systems
Hygienic process pipelines
Process tanks
Sanitary liquid handling
Industrial process sensor installation
| Specification | Details |
|---|---|
| Product Code | E43360 |
| Product Type | Process Adapter Tri-Clamp |
| Model | ADAPT G1/2-DN20 DIN32676-A |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | Clamp DN20 |
| Standard | DIN 32676 / ISO 2852 |
| Adapter Diameter | Ø34 mm |
| Material | Stainless steel 1.4435 / 316L |
| Wetted Surface | Ra < 0.4 µm / Rz 4 µm |
| Leakage Port | Yes |
| Pressure Rating | 25 bar / 2.5 MPa |
| Weight | Approximately 117.6 g |
| Pack Quantity | 1 piece |
