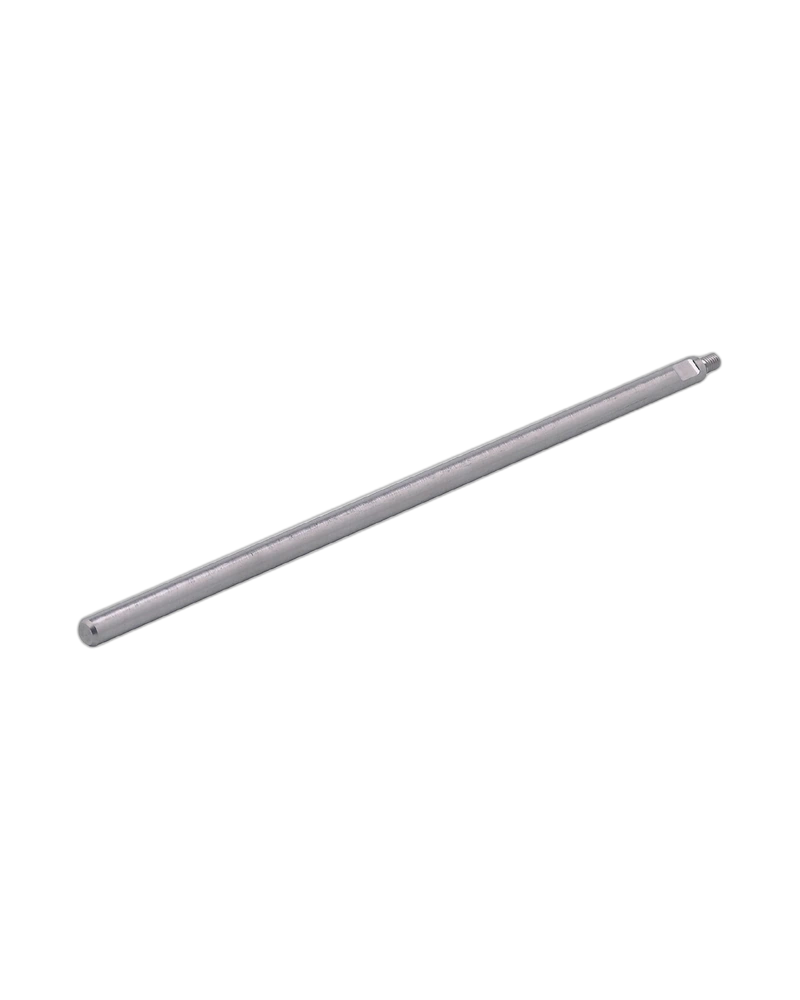

The IFM E43353 LR Probe L2000 is a long 2000 mm stainless steel probe designed for compatible IFM LR level sensors. It is particularly suited to applications requiring extended probe lengths for deeper tanks and vessels. The probe uses stainless steel 316L construction for reliable mechanical performance. Its long configuration supports level measurement in demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43353 provides a 2000 mm probe length for level measurement applications involving deeper vessels. It is designed for compatible LR level sensors and guided-wave radar measurement systems. The extended probe length allows the sensor to reach deeper into tanks and process vessels. This makes it suitable for applications where shorter probes cannot provide the required measurement depth.
The probe is manufactured from stainless steel 1.4404 / 316L for reliable industrial use. Stainless steel construction provides good mechanical strength and corrosion resistance for suitable process environments. The probe weighs approximately 865 g due to its extended length and robust construction. A tightening torque of 4 Nm is specified for installation.
The E43353 is designed for reliable detection of compatible liquid media in larger vessels. It can be used for aqueous liquids, coolant emulsions, cleaning liquids and heavily polluted water where compatible with the sensing system. The probe can be shortened where permitted to accommodate specific container heights. Its long configuration makes it suitable for deep industrial tanks and process vessels.
2000 mm probe length
Designed for IFM LR level sensors
Suitable for deep tanks
Stainless steel 316L construction
Guided-wave radar compatibility
Suitable for aqueous media
Adaptable probe length
4 Nm tightening torque
Designed for industrial level measurement
Deep tank level measurement
Industrial storage vessels
Process liquid monitoring
Water level monitoring
Large process equipment
Automated level control systems
| Specification | Details |
|---|---|
| Product Code | E43353 |
| Product Type | Probe for Level Sensors |
| Model | LR PROBE L2000 |
| Sensor Series | IFM LR |
| Probe Length | 2000 mm |
| Material | Stainless steel 1.4404 / 316L |
| Weight | Approximately 865 g |
| Tightening Torque | 4 Nm |
| Technology | Guided-wave radar |
| Application | Deep-vessel liquid level measurement |
| Pack Quantity | 1 piece |
